高性能測向 ( DF) 天線

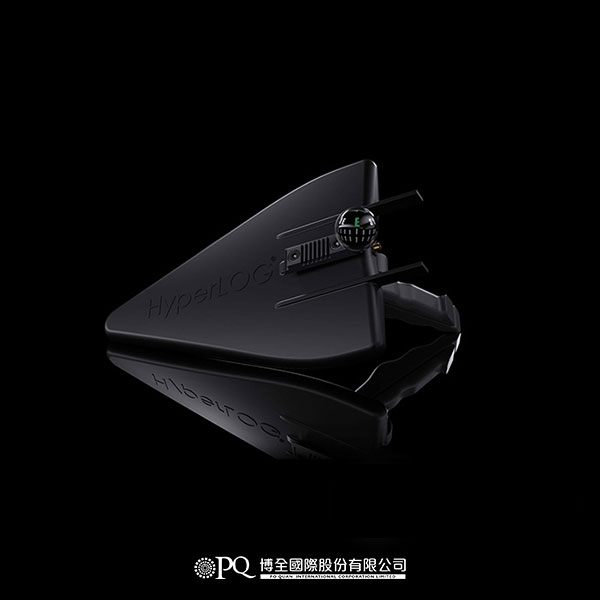

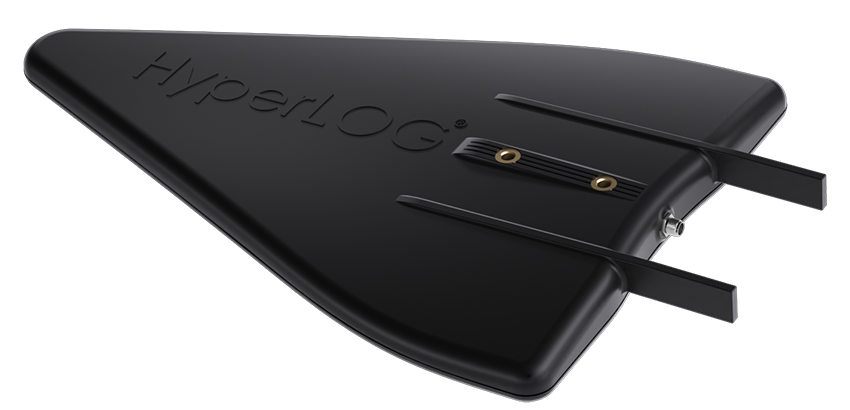

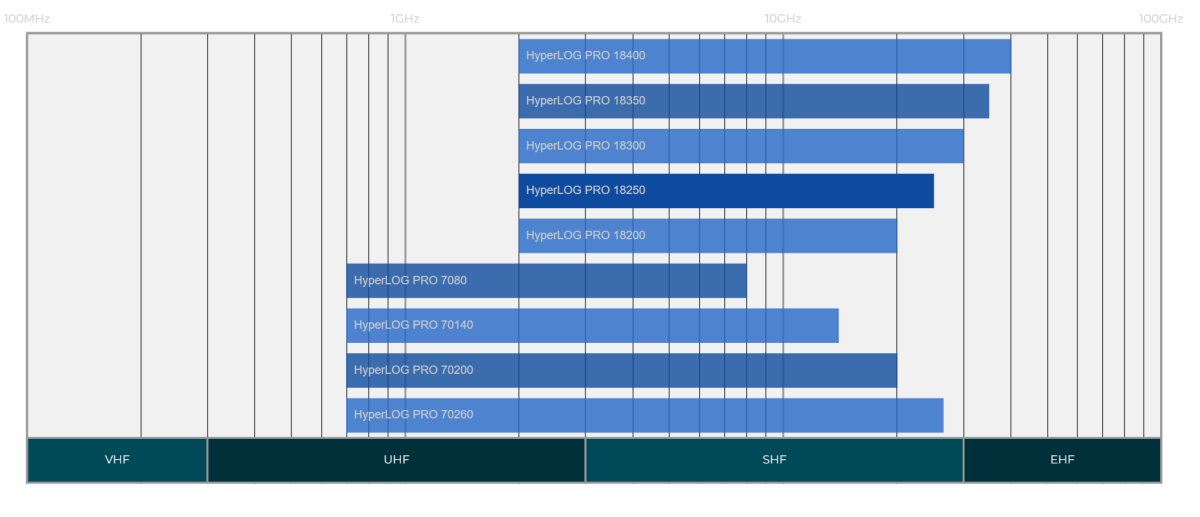

強大的 HyperLOG PRO 系列的定向天線是著名且廣受歡迎的 HyperLOG 天線的進一步發展。 它們在性能、指向性和頻率範圍方面再次進行了重大改進。 HyperLOG PRO 系列支援從 2 GHz 到 40 GHz 的寬頻率範圍。

產品描述

HyperLOG PRO 系列天線的卓越性能數據均可以透有可選購的校正證書（包含大量測量點）得到有力的支持。因此，HyperLOG PRO 天線特別適合作為實驗室的高品質測量天線，也適合作為可攜式測量或測向 ( DF) 天線   。

功能特點

• 最適合與頻譜分析儀一起用於電磁相容性測量。
• 包括高科技天線罩，設計極具現代感、美觀。
• 偏振平面可依需求排列。
• 卓越的正向後向比率。
• 輻射方向圖具有極佳的對稱性。
• 整合的 1/4 英吋三腳架連接。
• 適合移動使用。
• 適合戶外安裝。

The powerful directional antennas of the HyperLOG® PRO series are a further development of the well-known and popular HyperLOG® antennas. They have been significantly improved again in terms of performance, directionality and frequency range. The HyperLOG® PRO series supports a wide frequency range from 2 GHz to 40 GHz.

Description

The excellent performance data of the HyperLOG® PRO antenna series can be impressively underpinned by an optional measurement certificate with a large number of measurement points. The HyperLOG® PRO antennas are therefore predestined in particular as high-quality measurement antennas for the laboratory, but also for portable measurements or as DF antennas.

Features

• Optimal for use with spectrum analyzer for EMC measurements
• Incl. high-tech radome with modern, attractive design
• Polarization planes can be aligned as desired
• Excellent forward/backward ratio
• Excellent symmetry of radiation patterns
• Integrated 1/4" tripod connection
• Suitable for mobile use
• Suitable for outdoor mounting
