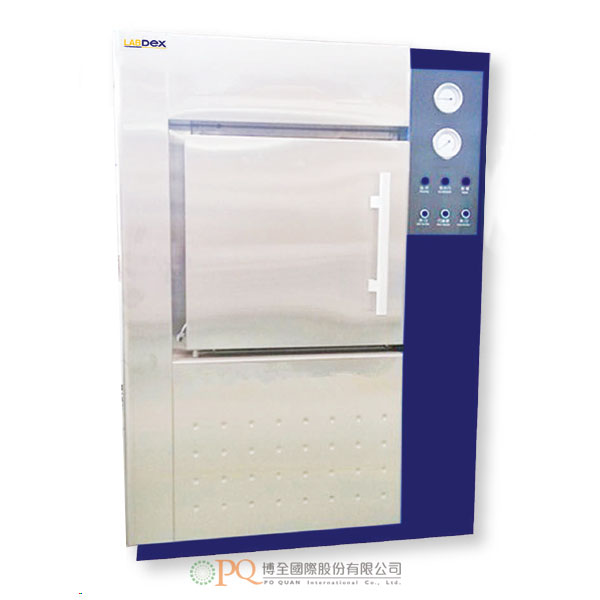

臥式高壓滅菌器

Horizontal Autoclave 型號：詳細型號請見規格列表說明

雙門微處理器控制的自動高壓滅菌器。配備有效消毒溫度為139°C的電動或滑動門。具有自動門鎖等安全功能，可防止升高的壓力，並具有自動關閉功能，可防止電流過載。

加入洽詢

產品特點產品規格 Features Specifications

雙門微處理器控制的自動高壓滅菌器。配備有效消毒溫度為139°C的電動或滑動門。具有自動門鎖等安全功能，可防止升高的壓力，並具有自動關閉功能，可防止電流過載。
- 數位液晶顯示器可監控工作狀態和參數
- 工作壓力：0.22 MPa
- 工作溫度：139℃
- 門鎖功能：直到艙室內壓力降至0.027 MPa以下才能打開門
- 安全的門鎖系統可確保滅菌過程中的安全/防護
- 在低水位警報時自動斷電
- 帶有氣動密封的電動或滑動門可防止滅菌蒸汽流失

	LX160HA		LX161HA		LX162HA	LX163HA	LX164HA		LX165HA		LX166HA
容量 Capacity	250 L		360 L		600 L	800 L	1200 L		1500 L		2000 L
滅菌溫度 Sterilization Temperature	139 °C		139 °C		139 °C	139 °C	139 °C		139 °C		139 °C
滅菌壓力 Sterilization Pressure	0.25MPa		0.25MPa		0.25MPa	0.25MPa	0.25MPa		0.25MPa		0.25MPa
蒸氣壓力和消耗量 Steam Pressure and the Consumption	0.4 - 0.6 MPa / 15 kg		0.4 - 0.6 MPa / 20 kg		0.4 - 0.6 MPa / 30 kg	0.4 - 0.6 MPa / 40 kg	0.4 - 0.6 MPa / 48 kg		0.4 - 0.6 MPa / 50 kg		0.4 - 0.6 MPa / 55 kg
	LX180HA		LX181HA		LX182HA	LX183HA	LX184HA		LX185HA		LX186HA
容量 Capacity	250 L		360 L		600 L	800 L	1200 L		1500 L		2000 L
滅菌溫度 Sterilization Temperature	139 °C		139 °C		139 °C	139 °C	139 °C		139 °C		139 °C
滅菌壓力 Sterilization Pressure	0.25MPa		0.25MPa		0.25MPa	0.25MPa	0.25MPa		0.25MPa		0.25MPa
蒸氣壓力和消耗量 Steam Pressure and the Consumption	0.4 - 0.6 MPa / 15 kg		0.4 - 0.6 MPa / 20 kg		0.4 - 0.6 MPa / 30 kg	0.4 - 0.6 MPa / 40 kg	0.4 - 0.6 MPa / 40 kg		0.4 - 0.6 MPa / 55 kg		0.4 - 0.6 MPa / 65 kg
		LX150HA		LX151HA		LX152HA		LX153HA		LX154HA
容量 Capacity		150 L		200 L		280 L		400 L		500 L
滅菌溫度 Sterilization Temperature		134 °C		134 °C		134 °C		134 °C		134 °C
滅菌壓力 Sterilization Pressure		0.22 MPa		0.22 MPa		0.22 MPa		0.22 MPa		0.22 MPa
計時器範圍 Timer Range		0 - 60 minutes		0 - 60 minutes		0 - 60 minutes		0 - 60 minutes		0 - 60 minutes
			LX170HA			LX170HA			LX170HA
容量 Capacity			150 L			200 L			280 L
滅菌溫度 Sterilization Temperature			134 °C			134 °C			134 °C
滅菌壓力 Sterilization Pressure			0.22 MPa			0.22 MPa			0.22 MPa
計時器範圍 Timer Range			0 - 99 minutes			0 - 99 minutes			0 - 99 minutes
			LX190HA			LX191HA			LX192HA
容量 Capacity			150 L			200 L			280 L
滅菌溫度 Sterilization Temperature			134 °C			134 °C			134 °C
滅菌壓力 Sterilization Pressure			0.22 Mpa			0.22 Mpa			0.22 Mpa
計時器範圍 Timer Range			0 - 60 minutes			0 - 60 minutes			0 - 60 minutes
			LX200HA			LX201HA			LX202HA
容量 Capacity			150 L			200 L			280 L
滅菌溫度 Sterilization Temperature			134 °C			134 °C			134 °C
滅菌壓力 Sterilization Pressure			0.22 Mpa			0.22 Mpa			0.22 Mpa
計時器範圍 Timer Range			0 - 99 minutes			0 - 99 minutes			0 - 99 minutes
		LX110HA		LX111HA		LX112HA		LX113HA		LX114HA
容量 Capacity		60 L		80 L		120L		140L		180L
滅菌溫度Sterilization Temperature		0.26 mPa		0.26 mPa		0.26 mPa		0.26 mPa		0.26 mPa
滅菌壓力 Sterilization Pressure		150 °C		150 °C		150 °C		150 °C		150 °C
計時器範圍 Timer Range		0.23 mPa		0.23 mPa		0.23 mPa		0.23 mPa		0.23 mPa
		LX140HA		LX141HA		LX142HA		LX143HA		LX144HA
容量 Capacity		60 L		80L		120L		140L		180L
設計壓力 Designed pressure		0.26 mPa		0.26 mPa		0.26 mPa		0.26 mPa		0.26 mPa
設計溫度 Designed temperature		150 °C		150 °C		150 °C		150 °C		150 °C
最大工作壓力 Maximum working pressure		0.23 mPa		0.23 mPa		0.23 mPa		0.23 mPa		0.23 mPa
		LX210HA		LX211HA		LX212HA		LX213HA		LX167HA
體積 Volume		100 L		200 L		200 L		300 L		120 L
艙室尺寸 Chamber volume		Ø440 x 670 mm		Ø440 x 1000 mm		Ø515 x 1000 mm		Ø600 x 1080 mm
工作壓力 Working pressure		0.22 Mpa		0.22 Mpa		0.22 Mpa		0.22 Mpa		0~0.25Mpa
工作溫度Working temperature range		100℃~134℃		100℃~134℃		100℃~134℃		100℃~134℃		105℃~138℃ adjustable

Horizontal laboratory autoclave is a double door microprocessor controlled automatic autoclave. Equipped with motorized or sliding door with an effective sterilization temperature of 139 °C. With safety features like auto door lock against raised safety pressure and automatic shutoff preventing overload of current.
- Digital LCD display to monitor working status and parameters
- Working pressure : 0.22 MPa
- Working temperature : 139°C
- Door lock feature : Door cannot be opened till the pressure inside the chamber doesn’t fall to 0.027 MPa
- Safe door lock system ensuring safety / protection during sterilization
- Automatic power cut off with alarm with low water levels indication
- Motorized or sliding door with pneumatic sealing to prevent loss of sterile steam

	LX160HA		LX161HA		LX162HA	LX163HA	LX164HA		LX165HA		LX166HA
容量 Capacity	250 L		360 L		600 L	800 L	1200 L		1500 L		2000 L
滅菌溫度 Sterilization Temperature	139 °C		139 °C		139 °C	139 °C	139 °C		139 °C		139 °C
滅菌壓力 Sterilization Pressure	0.25MPa		0.25MPa		0.25MPa	0.25MPa	0.25MPa		0.25MPa		0.25MPa
蒸氣壓力和消耗量 Steam Pressure and the Consumption	0.4 - 0.6 MPa / 15 kg		0.4 - 0.6 MPa / 20 kg		0.4 - 0.6 MPa / 30 kg	0.4 - 0.6 MPa / 40 kg	0.4 - 0.6 MPa / 48 kg		0.4 - 0.6 MPa / 50 kg		0.4 - 0.6 MPa / 55 kg
	LX180HA		LX181HA		LX182HA	LX183HA	LX184HA		LX185HA		LX186HA
容量 Capacity	250 L		360 L		600 L	800 L	1200 L		1500 L		2000 L
滅菌溫度 Sterilization Temperature	139 °C		139 °C		139 °C	139 °C	139 °C		139 °C		139 °C
滅菌壓力 Sterilization Pressure	0.25MPa		0.25MPa		0.25MPa	0.25MPa	0.25MPa		0.25MPa		0.25MPa
蒸氣壓力和消耗量 Steam Pressure and the Consumption	0.4 - 0.6 MPa / 15 kg		0.4 - 0.6 MPa / 20 kg		0.4 - 0.6 MPa / 30 kg	0.4 - 0.6 MPa / 40 kg	0.4 - 0.6 MPa / 40 kg		0.4 - 0.6 MPa / 55 kg		0.4 - 0.6 MPa / 65 kg
		LX150HA		LX151HA		LX152HA		LX153HA		LX154HA
容量 Capacity		150 L		200 L		280 L		400 L		500 L
滅菌溫度 Sterilization Temperature		134 °C		134 °C		134 °C		134 °C		134 °C
滅菌壓力 Sterilization Pressure		0.22 MPa		0.22 MPa		0.22 MPa		0.22 MPa		0.22 MPa
計時器範圍 Timer Range		0 - 60 minutes		0 - 60 minutes		0 - 60 minutes		0 - 60 minutes		0 - 60 minutes
			LX170HA			LX170HA			LX170HA
容量 Capacity			150 L			200 L			280 L
滅菌溫度 Sterilization Temperature			134 °C			134 °C			134 °C
滅菌壓力 Sterilization Pressure			0.22 MPa			0.22 MPa			0.22 MPa
計時器範圍 Timer Range			0 - 99 minutes			0 - 99 minutes			0 - 99 minutes
			LX190HA			LX191HA			LX192HA
容量 Capacity			150 L			200 L			280 L
滅菌溫度 Sterilization Temperature			134 °C			134 °C			134 °C
滅菌壓力 Sterilization Pressure			0.22 Mpa			0.22 Mpa			0.22 Mpa
計時器範圍 Timer Range			0 - 60 minutes			0 - 60 minutes			0 - 60 minutes
			LX200HA			LX201HA			LX202HA
容量 Capacity			150 L			200 L			280 L
滅菌溫度 Sterilization Temperature			134 °C			134 °C			134 °C
滅菌壓力 Sterilization Pressure			0.22 Mpa			0.22 Mpa			0.22 Mpa
計時器範圍 Timer Range			0 - 99 minutes			0 - 99 minutes			0 - 99 minutes
		LX110HA		LX111HA		LX112HA		LX113HA		LX114HA
容量 Capacity		60 L		80 L		120L		140L		180L
滅菌溫度Sterilization Temperature		0.26 mPa		0.26 mPa		0.26 mPa		0.26 mPa		0.26 mPa
滅菌壓力 Sterilization Pressure		150 °C		150 °C		150 °C		150 °C		150 °C
計時器範圍 Timer Range		0.23 mPa		0.23 mPa		0.23 mPa		0.23 mPa		0.23 mPa
		LX140HA		LX141HA		LX142HA		LX143HA		LX144HA
容量 Capacity		60 L		80L		120L		140L		180L
設計壓力 Designed pressure		0.26 mPa		0.26 mPa		0.26 mPa		0.26 mPa		0.26 mPa
設計溫度 Designed temperature		150 °C		150 °C		150 °C		150 °C		150 °C
最大工作壓力 Maximum working pressure		0.23 mPa		0.23 mPa		0.23 mPa		0.23 mPa		0.23 mPa
		LX210HA		LX211HA		LX212HA		LX213HA		LX167HA
體積 Volume		100 L		200 L		200 L		300 L		120 L
艙室尺寸 Chamber volume		Ø440 x 670 mm		Ø440 x 1000 mm		Ø515 x 1000 mm		Ø600 x 1080 mm
工作壓力 Working pressure		0.22 Mpa		0.22 Mpa		0.22 Mpa		0.22 Mpa		0~0.25Mpa
工作溫度Working temperature range		100℃~134℃		100℃~134℃		100℃~134℃		100℃~134℃		105℃~138℃ adjustable
