高性能模組化測量系統

• 頻率範圍寬廣 3.10-5 .. 4.107 ，包括用於鑑定介電弛豫、電化學和高阻抗效應的低頻。
• 超寬阻抗範圍 10-3 .. 1015 Ω  (18 decades) ，涵蓋從導體到最佳絕緣體的範圍。
• 超寬容量範圍 10-15 .. 1 F ，可寬頻測量小至 1 fF 的最小容量。
• 高相位  2.10-3 °和損耗因數 tan(δ) 絕對精度 3.10-5  ，適用於低損耗介電材料和絕緣體寬頻特性。
• 支援一系列測試介面，用於具有特殊功能的客製化應用程序。
• 結合所有測試介面，支援非線性介電、電導和阻抗譜或增益相位測量。
• 透過 GPIB 連接埠支援高速測量速率，最高可達每秒 600 個阻抗測量點，可透過主機選購 F 線上監測 5 ms範圍內的時間變化過程。
• 測試介面概念具有自適應系統功能，透過進階 GPIB 命令進行單一連接埠操作，可在自己的程式或現有測量設定中簡單直接地實施。
• 使用者可自動進行自我校正和診斷，消除長期內部漂移並驗證功能。
• 高達 40 MHz 的精密數位頻率響應分析儀，用於雙通道增益相位測量，相位解析為 0.001°，振幅解析為 10-5。 操作類似於寬頻鎖相放大器，具有雙通道、更高的精度和頻率範圍。
• 可選控制軟體 WinDETA 或 DETACHEM，用於校正、操作、數據評估、2D和 3D圖形顯示，包括非線性光譜分析。

This system features high performance dielectric, conductivity, electrochemical, impedance and gain phase measurements in the frequency domain. It is our latest, most powerful and flexible system and recommend for new instrument designs.

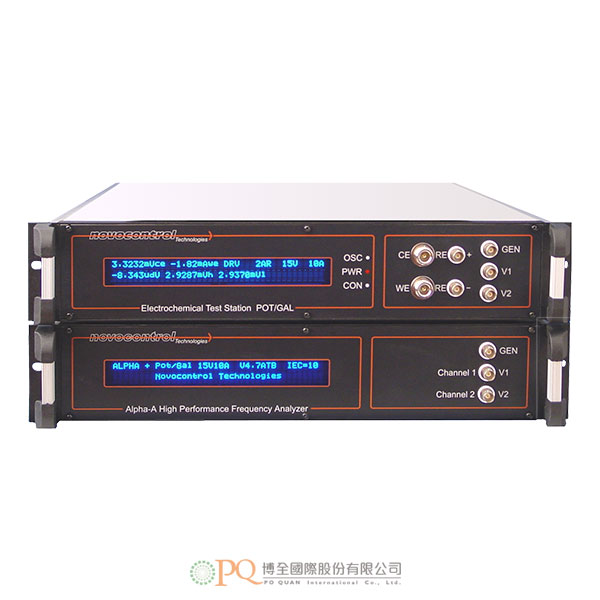

The system is modular and based on an Alpha-A mainframe unit which usually is combined with one or more test interfaces optimized for special functionality. All test interfaces for impedance measurement offer in addition high general purpose performance like highest accuracy and ultra wide impedance and frequency range.

This makes the Alpha-A system an unique and easy to use instrument with exceptional overall performance which suits in addition many special requirements like e.g. 4 electrode high impedance, high voltage, high current measurements  and potentiostat, galvanostat functions for electrochemical impedance spectroscopy EIS.

The Alpha-A family covers 18 orders of magnitude impedance range (16 orders for each impedance test interface), 12.5 orders of magnitude frequency range and 2m° basic phase accuracy.

This combination makes the Alpha-A system a powerful tool which sets the pace for electric frequency domain analysis instrumentation. As a result, permittivity, conductivity and impedance of nearly all materials or components including special functions can be measured broadband and over a wide temperature range without changing sample geometry or sample cells.

A sub range of the Alpha-A system functionality is also available by the Alpha and Beta single unit analyzers which are predecessors of the Alpha-A series and are still available as an economical alternative. A more detailed comparison of the three Analyzer series can be found here.


Features of Alpha-A Mainframe + Test Interface Family

• Broad frequency range 3.10-5 .. 4.107 Hz including low frequencies for characterization of dielectric relaxations, electrochemical and high impedance effects.
• Ultra wide impedance range 10-3 .. 1015 Ω (18 decades) covers range from conductors to best isolators.
• Ultra wide capacity range 10-15 .. 1 F allows broadband measurement of smallest capacities down to 1 fF.
• High phase 2.10-3 ° and loss factor tan(δ) absolute accuracy  3.10-5 for low loss dielectric materials and isolators broadband characterization.
• Supports a series of test interfaces for customized applications with special functionality.
• Supports non linear Dielectric, Conductivity and Impedance Spectroscopy or gain phase measurements in combination with all test interfaces.
• Supports high speed measurements rates up to 600 impedance measurement points per second via the GPIB port for online monitoring of time variant processes in the 5 ms range by mainframe option F.
• Test interface concept with adaptive system functionality and single port operation by high level GPIB commands for easy and straightforward implementation in own programs or existing measurement set-ups.
• Automatic self calibration and diagnosis by user cancels out long term internal drift and verifies functionality.
• Precision digital frequency response analyzer up to 40 MHz for two channel gain phase measurements with 0.001° phase - and 10-5 in amplitude resolution included. Operates like a broadband lock-in amplifier with two channels, extended accuracy and frequency range.
• Optional control WinDETA or DETACHEM software for turnkey calibration, operation, data evaluation, 2- and 3- dimensional graphical representation including non linear spectroscopy.
