FASTEC > 高速數位攝影機
FASTEC_HS_PQ

高速數位攝影機

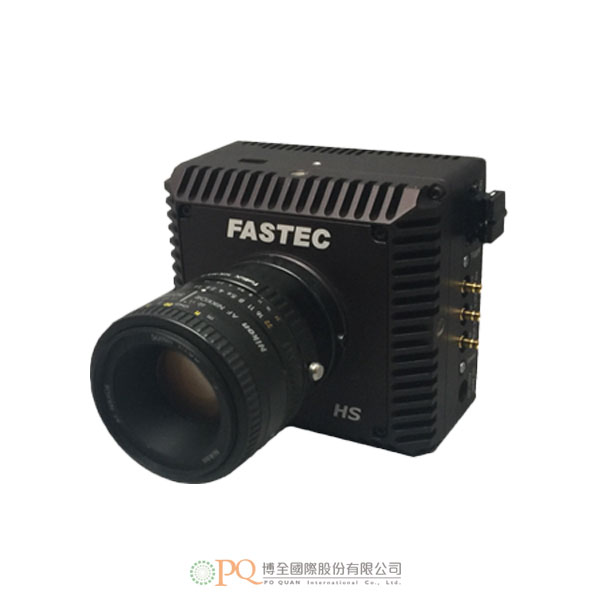

High-Speed Digital Cameras 型號：HS7
高速度高解析Full HD（1920 x 1080）@2500fps，可讓HS7輕易捕捉到詳細的場景，進行令人驚嘆的慢動作播放。
具備Binning模式 : 這對影像解析度要求不高，而又有高幀速要求的應用，可採用此技術。
加入洽詢
產品特點 產品規格 Features Specifications
    • 提供便於使用者簡化工作流程的系統架構。
    • 帶光學介面的攝影機所使用是行業標準光纖電纜以提供高頻寬傳輸。
    • 可擴展的Linux 相機控制器，兼容標準顯示器和輸入設備，這包括藍牙和WiFi。
    • 在相機控制器上執行自己的應用程序。
    • 通過USB3.2或Thunderbolt 4通訊介面，藉此提升對於高速大容量的資料存儲能力。

    應用影片：

  • 技術規格

    Sensor 10-bit 1920 x 1080 CMOS with 10mm pixels
    Minimum Exposure 1 microsecond
    Light Sensitivity ISO 4800 (mono)
    Interconnect 12 Channel Type B Fiber Optic patch cable with MPO connectors
    Calibration Shutter Built-in mechanical shutter for black-level calibration
    Image Memory 8GB, 16GB, or 32GB (in camera)
    Mass Storage Up to 2TB NVMe SSD (in camera)*
    File Formats Stacks – BMP, DNG (color), JPEG, TIFF (processed or raw) Video – AVI, CAP (raw), MP4
    Lens Mount Micro Four Thirds (MFT) Standard; C, F, EF, PL, and more via adapters
    Lens Control Software control: Focus, Aperture, Zoom (on MFT only)
    Control Software FasMotion native on Controller, with network support:
    FasMotion (Windows/MacOS/Linux application) on networked PC
    Marker & Metadata Image window playback time line, FasMotion o-scope mode, XML file
    External I/O Ports 3 configurable ports: Trigger In/Out, Sync In/Out, Arm In/Out, or General Purpose In @ 3.3v LVTTL, or 5v TTL, or switch closure
    Construction Anodized machined aluminum housing
    Power Camera: 12v 30w; Controller 19v 90w
    Environment +5°C to +40°C
    Size and Weight 114mm (4.5”) W x 114mm (4.5”) H x 76mm (3”) D.  1 Kg (2.2 lbs.)



    記錄速率和可記錄時間範例

    Resolution Max Frame Rate 8 or 10 bits
    (Normal mode)    		 Record Time
    8 bits to 32GB memory    		 Max Frame Rate 8 bits
    (Streaming to SSD)    		 Record Time 8 bits streaming to
    1TB SSD*
    1920 x 1080 (HD: 1080p) 2500 fps 6.6 sec 723 fps 11.2 min
    1280 x 1024 (SXGA) 2634 fps 9.8 sec 1144 fps 11.2 min
    1280 x 720 (HD: 720p) 3726fps 9.8 sec 1627 fps 11.2 min
    1024 x 768 (XGA) 3497 fps 12.4 sec 1907 fps 11.2 min
    800 x 600 (SVGA) 4455 fps 16 sec 3124 fps 11.2 min
    800 x 450 5921 fps 16 sec 4184 fps 11.2 min
    640 X 480 (VGA) 5537 fps 20.1 sec 4881 fps 11.2 min
    512 X 384 6874fps 25.2 sec 5000 fps 17.3 min
    512 x 256 10.136 fps 25.8 sec 5000 fps 26 min
    412 x 212 12.000 fps 32.6 sec 5000 fps 39 min
    220 x 64 35,168 fps** 51.3 sec 5000 fps 2 hours

  • Full high-definition (1920 x 1080) @ 2500fps,the HS7 captures detailed scenes for breathtaking slow-motion playback.
    Use lower resolutions for technical work at much higher frame rates.

    Product Features

    • Advanced architecture for enhanced workflow.
    • Camera with optical interface affords high-bandwidth transport using industry-standard fiber cabling.
    • Extensible Linux Camera Controller, compatible with standard displays and input devices, including Bluetooth and WiFi.
    • Run your own applications on the camera controller.
    • Attach high-speed high-capacity mass storage via USB3.2 or Thunderbolt 4 interfaces.



  • Technical Specifications

    Sensor 10-bit 1920 x 1080 CMOS with 10mm pixels
    Minimum Exposure 1 microsecond
    Light Sensitivity ISO 4800 (mono)
    Interconnect 12 Channel Type B Fiber Optic patch cable with MPO connectors
    Calibration Shutter Built-in mechanical shutter for black-level calibration
    Image Memory 8GB, 16GB, or 32GB (in camera)
    Mass Storage Up to 2TB NVMe SSD (in camera)*
    File Formats Stacks – BMP, DNG (color), JPEG, TIFF (processed or raw) Video – AVI, CAP (raw), MP4
    Lens Mount Micro Four Thirds (MFT) Standard; C, F, EF, PL, and more via adapters
    Lens Control Software control: Focus, Aperture, Zoom (on MFT only)
    Control Software FasMotion native on Controller, with network support:
    FasMotion (Windows/MacOS/Linux application) on networked PC
    Marker & Metadata Image window playback time line, FasMotion o-scope mode, XML file
    External I/O Ports 3 configurable ports: Trigger In/Out, Sync In/Out, Arm In/Out, or General Purpose In @ 3.3v LVTTL, or 5v TTL, or switch closure
    Construction Anodized machined aluminum housing
    Power Camera: 12v 30w; Controller 19v 90w
    Environment +5°C to +40°C
    Size and Weight 114mm (4.5”) W x 114mm (4.5”) H x 76mm (3”) D.  1 Kg (2.2 lbs.)



    Example Record Rates and Times

    Resolution Max Frame Rate 8 or 10 bits
    (Normal mode)    		 Record Time
    8 bits to 32GB memory    		 Max Frame Rate 8 bits
    (Streaming to SSD)    		 Record Time 8 bits streaming to
    1TB SSD*
    1920 x 1080 (HD: 1080p) 2500 fps 6.6 sec 723 fps 11.2 min
    1280 x 1024 (SXGA) 2634 fps 9.8 sec 1144 fps 11.2 min
    1280 x 720 (HD: 720p) 3726fps 9.8 sec 1627 fps 11.2 min
    1024 x 768 (XGA) 3497 fps 12.4 sec 1907 fps 11.2 min
    800 x 600 (SVGA) 4455 fps 16 sec 3124 fps 11.2 min
    800 x 450 5921 fps 16 sec 4184 fps 11.2 min
    640 X 480 (VGA) 5537 fps 20.1 sec 4881 fps 11.2 min
    512 X 384 6874fps 25.2 sec 5000 fps 17.3 min
    512 x 256 10.136 fps 25.8 sec 5000 fps 26 min
    412 x 212 12.000 fps 32.6 sec 5000 fps 39 min
    220 x 64 35,168 fps** 51.3 sec 5000 fps 2 hours
