高壓釜

HPA 1500™ 高壓釜是一種標準化儀器，用於測量高能量化學物質的特定能量，以便根據《聯合國危險貨物運輸建議書》對其進行危險性分類。

應用

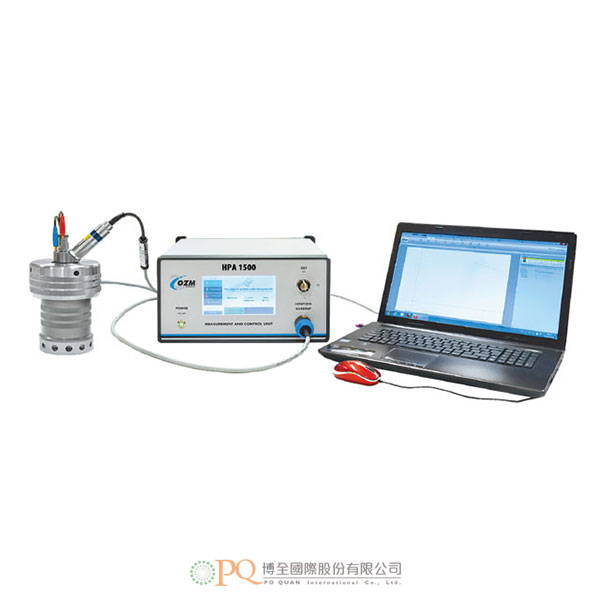

輕巧型的實驗室儀器，包含測試容器、壓力感測器、內建精確脈衝功率點火源的控制單元、感測器調節器、資料擷取單元和整套軟體。

測定比能量（被測物質釋放的能量）是對高能量化學品進行危害評估的重要參數，以確保其在化學工業中的安全生產、處理和運輸，所得的結果（最大壓力、壓力上升時間、燃燒速率等）通常用於對高能量材料進行安全分類。

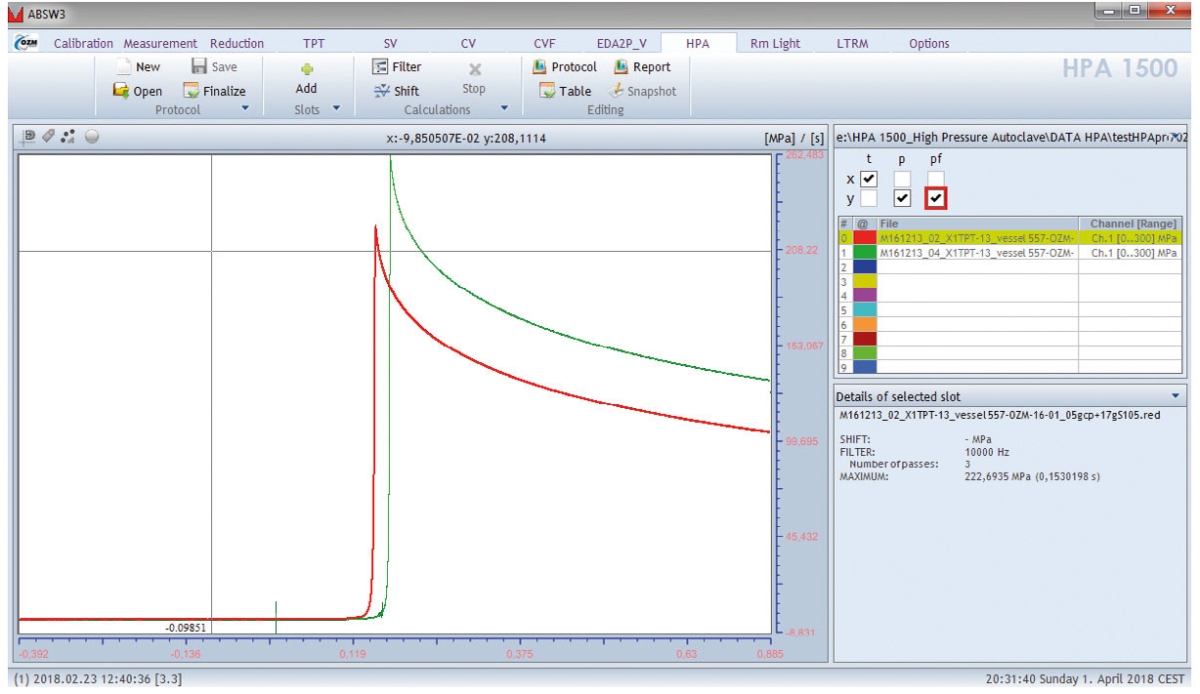

HPA 軟體螢幕截圖

優勢和特點

• 具有電壓和電流回饋的點火源可產生精確的恒定功率脈衝。
• 容積為 96 cm3的標準化不鏽鋼測試容器，工作壓力最高可達 2,000 bar。
• 兩種不同的控制裝置，設計用於使用不同的壓力感測器。
• 測試結果：壓力與時間曲線、最大壓力和比能量。
• 透過 TPT-SW 軟體實現簡單的操作、控制、測量、校正和數據評估。

控制單元有兩種版本可供選擇：

合規

UN Recommendation on the Transport of Dangerous Goods, Manual of Tests and Criteria
[Test F.5 High Pressure Autoclave]

 The HPA 1500™ High Pressure Autoclave is a standardized instrument designed to measure a specific energy of energetic chemical substances for their hazard classification according to the UN Recommendations on the Transport of Dangerous Goods.

APPLICATIONS

Compact laboratory instrument containing testing vessel, pressure transducer, a control unit with in-built precise pulse power ignition source, transducer conditioner, data acquisition unit and all-inclusive software.
Determination of specific energy (amount of energy released by the tested substance) is an important parameter for hazard assessment of energetic chemicals for their safe production, handling and transportation in chemical industry.
Obtained results (max. pressure, pressure rise time, burning rate, etc.) usually serve for the safety classification of energetic materials.

HPA software screenshot

 ADVANTAGES & FEATURES

• Ignition source with voltage and current feedback generates a precise constant power impulse
• Standardized 96 cm3 volume stainless steel testing vessel with working pressure up to 2,000 bar
• Two different control units designed for using different pressure transducers
• Test results: pressure vs. time profile, maximum pressure and specific energy
• Simple operation, control, measurement, calibration and data evaluation by TPT-SW software

 There are two versions of the control unit available:

COMPLIANCE
UN Recommendation on the Transport of Dangerous Goods, Manual of Tests and Criteria
[Test F.5 High Pressure Autoclave]
