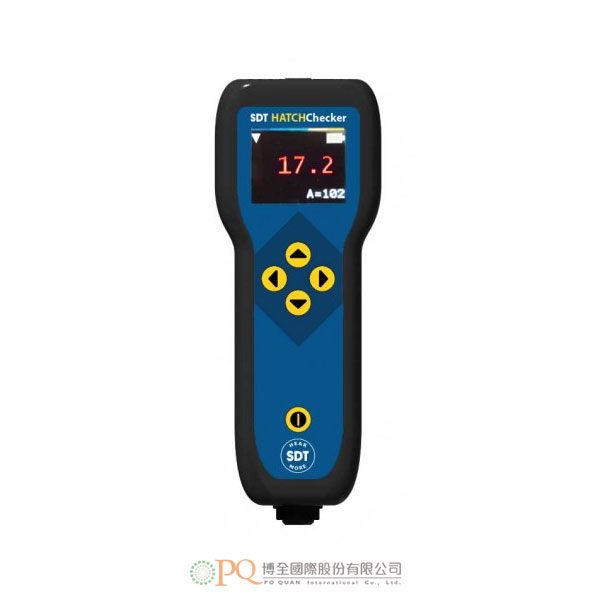

HATCHecker 艙口蓋密封性檢測

型號:HATCHecker
  • HATCHecker能確保艙口蓋是不透風且符合法規要求的,該產品包括最先進的技術,T9發射器和手持接收器設計得既輕巧、堅固、又適合在惡劣的海洋環境中使用。
  • 符合人體工程學的革命性設計,鮮豔的彩色螢幕和精簡的按鍵數量,使SDT HATCHecker易於使用,方便攜帶,並能夠在船上進行準確的定位和可靠的洩漏檢測。
  • SDT著名的質量和工程技術,再加上開創性的設計和極具競爭力的價格設定,使SDT HATCHecker成為處理漏水艙口蓋最合適、最實惠的解決方案。
    • HATCHecker能確保艙口蓋是不透風且符合法規要求的,該產品包括最先進的技術,T9發射器和手持接收器設計得既輕巧、堅固、又適合在惡劣的海洋環境中使用。
    • 符合人體工程學的革命性設計,鮮豔的彩色螢幕和精簡的按鍵數量,使SDT HATCHecker易於使用,方便攜帶,並能夠在船上進行準確的定位和可靠的洩漏檢測。
    • SDT著名的質量和工程技術,再加上開創性的設計和極具競爭力的價格設定,使SDT HATCHecker成為處理漏水艙口蓋最合適、最實惠的解決方案。
  • 功能

    超音波檢測設備

    測量通道

    1個7針LEMO通道

    顯示

    160 x128 圖元的彩色OLED

    按鍵

    5個功能鍵

    測量範圍

    -6 到 99.9 dBμV(參考0 dB = 1μV,解析度0.1 dBμV)

    檢測頻帶

    39.6 to 40.1 kHz

    信號放大

    +30 to +102 in steps of 6 dB

    最小靈敏度

    -31dB (@40 kHz, 0 dB-1 V/µbar) Equal to a flow rate up to 10-3 std. cm3/sec.

    環境



    工作溫度範圍

    -10 to +50 °C /14 to 122°F

    防護等級

    IP42

    設備



    材料和重量

    ABS,  400 g ( 14 oz)

    尺寸大小

    158x59x38.5 mm (6.22”x2.32”x1.51”)

    感測器連接

    7針LEMO連接

    電源



    電池

    2個5號電池

    待機

    7小時

    音訊



    最大輸出

    +83dB SPL with 25dB NRR Peltor HQ SDT 耳機

    • Confirm that hatch covers are weathertight and compliant with ruling regulations by using the new SDT HATCHecker which includes cutting edge technology that makes both the T9 transmitter and handheld receiver light, compact, robust and suitable for use in the harsh marine environment.
    • The ergonomic and revolutionary design, vibrant colour display and limited number of keys make the SDT HATCHecker easy to use, handy for travellers and allows for reliable leak detection with pinpoint accuracy on board ships.
    • SDT’s renowned quality and engineering, together with pioneering design and competitive price setting make the SDT HATCHecker the most suitable and affordable solution for dealing with leaky hatch covers.
  • Function Ultrasound measurement device Housing material ABS
    Display 160×128 pixels Color OLED Dimensions housing 158 x 59 x 38.5 mm | 6.22” x 2.32” x 1.51”
    Sampling frequency 64 kHz/ksps Electrical connector 7-pole female LEMO
    Measurement channel 1 channel via a 7 pole LEMO connector Weight  400 g ( 14 oz)
    Keyboard 5 function keys Battery 2 AA batteries
    Measuring range -6 to 99.9 dBμV (reference 0 dB = 1 μV) Autonomy 7 hours
    Resolution 0.1 digit Audio Amplification 5 adjustable positions by step of 6 dB
    Measurement bandwidth 39.6 to 40.1 kHz Operable with SDT provided head set only
    Signal amplification +30 to +102 by step of 6 dB Maximum output +83dB SPL with SDT headset
    Operating temperature range -10 to +50 °C |14 to 122°F Headset 25dB NRR Peltor HQ headset
    IP rating IP42 Minimum sensitivity -31dB (@40 kHz, 0 dB-1 V/μbar) Egal to a flow rate up to 10-3 std. cm3/sec.
