真空脫氣機組

該裝置是一個獨立的單元，所有部件和操作組件都有金屬板保護，裝置的側面和後面有易於打開的氣動彈簧門。集裝箱式裝置可以安裝在符合《道路交通法規》的雙軸拖車上，並被拖到任何偏遠的地方。

優勢

• 變壓器油的耐壓強度可以提高到70kV以上。
• 同時進行變壓器乾燥和油處理 。
• 在電氣設備中初次注入絕緣油處理。
• 對變壓器和其他電氣設備進行真空處理。
• 易於操作和服務。

Note: * initial oil parameters:

• volumetric gas content – below 5%;
• mass moisture content – below 01% (100 g/ton);
• temperature – above 0 ºС/ 32 ºF.

**All equipment sold in the USA is designed to operate on 60 Hz AC Power

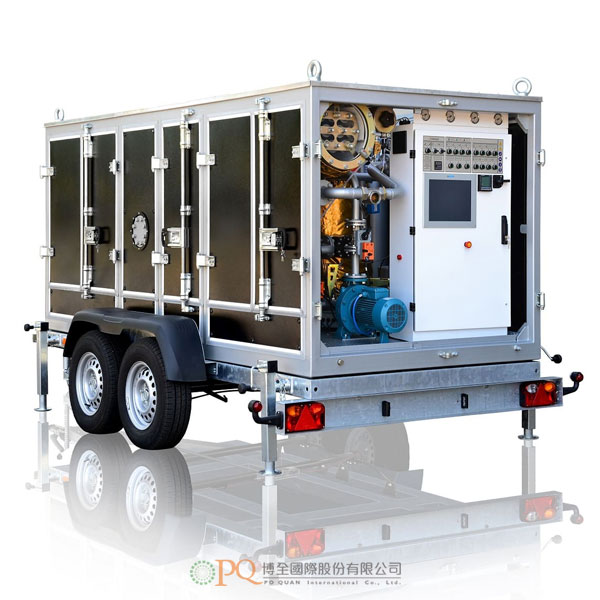

The unit is built as a self-contained unit with all components and operating assemblies protected by metal panels and easy opening gas-spring loaded doors on the sides and back of the unit. The “Containerized”unit is placed on a tandem axle trailer that is street legal and ready to be towed to any remote  location.

The unit consists of a vacuum chamber, input and output oil pumps, coarse and fine filters, oil trap, oil heater, pipelines with valves, vacuum pump section and a control cabinet.

ADVANTAGES

• transformer oil dielectric strength increase to at least 70 kV;
• transformer drying with simultaneous oil processing;
• initial filling of electrical equipment with insulation oil;
• evacuation of transformers and other electrical equipment;
• simple operation and servicing.

Note: * initial oil parameters:

• volumetric gas content – below 5%;
• mass moisture content – below 01% (100 g/ton);
• temperature – above 0 ºС/ 32 ºF.

**All equipment sold in the USA is designed to operate on 60 Hz AC Power
