電磁鐵／線圈磁鐵 5203

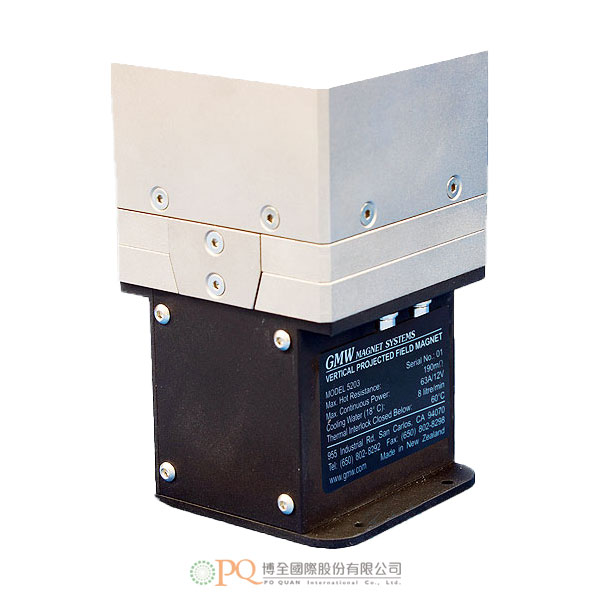

5203 Vertical Projected Field 型號：5203- 提供垂直於表面的磁場(Bz)
- 寬敞的工作環境
- 體積小重量輕方便安裝在任何空間
- 最大磁場：±0.5T （與z軸位置有關）
- 電源供應：±100A, ±20V
- 系統包含：電源、水冷、溫度interlock、操作軟體
- 可自由編輯供應磁場的大小、波型、時間
- 更可以自行定義實驗集
- 在大電流的供應中，定溫度Interlock確保實驗的安全
- 可搭配GMW定位控制系統，能精準控制x,y,z,θ
-
- 提供垂直於表面的磁場(Bz)
- 寬敞的工作環境
- 體積小重量輕方便安裝在任何空間
- 最大磁場：±0.5T （與z軸位置有關）
- 電源供應：±100A, ±20V
- 系統包含：電源、水冷、溫度interlock、操作軟體
- 可自由編輯供應磁場的大小、波型、時間
- 更可以自行定義實驗集
- 在大電流的供應中，定溫度Interlock確保實驗的安全
- 可搭配GMW定位控制系統，能精準控制x,y,z,θ
-
Dimensions
74mm W x 74mm D x 123.5mm H (2.91 inch w x 2.91 inch D x 4.86 inch H)
Weight (excluding hoses and water)
2.5 kg (5.2 pounds)
Pole Face Diameter
24.4mm (0.96 inch)
Coils (series connected)
Resistance (20°C)
173 mΩ
Max. Resistance (80°C)
240 mΩ
Max. continuous current
63 A
Max Peak Current
100 A
Max. continuous Power
750 W
Max Peak Power
2000 W
Low Field Inductance
3500 µH
High Field Inductance
895 µH
Ramp Rate (0-0.5T, linear B vs t)
0.1 seconds
Ramp Rate (0-0.5T, non-linear B vs t)
0.01 seconds
Water Cooling (supply 18°C @ 15 psi)
Up to 8 Litre/min
Anticipated max. sinusoidal frequency (0.5T)
10 Hz
Over Temperature Interlock
80 °C
-
The 5203 Electromagnet is a projected field magnet providing uniform field at a location above the magnet surface. It is intended for applications where the space around the working volume needs to be freely accessible.
Poles are interchangeable and are available with an axial access bore. The 5203 can be mounted in any orientation and light weight (2.5kg) allows the magnet to be integrated into dynamic applications such as wafer testing
-
Dimensions
74mm W x 74mm D x 123.5mm H (2.91 inch w x 2.91 inch D x 4.86 inch H)
Weight (excluding hoses and water)
2.5 kg (5.2 pounds)
Pole Face Diameter
24.4mm (0.96 inch)
Coils (series connected)
Resistance (20°C)
173 mΩ
Max. Resistance (80°C)
240 mΩ
Max. continuous current
63 A
Max Peak Current
100 A
Max. continuous Power
750 W
Max Peak Power
2000 W
Low Field Inductance
3500 µH
High Field Inductance
895 µH
Ramp Rate (0-0.5T, linear B vs t)
0.1 seconds
Ramp Rate (0-0.5T, non-linear B vs t)
0.01 seconds
Water Cooling (supply 18°C @ 15 psi)
Up to 8 Litre/min
Anticipated max. sinusoidal frequency (0.5T)
10 Hz
Over Temperature Interlock
80 °C
