偶極電磁鐵

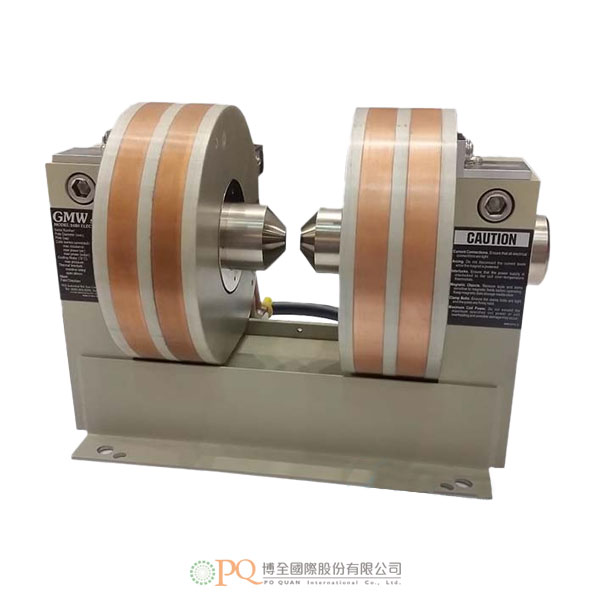

GMW Dipole Electromagnet 型號：3480- 小巧輕量：32kg。
- 在2mm間隙及5mm極面直徑時，峰值場可達3.6T。
- 適合任何安裝方向。
- 快速的週期時間。
- 應用包括電子順磁共振分析(EPR)、鐵磁共振分析(FMR)、振動樣品磁性量測(VSM)或磁光科爾效應研究(MOKE)。
-
- GMW 3480型偶極電磁鐵是一款輕量多功能的系統，可提供2T以上的場。
- 磁鐵僅重32kg，可輕易在不同的應用之間搬動，並可在任何方向操作。
- 此系統專用於搭配已經採用GMW 3470型電磁鐵的系統使用。
- 3480型配備一套標準的極柱組，可優化最大的場，並提供幾種極柱選購。
- GMW也能設計達到特定需求性能的客製極柱。
- 極柱可交換使用，並有一個軸向通孔。
- 特點：
- 小巧輕量：32kg。
- 在2mm間隙及5mm極面直徑時，峰值場可達3.6T。
- 適合任何安裝方向。
- 快速的週期時間。
- 應用：
- 電子順磁共振分析(EPR)。
- 鐵磁共振分析(FMR)。
- 振動樣品磁性量測(VSM)或磁光科爾效應研究(MOKE)。
-
總體規格
體積
寬285mm x 深197mm x 高213mm
重量(不含軟管及水)
34kg
標準極面直徑
16.00mm
串聯連接的線圈
電阻(20°C)
1.46Ω
最大的電阻(65°C)
1.76Ω
電感
180mH
預期的最大正弦頻率(1T)
10Hz
過溫聯鎖保護
65°C
水冷(每分鐘4公升，18°C@15psi)
最大的連續電流
35A
峰值電流(正弦波)
50A
峰值電流(三角波)
60A
最大的連續功率
2.0kW
最大的瞬時功率
8.0kW
氣冷(在環境溫度18°C)
最大的連續電流
7A
峰值電流(正弦波)
10A
峰值電流(三角波)
12A
最大的連續功率
100W
- 詳細規格、配件、軟體及選購，歡迎洽詢。
-
- The 3480 dipole electromagnet is a light weight versatile system that can provide fields above 2 Tesla. At 32 kg this magnet can easily be moved between applications and can be operated in any orientation.
- The system is intended to be compatible with systems that already utilize GMW’s 3470 electromagnet.
- The 3480 is shipped with a standard set of poles that optimize maximum field but several pole options are available. GMW can also design custom poles that achieve a specific performance. Poles are interchangeable and are available with an axial access bore.
- The 3480 OG dipole electromagnet system is intended to provide an open geometry particularly suited to MOKE applications.
- Features:
- Small and light weight at 32kg
- Peak fields up to 3.6 T for 5mm pole face diameter at 2mm gap
- Any mounting orientation
- Fast cycle times
- Applications:
- EPR
- FMR
- VSM or MOKE
-
GENERAL SPECIFICATIONS
Dimensions
285mm W x 197mm D x 213mm H
Weight (excluding hoses and water)
34 kg (75 pounds)
Standard Pole Face Diameter
16.00mm (0.63 inch)
Coils (series connected)
Resistance (20°C)
1.46Ω
Max. Resistance (65°C)
1.76Ω
Inductance
180mH
Anticipated max. Sinusoidal frequency (1T)
10Hz
Over Temperature Interlock
65°C
Water cooled at 4 Litre/min (supply 18°C @ 15 psi)
Max. continuous Current
35A
Peak Current (Sinusoid)
50A
Peak Current (Triangle Wave)
60A
Max. Continuous Power
2.0kW
Max Instantaneous Power
8.0kW
Air cooled in ambient 18°C
Max. Continuous Current
7A
Peak Current (Sinusoid)
10A
Peak Current (Triangle Wave)
12A
Max. Continuous Power
100W
- Please feel free to contact for detailed specifications, accessories, software and options.
