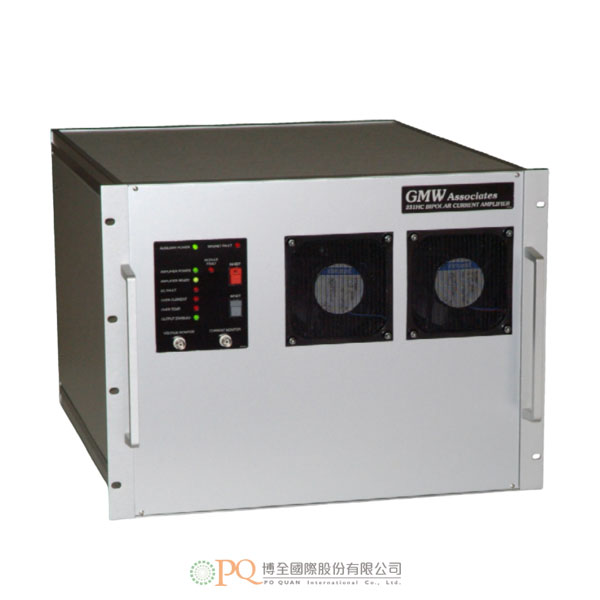

雙極電流放大器
GMW Bipolar Current Amplifier 型號：231HC- GMW 231HC雙極電流放大器提供最高達到±70A、±160V的一個快速響應的真正雙極電流源，適用於 GMW電磁鐵包括機型5403、5403EG、5403AC、3472-70、3473-70及5451。
- GMW 231HC整合了Copley Controls梯度放大器231HC型及電容器組、輔助電源供應器、冷卻風扇和National Instruments的USB-6251資料蒐集控制模組在一個19吋機架安裝機櫃中，可提供16位元解析USB或直接類比編程的電流輸出。
- 搭配SGA DC電源供應器及GMW LVMCTRL LabVIEW控制軟體，可構成一套完整的電腦控制型雙極電源供應系統。
-
- GMW 231HC雙極電流放大器提供最高達到±70A、±160V的一個快速響應的真正雙極電流源，適用於 GMW電磁鐵包括機型5403、5403EG、5403AC、3472-70、3473-70及5451。
- GMW 231HC整合了Copley Controls梯度放大器231HC型及電容器組、輔助電源供應器、冷卻風扇和Nl的USB-6251資料蒐集控制模組在一個19吋機架安裝機櫃中，可提供16位元解析USB或直接類比編程的電流輸出。
- 假如系統還配備一個Senis 類比磁場傳感器，USB-6251也可讀回電磁鐵電流及電壓與磁場。
- 此外，還需要一個適用的dc電源供應器，例如Ametek SGA 160V，31A。為使機型3473-70電磁鐵以磁場的最大變動速率斜變，需要搭配SGA 160V，63A電源供應器。
- 完整的電腦控制型雙極電源供應系統：
- 將機型231HC及SGA DC電源供應器安裝在GMW-RC-1920台面高度的機架內，機架空間內放置GMW RMCS-P4機架安裝型電腦，便可構成一套運行GMW LVMCTRL LabVIEW控制軟體的完整電腦控制型電源供應系統。
- 關於機型231HC搭配GMW電磁鐵而展現性能的範例，請參考231H操作手冊說明。
-
電氣
電流輸出
±160V，±70A(最大峰值)
電源輸入(dc)
Sorenson SGA 160V，31A或SGA 160V, 63A
電源輸入(ac輔助)
100-230Vac，50/60Hz
控制
NI USB-6251及USB介面
機身
外觀
8U機架安裝完全封閉式機箱
體積
19吋機架安裝 x 高8U (352mm) x 深545mm
重量
45.2kg
- 詳細規格、配件、軟體及選購，歡迎洽詢。
-
- The GMW 231HC Bipolar Current Amplifier provides a fast response true bipolar current source of up to ±70A, ±160V for GMW Electromagnets including Electromagnets 5403, 5403EG, 5403AC, 3472-70, 3473-70 and 5451.
- The 231HC integrates a Copley Controls Gradient Amplifier Model 231HC with capacitor bank, auxiliary power supply, cooling fans and National Instruments USB-6251 data acquisition and control module in a 19 inch rack mounting cabinet. Either 16bit resolution USB or direct analog programming of the current output is available. The USB-6251 can also read back Electromagnet current and voltage and magnetic field if a Senis Analog Magnetic Field Transducer is included in the system.
- A suitable dc Power Supply is also required, such as the Ametek SGA 160V, 31A.
- To ramp the 3473-70 Electromagnet at a maximum rate of change of field requires the SGA 160V, 63A Power Supply.
- For a complete Bipolar Power Supply System the 231HC and SGA DC Power Supply are mounted in the GMW-RC-1920 Bench Height Rack. Rack space is available for the GMW RMCS-P4 Rack Mounted Computer to enable a complete computer controlled system running under the GMW LVMCTRL LabVIEW Control Software. Refer to the 231HC User Manual for performance examples with GMW Electromagnets.
-
Electrical
Current Output
±160V, ±-70A (max peak)
Power Input (dc)
Sorenson SGA 160V, 31A or SGA 160V, 63A
Power Input(ac auxillary)
100-230Vac, 50/60Hz
Control
NI USB-6251 with USB interface
Mechanical
Form Factor
8U rack mount fully enclosed chassis
Dimensions
19inch rack mounting x 8U (352mm, 14inch)H x 545mm (24.2inch) D
Weight
45.2kg (100lb)
- Please feel free to contact for detailed specifications, accessories, software and options.
