GIUSSANI > 溫度校正器
GIUSSANI_PT100_PQ

SENSOR WITH STANDARD RTD PT100

SENSOR WITH STANDARD RTD PT100 型號：PT100
  • Regulations: IEC 60751
  • Action ragnge: -40 ÷ 650 °C
  • Probe class: AA - A
  • Sheath: AISI 316
  • Diameter: 3 ÷ 6 mm

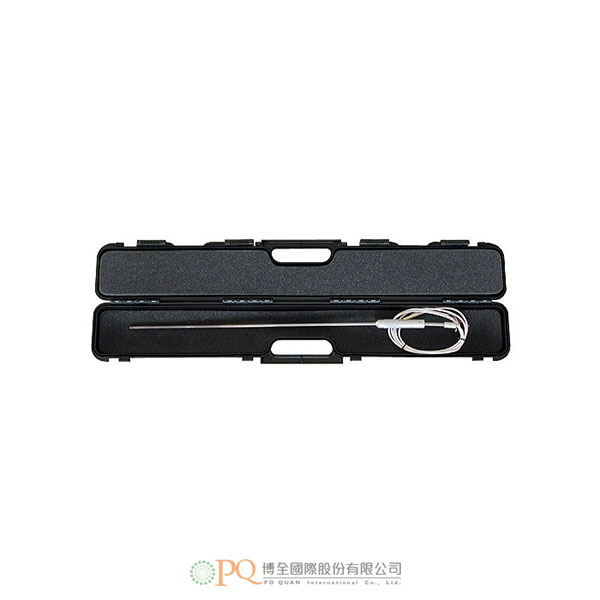

  • Kit: Polypropylene padded case
加入洽詢
Features Specifications

  • Sensori campione Pt100 per uso industriale in laboratorio con bagni termostatici e calibratori di temperatura.
    Reference Pt100 probes for industrial use in laboratory with thermostatic baths and temperature calibrators.

  • CODICE - CODE 3DC704 3D2352 3D3158
    CAMPO - RANGE -40 ÷ 600 °C -40 ÷ 450 °C -40 ÷ 400 °C
    NORMA - STANDARD IEC 60751
    CLASS - CLASS A AA A
    STABILITA’ - STABILITY 0,010 Ω/year (@ 0 °C)
    R0 100 ±0,05 Ω
    ALPHA 0,00385 ±0,000005
    GUAINA - SHEATH AISI 316
    FILI - WIRES 4+schermo / 4+shield
    DIMENSIONI - DIMENSION Ø6 x 500 mm Ø6 x 500 mm Ø3 x 500 mm
    CUSTODIA - CASE Opzionale - Optional
