THERMOSTATIC CALIBRATORS

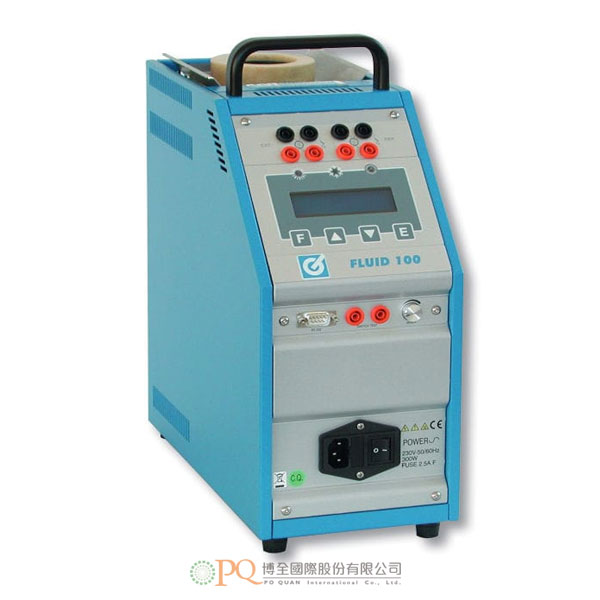

THERMOSTATIC CALIBRATORS 型號:FLUID 100
  • Temperature range: -12 °C ÷ 125 °C
  • Precision: ±0,15 °C
  • Hole depth: 150 mm
  • Hole diameter: 54 mm
  • Operating range:-18 °C / +250 °C, (-0,4 °F / 482 °F)

    Applications:

    Check and calibration of temperature sensor in the laboratory as well as in the field in compliance of ISO 9000 regulations
    Checking glass thermometers
    Checking thermostats

  • Technical specification FLUID 100 FLUID H100 FLUID 200 FLUID H200
    Operating range -18 °C ÷ + 125 °C (*) (-0,4 °F ÷ 257 °F) -18 °C ÷ + 140 °C (*) (-0,4 °F ÷ 284 °F) Room temp. ÷ +200 °C Room temp. ÷ +392 °F Room temp. ÷ +250 °C Room temp. ÷ +482 °F
    Average heating time (stabilization included) 12 °C/min
    (53 °F/min)
    12 °C/min
    (53 °F/min)
    10 °C/min
    (50 °F/min)
    10 °C/min
    (50 °F/min)
    Average cooling time (stabilization included) 5 °C/min
    (41 °F/min)
    5 °C/min
    (41 °F/min)
    4 °C/min
    (39 °F/min)
    4 °C/min
    (39 °F/min)
    Axial uniformity ±0,05°C / ±0.09°F at 0°C / 32°F
    (for 60 mm from the bottom)
    ±0,05°C / ±0.09°F at 0°C / 32°F
    (for 60 mm from the bottom)
    ±0,05°C / ±0.09°F at 0°C / 32°F
    (for 60 mm from the bottom)
    ±0,05°C / ±0.09°F at 0°C / 32°F
    (for 60 mm from the bottom)
    Radial uniformity (at 40 mm) ±0,02 °C (at –5 °C)
    ±0.03 °F (at 23 °F)
    ±0,02 °C (at –5 °C)
    ±0.03 °F (at 23 °F)
    ±0,05 °C (at 50 mm)
    ±0.09 °F (at 50 mm)
    ±0,05 °C (at 50 mm)
    ±0.09 °F (at 50 mm)
    Hole depth 170 mm
    (6.6 in.)
    170 mm
    (6.6 in.)
    170 mm
    (6.6 in.)
    170 mm
    (6.6 in.)
    Hole diameter 60mm (2.3 in.) 60mm (2.3 in.) 60mm (2.3 in.) 60mm (2.3 in.)
    Display accuracy ±0,15 °C
    (±0.27 °F)
    ±0,15 °C
    (±0.27 °F)
    ±0,15 °C
    (±0.27 °F)
    ±0,2°C (±0.3 °F)
    Stability ±0,02 °C at –5°C (±0.03 °F at 23 °F) ±0,02 °C at –5°C (±0.03 °F at 23 °F) ±0,02 °C at –5°C (±0.03 °F at 23 °F) ±0,03 °C at 150 °C
    (±0.05 °F at 302 °F)
    Display Resolution All temperatures 0,1 °C / 0,01 °F All temperatures 0,1 °C/ 0,01 °F All temperatures 0,1 °C / 0,01 °F All temperatures 0,1 °C / 0,01 °F
    Units of measure °C - °F - K °C - °F - K °C - °F - K °C - °F - K
    Switch test yes yes yes yes
    Calibrator size 160 x 340 x 330 mm (6,2x13,3x12,9 in.) 160 x 340 x 330 mm (6,2x13,3x12,9 in.) 160 x 340 x 330 mm (6,2x13,3x12,9 in.) 160 x 340 x 330 mm (6,2x13,3x12,9 in.)
    Calibrator weight 8 kg
    (17 lb)
    8 kg
    (17 lb)
    8 kg
    (17 lb)
    8 kg
    (17 lb)
    Power supply 115 or 230 VAC - 50/60 Hz 115 or 230 VAC - 50/60 Hz 115 or 230 VAC - 50/60 Hz 115 or 230 VAC - 50/60 Hz
    Electric power 300 W 300 W 500 W 500 W
