EXVC X 射線准直器套件

為了解決 X 射線通量對於探測器和處理 X 射線光譜的電子元件來說都過高的應用問題，Amptek開發了一個「准直器套件」來准直初級 X 射線束。 該系統由EXVC准直器外殼組成，可在 X-123 的1.5英寸延長管上滑動。

EXVC 准直器外殼最多可容納兩個鎢（W）准直器片，這些準直器片被放置在探測器前面的接口支架內。 通過選擇適當的鎢准直器片，用戶可以減少入射的 X 射線通量，並允許探測器和電子元件處理 X 射線光譜。 Amptek提供了七種不同的鎢准直器片，它們有不同尺寸的孔，適用於廣泛的應用。

EXVC 准直器外殼由不鏽鋼製成，也可在真空室內使用。

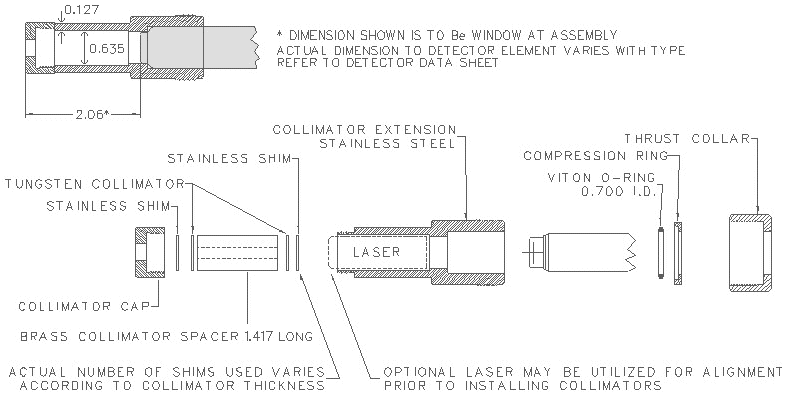

EXVC 准直器套件機械尺寸。除非另有說明，否則所有尺寸均以英寸為單位

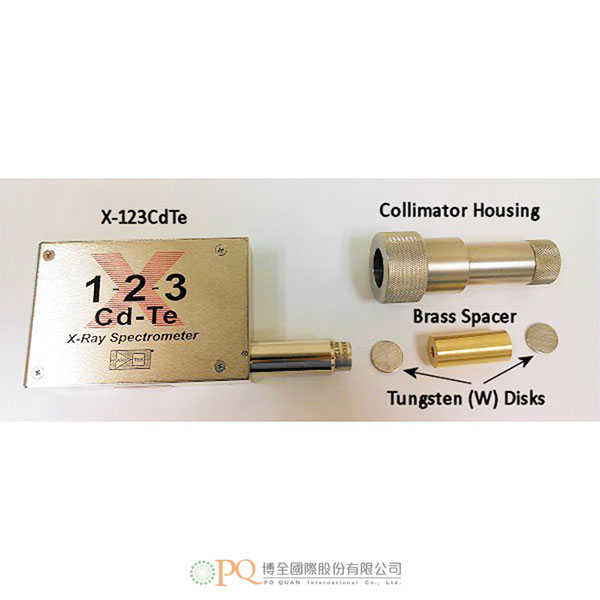

EXVC 准直器套件包括：

• 不鏽鋼准直器外殼
• 黃銅墊片
• 三腳架和安裝板（如果為了與標準 1.5 英寸延長管盒一起使用而訂購，將隨附在包裝內）
• 雷射筆
• 5 種鎢（W）准直器片：
  • 1 mm 厚，25 µm 孔
  • 1 mm 厚，50 µm 孔
  • 2 mm厚，​​400 µm孔
  • 2 mm 厚，1000 µm 孔
  • 2 mm 厚，2000 µm 孔

所有鎢片均由 HD17 合金（90% W、6% Ni、4% Cu）製成。

所有鎢片和黃銅墊片的直徑均為0.625英寸。
可選：EXVC-W-SPACER
此鎢（W）黃銅墊片/準直器厚 36 mm，孔徑為 300 μm。 它設計用於阻止和准直由高能量射線管產生的大於 150 keV 的 X 射線。

X-123CdTe 上的 EXVC 准直器套件
如需了解更多信息，請立即聯繫我們！

In order to accommodate applications where the X-ray flux is too high for both the detector and the electronics that process the X-ray spectrum, we have developed a “Collimator Kit” to collimate the primary X-ray beam. This system is comprised of the EXVC Collimator Housing which slides over the 1.5 inch extender of the X-123.

The EXVC Collimator Housing can accommodate up to two Tungsten (W) collimator disks that are placed inside a bayonet holder in front of the detector. By selecting the appropriate Tungsten collimator disks, the user can reduce the incoming X-ray flux and allow the detector and electronics to process the X-ray spectrum. Seven different Tungsten collimator disks are provided with different size holes in order to allow for a wide range of applications.

The EXVC Collimator Housing is made of stainless steel and can also be used inside a vacuum chamber.

EXVC Collimator Kit Mechanical Dimensions. All dimensions in inches unless except as noted.

The EXVC Collimator Kit Includes:

• Stainless steel collimator housing
• Brass Spacer
• Tripod and mounting plate (included when ordering for use with standard 1.5 inch extender box)
• Laser pointer
• 5 Tungsten (W) Collimator disks:
  • 1 mm thick with 25 µm hole
  • 1 mm thick with 50 µm hole
  • 2 mm thick with 400 µm hole
  • 2 mm thick with 1000 µm hole
  • 2 mm thick with 2000 µm hole

All Tungsten disks are made of alloy HD17 (90% W, 6% Ni, 4% Cu).

All Tungsten disks and spacers have a diameter of 0.625 inches.

Optional: EXVC-W-SPACER
This Tungsten (W) Spacer /Collimator is 36 mm thick with a 300 µm hole. It is designed to stop and collimate x-rays greater than 150 keV that are produced from high energy tubes.

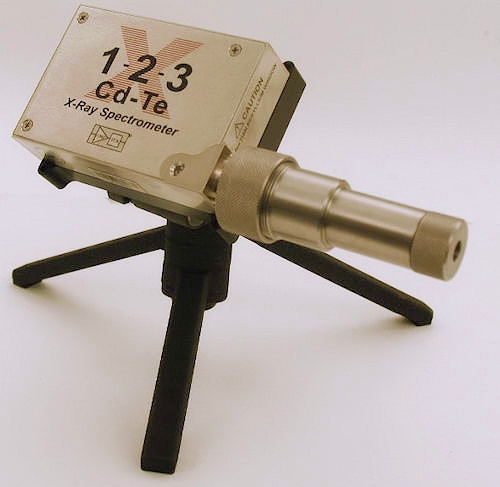

EXVC Collimator Kit on the X-123CdTe.
