快速連接裝置的機架

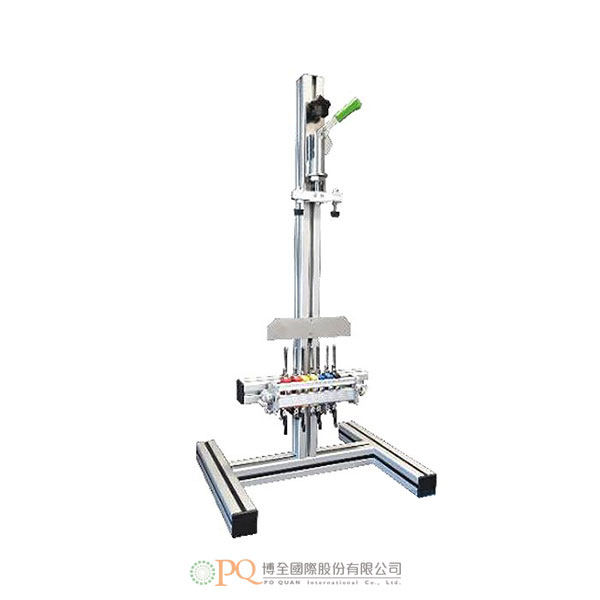

Rack with quick connection device 型號：ER10H.3

Rack ER10 with quick connection device EH10.3 for fast and easy mounting and connecting of electricity meters with current up to 100A for the efficient testing of meters

加入洽詢

產品特點產品規格 Features Specifications

- Fast and easy mounting and connecting of electricity meters
- Flexible single and three phase contact pin configurations
- Possibility to connect of safety cables and current cables up to 120A
- Spring contact pins with current up to 100A
- Light weight
- Smart design

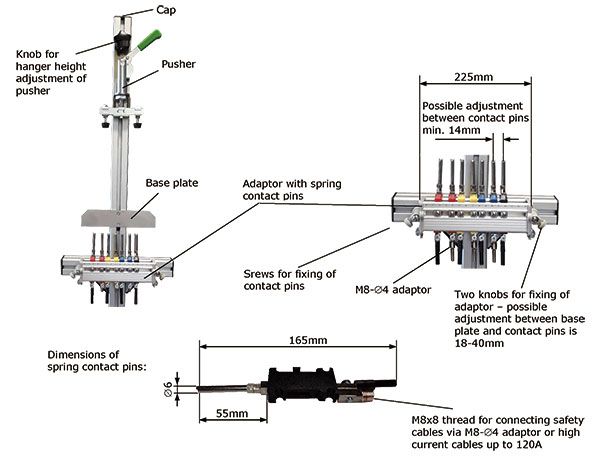

The EH10.3 is completely delivered as a ready to use and may be fixed to the ER10 rack as shown in the figures：

Continuous current：100A

Maximum current：120A 10min./1h

Pin resistance：0.6mW@100A (resistance between M8 thread and terminal of meter including contact resistance)
Test voltage：4000VAC / 50Hz / 1min.
- Fast and easy mounting and connecting of electricity meters
- Flexible single and three phase contact pin configurations
- Possibility to connect of safety cables and current cables up to 120A
- Spring contact pins with current up to 100A
- Light weight
- Smart design
The EH10.3 is completely delivered as a ready to use and may be fixed to the ER10 rack as shown in the figures：

Continuous current：100A

Maximum current：120A 10min./1h

Pin resistance：0.6mW@100A (resistance between M8 thread and terminal of meter including contact resistance)
Test voltage：4000VAC / 50Hz / 1min.
