Enervac > 變壓器絶緣油純化系統系列

變壓器乾燥系統

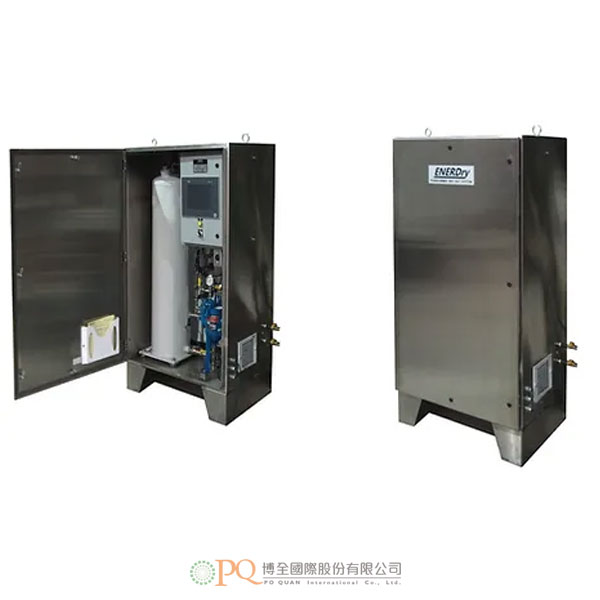

ENERDry Transformer Dry-Out System 型號：ENERDry

可用於延長絶緣系統 - 絶緣紙及絶緣油 - 的使用期限，而延長變壓器的使用壽命。
在處理過程中，變壓器仍可維持運轉 - 不因停機而損失營收。
相對於採用其它程序方法，更可降低成本。
使運轉中的變壓器保持在一個低的濕度。

加入洽詢

產品特點產品規格 Features Specifications

- 變壓器及絕緣紙的大敵是水份。水份可以採用真空脫水程序從變壓器中去除。不過，本機型提供一種更簡單、更經濟的方法，可從變壓器絶緣油與絕緣紙中去除水份，對於具有5%或更高水份的變壓器，則可將它乾燥至可接受的程度，而無須將變壓器停機。
- 特點：
  - 從變壓器絶緣油及絶緣紙中除去水份。
  - 維持運轉中的變壓器絶緣油的含水量在一個可接受的程度。
  - 能將不準備抽真空的變壓器乾燥。
  - 安全系統：發生警報或電源故障時，能自行隔離。
  - 不使用濾紙。
- 優點：
  - 藉由延長絶緣系統 - 絶緣紙及絶緣油 - 的使用期限，而延長變壓器的使用壽命。
  - 在處理過程中，變壓器仍可維持運轉 - 不因停機而損失營收。
  - 相對於採用其它程序方法，更可降低成本。
  - 不會從變壓器絶緣油中去除溶解氣體，使溶解氣體分析(DGA)能提前提供關於系統中其它潛在問題的注意資訊。
- 選購的特點：
  - 變壓器絶緣油位準監測系統(TOLMS)。
  - 濕度計：Doble Domino感測器，可測量油中濕度(PPM)。
  - 觸控螢幕操作介面及“PPM趨勢”資料蒐集工具，可監測一段時間的含水量。
  - 以電子郵件/簡訊發送警報訊息
  - PPM趨勢圖的遠端監測。
- 體積：高1,524 mm x 寬1,140 mm x 深1,470mm。
- 重量：340kgs。
- 標準電壓：220V-1PH -50/60Hz (可訂購其它電壓)。
- 系統性能：
  - 含水量： < 10PPM。
  - 去除顆粒： > 1微米。
- 詳細規格、配件及選購，歡迎洽詢。
- Extends service life of transformer by extending the service life of the insulating system (paper & oil).
- Transformer remains in service during processing (no lost revenue due to down time).
- Reduced processing costs in relation to other processes.
- Maintains low moisture levels in transformers in service.
- Transformers and its paper insulation have a primary enemy – Water. Water can be removed from a transformer using a vacuum dehydration process. Now, however an easier and less expensive method can be used to remove the water from the transformer oil and its paper insulation. Transformers that have 5% moisture or higher can be dried to acceptable levels without taking the transformer out of service.
- FEATURES:
  - Removes moisture from transformer oil and insulation.
  - Maintains low moisture levels in transformer oils in service.
  - Able to dry transformers not braced for vacuum.
  - Safety system – isolates itself in case of alarm or power failure.
  - No paper filters utilized.
- BENEFITS:
  - Extends service life of transformer by extending the service life of the insulating system (paper and oil)
  - Transformer remains in service during processing (no lost revenue due to down time)
  - Reduced cost relative to other processes
  - Does not remove dissolved gas from transformer oil, allowing dissolved gas analysis (DGA) to give advanced notice of other potential problems in the system.
- OPTIONAL FEATURES:
  - Transformer Oil Level Monitoring System (TOLMS)
  - Hygrometer – Doble Domino sensor for measurement of moisture level in the oil (PPM)
  - Touch screen interface with data logger with “PPM Trend” tool for monitoring moisture content over time.
  - E-mail /SMS alarm messages
  - Remote Monitoring of PPM Trend chart
- DIMENSIONS:
  - Height: 60” (1,524 mm)
  - Width: 36” (1,140 mm)
  - Depth: 26” (1,470mm)
- Weight: 750lbs (340kgs)
- STANDARD VOLTAGE: 220V-1PH -50/60Hz (other voltages available on request)
- SYSTEM PERFORMANCE:
  - Water content: < 10PPM
  - Removal of Particles: > 1 micron
- Please feel free to contact for detailed specifications, accessories and options.
