桌上型掃描式電子顯微鏡

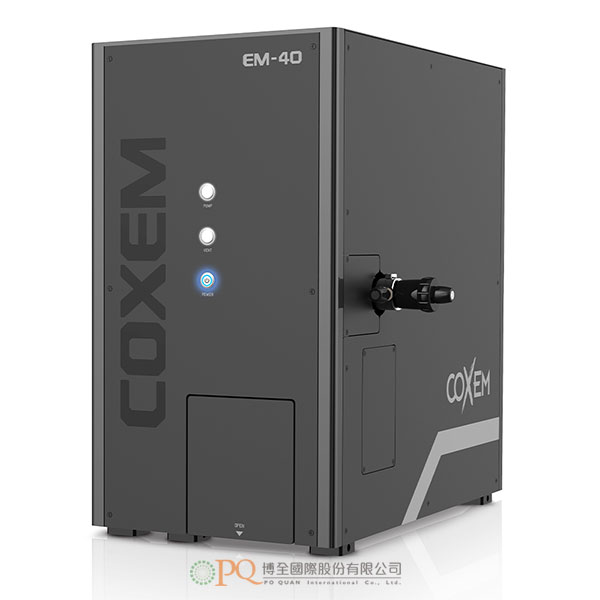

Benchtop SEM 型號:EM-40
EM-40 是 COXEM 最新推出的桌上型掃描電子顯微鏡。 EM-40 配備了超快的第五代訊號處理技術,可提供影格速率高達 13 fps 的高品質成像。 四種成像模式(快速、慢速、超快速和照片)可讓使用者選擇最適合其應用的影像品質和速度。
-
EM-40 是 COXEM 最新推出的桌上型掃描電子顯微鏡。 EM-40 配備了超快的第五代訊號處理技術,可提供影格速率高達 13 fps 的高品質成像。 四種成像模式(快速、慢速、超快速和照片)可讓使用者選擇最適合其應用的影像品質和速度。
應用
-
電子槍 鎢絲 (W) 空間解析度 < 5nm 放大倍率 x20 至 x250,000 (數位變焦 x1 ~ x12) 加速電壓 1 ~ 30kV 樣品台 X:40 mm,Y:40 mm,Z:mm,,三軸電動式 探測器 SE, BSE* 真空模式 高真空、低真空*、可調壓力* 真空系統 渦輪幫浦(80 公升)+ 旋轉幫浦(100 公升) 樣品支架 多引腳短截面支架 尺寸(寬 × 長 × 高) 315 × 560 × 580mm, 81.5kg 功能 全景 2.0 自動對焦 1 秒自動亮度和對比度 自動燈絲調節 自動啟動 訊號混合 三重顯示和保存 線條輪廓 影像濾鏡 線路測量 色彩測量 數據輸出格式 JPEG、TIFF、BMP 可選購* Navi CAM 低真空(20Pa),可調壓力(10 / 20 / 30 Pa) 冷卻台 隔膜幫浦 -
The EM-40 represents COXEM's latest addition to their expanding family of Tabletop SEMs. The EM-40 comes with ultra-fast 5th-generation signal processing technology and provides high-quality imaging at frame rates of up to 13 fps. Four imaging modes (Fast, Slow, UltraFast, and Photo) allow the user to choose the image quality and speed that best fits their application.
application
-
Electron gun Tungsten filament (W) Spatial resolution < 5nm Magnification x20 to x250,000 (Digital zoom x1 ~ x12) Accelerating voltage 1 ~ 30kV Sample stage X:40 mm,Y:40 mm,Z:mm,,3-axis motorized Detector SE, BSE* Vacuum mode High vacuum, Low vacuum*, Variable pressure* Vacuum system Turbo pump (80L) + Rotary pump (100L) Sample holder Multi-pin stub holder Dimension (W × L × H) 315 × 560 × 580mm, 81.5kg Features Panorama 2.0 Auto focus 1 Second auto brightness & contrast Auto filament adjustment Auto start Signal mixing Triple display & Save Line profile Image filtering Line measurement Color measurement Data output format JPEG、TIFF、BMP Options* Navi CAM Low vacuum (20Pa), Variable pressure (10 / 20 / 30 Pa) Cool stage Diaphragm pump
