Elsys > 衰滅器
05_3-Channel1k_PQ

3-Channel 1000:1 Precision Attenuator

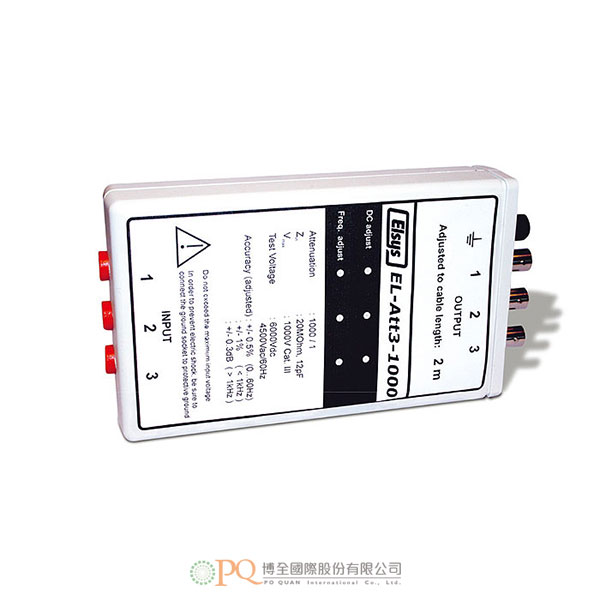

3-Channel 1000:1 Precision Attenuator 型號：EL-ATT3-1000
  • Input: 3x 4mm Safety plug, touch protected along IEC/EN 61010-1,
  • 1x 4 mm plug protective GND
  • Attenuation: 1000 : 1
加入洽詢
Features Specifications
    • Input: 3x 4mm Safety plug, touch protected along IEC/EN 61010-1,
    • 1x 4 mm plug protective GND
    • Attenuation: 1000 : 1
    • Zin: 20 MOhm, 12 pF
    • Vmax: 1000V Cat. III
    • 5kV test voltage
    • Accuracy :
      DC bis 60 Hz: ± 0.5 % :
      < 1.1 kHz: ± 1.0 %:
      > 1.1 kHz: ± 0.3 dB
    • Dimensions: 95 x 165 x 35 mm, 0.4 kg
    • Output: 3x BNC connectors

  • ★ 詳細規格請洽詢，我們將有專業人員為您服務！

    Parameter Specification
    Input 3 Safety Plugs 4 mm
    Attenuation 1000 : 1
    Zin 20 MO, 12 pF
    Vmax 1000 V Cat. III
    Test Voltage 6000 V DC
    4500 V AC (60 Hz)
      Accuracy (adjusted) ± 0.5 %                 DC ... 60 Hz
    ± 1.0 %                 < 1.1 kHz
    ± 0.3 dB                 > 1.1 kHz
    Dimensions 95 x 165 x 35 mm
    Output BNC
