Elsys > 衰滅器
05_3-Channel_PQ

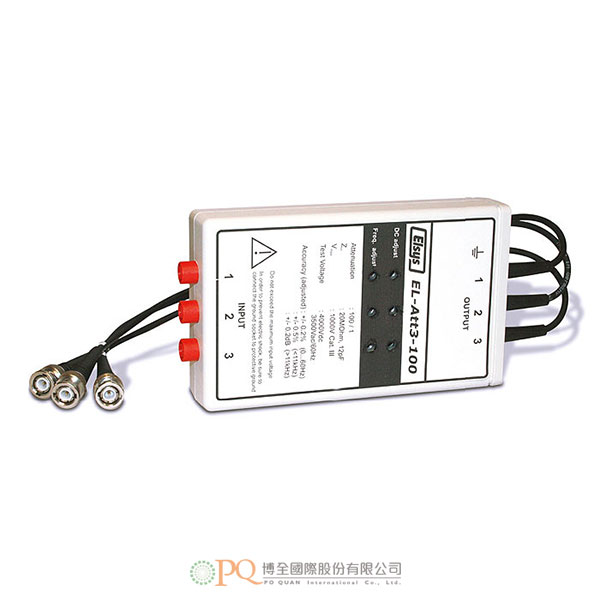

3-Channel 100:1 Precision Attenuator

3-Channel 100:1 Precision Attenuator 型號：EL-ATT3-100
  • Input: 3x 4mm Safety Plugs, touch protected along IEC/EN 61010-1
  • 1x 4 mm plug protective GND
  • Attenuation: 100 : 1
  • Zin: 20 MOhm, 12 pF
加入洽詢
Features Specifications
    • Input: 3x 4mm Safety Plugs, touch protected along IEC/EN 61010-1
    • 1x 4 mm plug protective GND
    • Attenuation: 100 : 1
    • Zin: 20 MOhm, 12 pF
    • Vmax: 1000V Cat. III
    • Accuracy :
      DC bis 60 Hz: ± 0.2 % :
      < 11 kHz: ± 0.5 %:
      > 11 kHz: ± 0.2 dB
    • Dimensions: 95 x 165 x 35 mm, 0.4 kg
    • Cable length: 200 cm

  • ★ 詳細規格請洽詢，我們將有專業人員為您服務！

    Parameter Specification
    Input 3 Safety Plugs 4 mm
    Attenuation 100 : 1
    Zin 20 MO, 12 pF
    Vmax 1000 V Cat. III
    Test Voltage 4000 V DC
    3500 V AC (60 Hz)
    Accuracy (adjusted) ± 0.2 %                 DC ... 60 Hz
    ± 0.5 %                 < 11 kHz
    ± 0.2 dB                 > 11 kHz
    Dimensions 95 x 165 x 35 mm
    Cable length 200 cm
