Elsys > 衰滅器

05_2-Channel_PQ

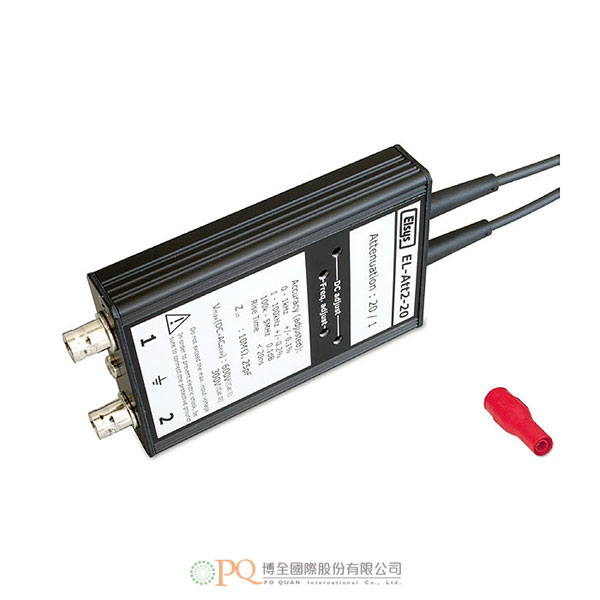

2-Channel 20:1Precision Attenuator

2-Channel 20:1Precision Attenuator 型號：EL-ATT2-20

Input: 2 BNC with adaptor plug 4 mm 1 socket 4 mm (System GND)
Attenuation: 20 : 1
Zin: 10 MOhm, 25 pF

Features Specifications

- Input: 2 BNC with adaptor plug 4 mm 1 socket 4 mm (System GND)
- Attenuation: 20 : 1
- Zin: 10 MOhm, 25 pF
- Vmax (DC + ACpeak): 600 V Cat. I, 300 V Cat. II
- Accuracy (adjusted):
  DC...1 kHz ± 0.1 %
  1 - 100 kHz ± 0.2 %
  0.2 - 2 MHz ± 0.2 dB
- Dimensions: 70 x 120 x 20 mm, 0.3 kg
- Cable length: 115 cm

★ 詳細規格請洽詢，我們將有專業人員為您服務！

Parameter	Specification
Input	2 BNC with adaptor plug 4 mm 1 Plug 4 mm for system GND
Attenuation	20 : 1
Zin	10 MO, 25 pF
Vmax	600 V Cat. I, 300 V Cat. II
Accuracy (adjusted)	± 0.1 % DC ... 1 kHz ± 0.2 % 1 ... 100 kHz ± 0.2 dB 0.2 ... 2 MHz
Dimensions	70 x 120 x 20 mm
Cable length	115 cm
