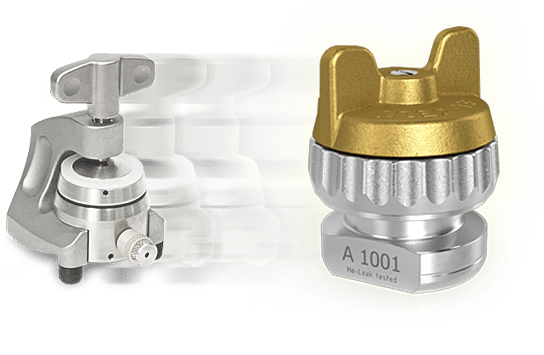

EL-Cell GmbH新的PAT系列測試電治具與它們的前一代的ECC系列相比具有更多優勢。

• 不再需要乾燥和清潔治具零件。
• 由於採用了環形參考電極，所以半電池阻抗量測效果極佳。
• 易於使用的無電纜設計，防止接線上的雜亂，並節省了時間和精力。只需插入PAT擴充基座或PAT電池測試儀，就可以開始進行特性分析。
• 重新設計，改進了密封性，使其具有更好的長期穩定性。
• 具有專利的PAT-核心概念，即用型治具元件，大大減少了組裝時間。
• 來自EL-CELL的完美匹配的恒電位儀，可用於改善工作流程和提升生產力。

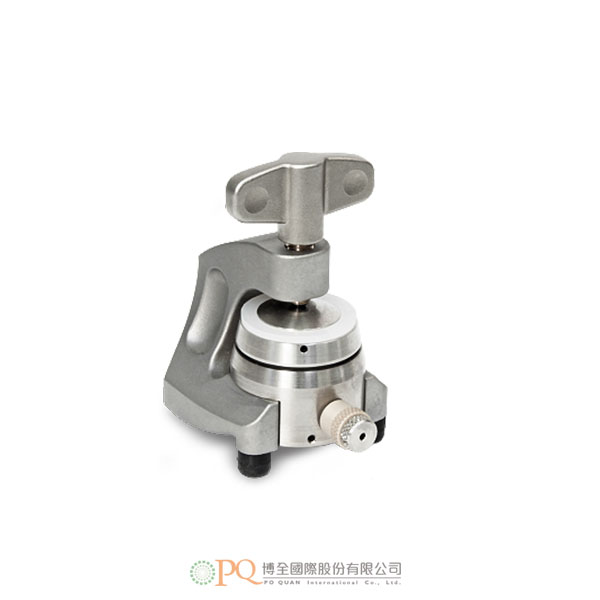

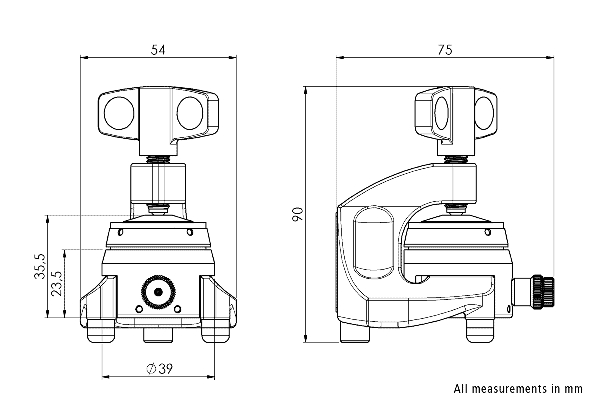

ECC-Ref電化學治具專門用於揭示三極式配置的無電解質電池和電容器系統。一個典型的應用是對一個完整的鋰離子電池（如石墨陽極和鋰金屬氧化物陰極）與鋰金屬基準的表徵。附有重新安裝的套件，可用於二極式配置的ECC-Ref治具，從而將ECC-Ref轉換為ECC-Std測試治具。

與電解質接觸的治具零件是由不銹鋼和PEEK製成，因此可以承受鋰離子電池和非電解質超級電容器技術中使用的所有常見非電解質。

Our new PAT series test cells offer many advantages over their ECC predecessors:

• No more drying and cleaning of cell components
• Superior half-cell impedance measurements due to the ring-shaped reference electrode
• Easy-to-use cableless design prevents cable clutter and saves time and effort.  Just insert into a PAT docking station or PAT battery tester and start characterization.
• Reworked cell design with improved sealings for much better long-term stability
• Patented PAT-Core concept with ready-to-use cell components vastly reduces assembly times
• Perfectly matched potentiostats from EL-CELL available for improved workflow and productivity

The ECC-Ref electrochemical cell is dedicated to the characterization of aprotic battery and capacitor systems in three-electrode configuration. A typical application is the characterization of a full lithium-ion battery (e.g. graphite anode and lithium metal oxide cathode) with a lithium metal reference. A re-fitting kit is available to use the ECC-Ref cell in two-electrode configuration, thus converting the ECC-Ref into the ECC-Std test cell.

Cell parts that come in contact with the electrolyte are made of stainless steel and PEEK and can thus withstand all common aprotic organic electrolytes used in lithium-ion battery and aprotic supercapacitor technology. Current collectors are also available in many other metals like 316L (1.4404), gold and tantalum.
