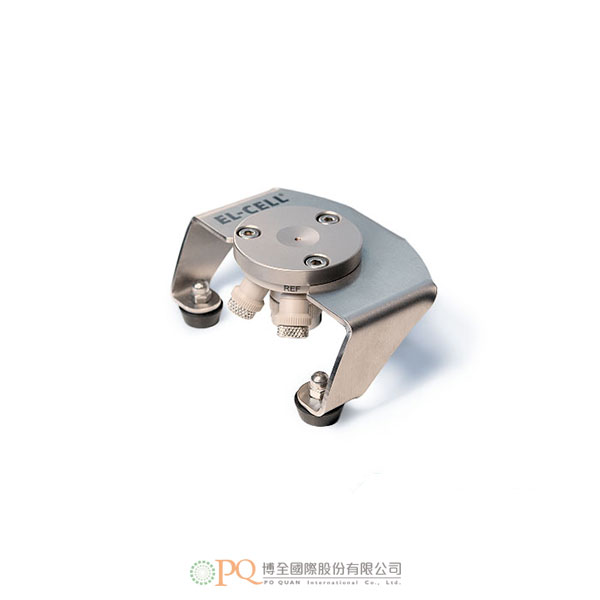

Test cell for optical characterization in the reflective mode with face-to-face arrangement of electrodes. For aqueous electrochemistry.

Product description
The ECC-Opto-Std-Aqu test cell serves to monitor the optical properties of an electrode material in the course of electrochemical charging. For this purpose, the working electrode (WE) material, which is supported on a meshed or holed current collector, is placed right below the optical window. This WE is sandwiched from below with a glass fiber separator and an appropriate counter electrode (CE).

This way, the optical instrument “looks” from the top through the optical window onto the backside of the electrode material. Typical instrumentations include optical and confocal Raman microscopy in the reflection mode. Special window materials such as saphire, beryllium, polyimide are available. Please refer to the separate manual of the ECC-Opto-Std.

Gallery

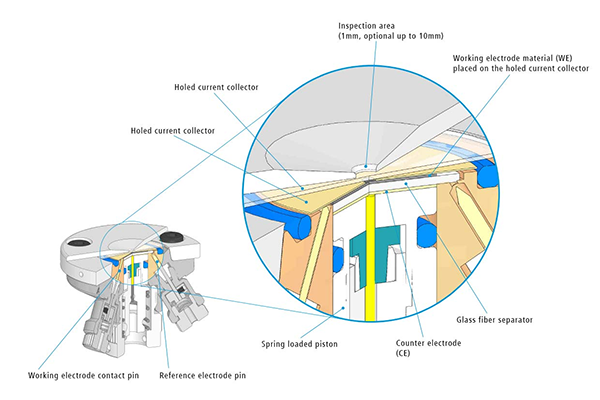

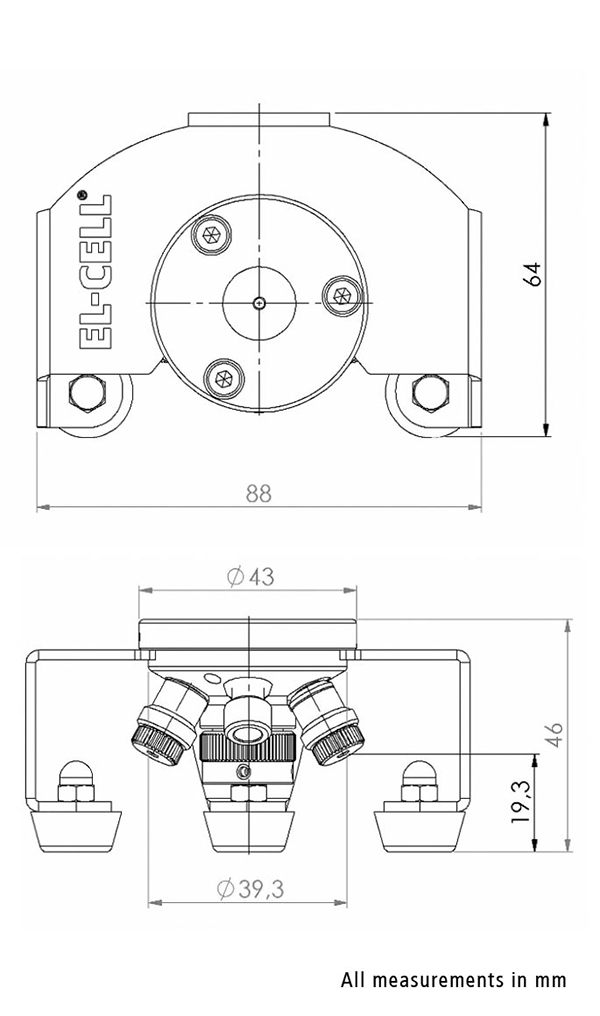

Schematic view of the ECC-Opto-Std-Aqu

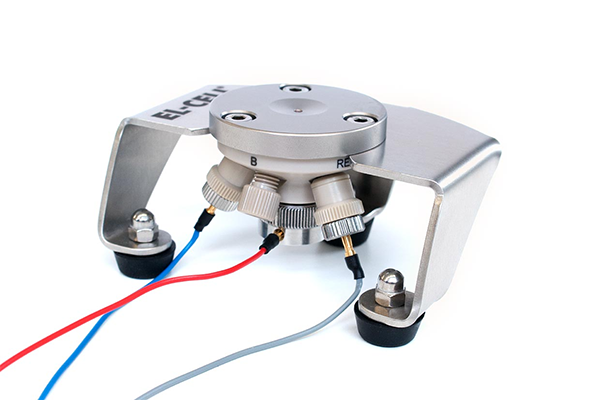

ECC-Opto-Std-Aqu with wire connections
