ECC-Opto-Gas

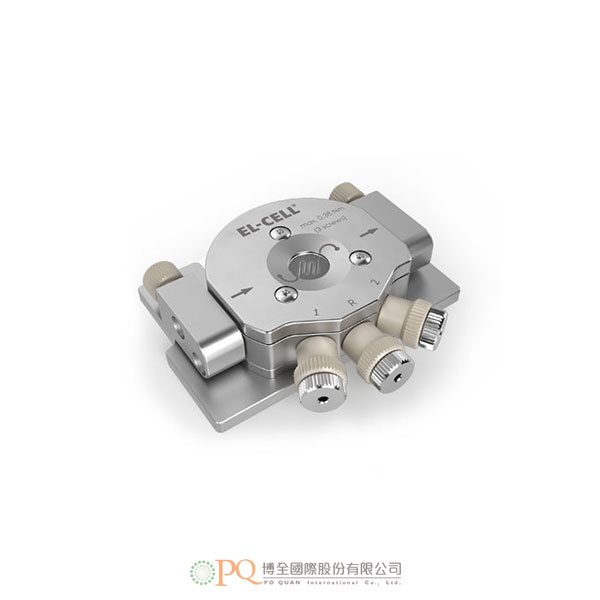

ECC-Opto-Gas 型號:ECC-Opto-Gas

Test cell for optical characterization of gas diffusion electrodes in metal-air batteries.

  • In-situ test cell for the optical characterization of gas diffusion electrodes (GDE) in aprotic organic electrolytes.
  • Minimized dimensions suitable for light and Raman microscopes working in the reflective mode
  • Test cell for optical characterization of gas diffusion electrodes in metal-air batteries.

    Product description
    The ECC-Opto-Gas is an in-situ test cell for the optical characterization of gas diffusion electrodes (GDE) in metal-air batteries. The cell features a sapphire window with a meander-shaped flow field, which can be purged with gas during charge/discharge. The ECC-Opto-Gas can be mounted on the stage of almost any light or Raman microscope in order to “look” through the transparent window onto the backside of the GDE. The cell is equipped for use with aprotic organic electrolytes.

    Gallery

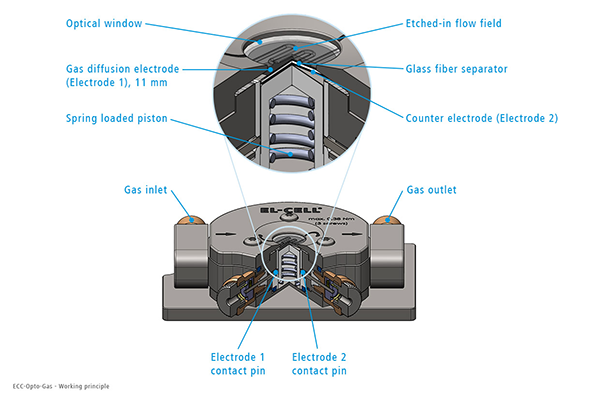

    ECC-Opto-Gas – Working principle

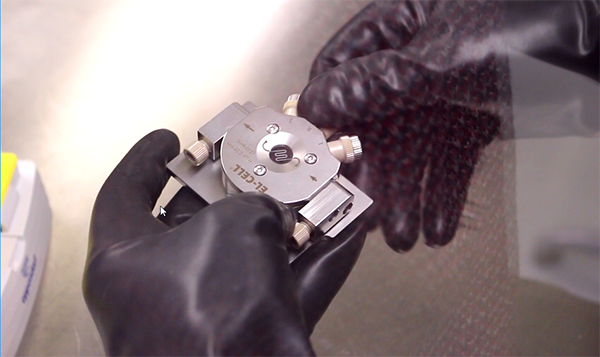

    ECC-Opto-Gas inside the glove box

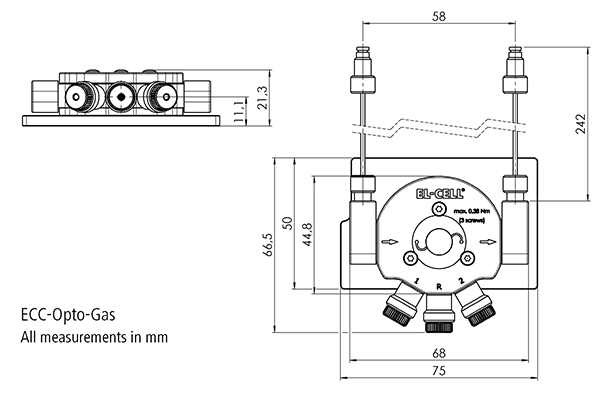

  • Height 21.3 mm
    Width 75 mm
    Depth 66.5 mm
    Electrode diameter 12 mm
    Electrolyte volume min. 0.04 ml
    Separator diameter 12.5 mm
    Weight 340 g
