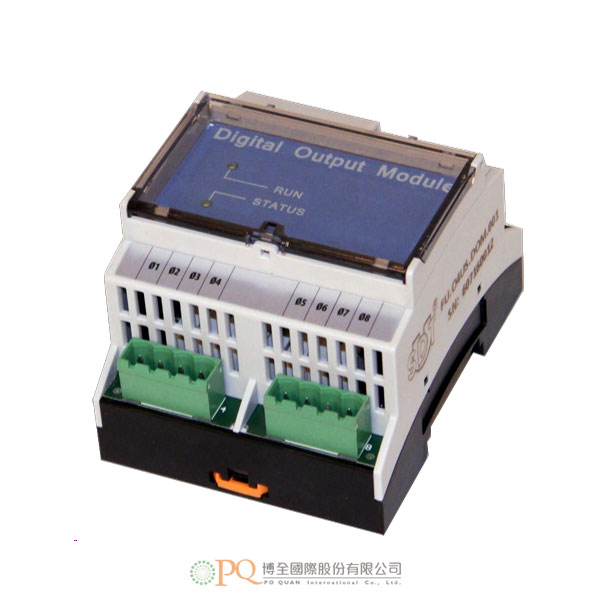

數位輸出模組 (需搭配主機 Online4US)

一般

功能

數字輸出，用於系統健康狀況警報

處裡器

ARM Cortex-M3 @ 72MHz

輸出通道

8個電絕緣數字量輸出

環境

操作溫度

-20 to +55 °C (-4 to 131°F)

基本

材質

聚碳酸酯纖維

尺寸

71.6x89.7x54.9 mm (2.80”x3.50”x2.13”)

安裝

35 mm DIN-rail

重量

130g (4.59oz)

電源

電源供應

24VDC +/- 10% （通過內部DIN導軌連接使用主電源，無需外部接線）

功耗

≈50mA

電力

電源參考

3VDC – 30VDC外部電源（需要外部接線）

輸出電壓高狀態

內部連接到外部電源參考正電壓

輸出電壓低態

內部連接到外部電源參考負壓

最小切換時間

250 ms

General

Function

Digital outputs for system health condition alerts

Processor

ARM Cortex-M3 @ 72MHz

Output channel

8 electrically insulated digital outputs

Environmental

Operating temperature range

-20 to +55 °C | -4 to 131°F

Mechanical

Housing material

Polycarbonate

Dimensions housing

71.6x89.7x54.9 mm | 2.80”x3.50”x2.13”

Mounting

35 mm DIN-rail

Weight

130g | 4.59oz

Power

Power supply

24VDC +/- 10% (uses main power supply through internal DIN-rail connection, no external wiring is needed)

Power consumption

≈50mA

Electrical

Power reference

3VDC – 30VDC external power supply (external wiring is needed)

Output voltage high state

Internally connected to external power reference positive voltage

Output voltage low state

Internally pulled down to external power reference negative voltage

Minimum switching time

250 ms
