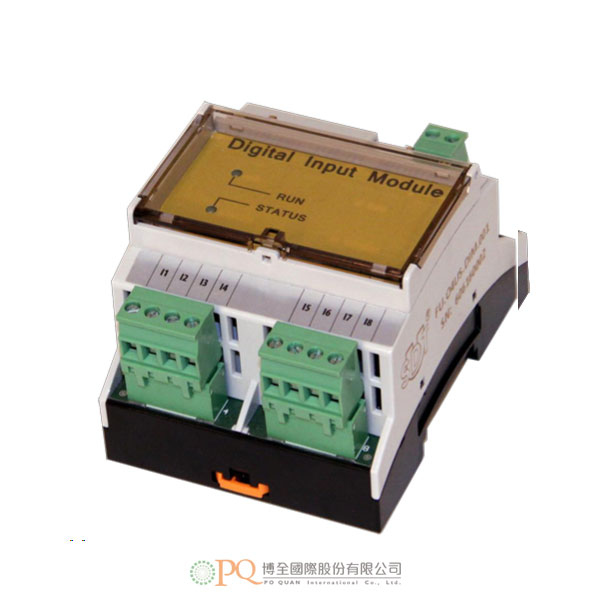

數位輸入模組 (需搭配主機 Online4US)

一般

功能

用於信號採集觸發的數字輸入

處裡器

ARM Cortex-M3 @ 72MHz

輸入通道

8個電絕緣數字輸入

環境

操作環境溫度

-20 to +55 °C (-4 to 131°F)

基本

材質

聚碳酸酯纖維

尺寸

71.6x89.7x54.9 mm (2.80”x3.50”x2.13”)

安裝

35 mm DIN-rail

 重量

130g (.59o)

電源

供應電源

24VDC +/- 10% （通過內部DIN導軌連接使用主電源，無需外部佈線）

功耗

≈50mA

電力

電源參考

3VDC – 30VDC外部電源（需要外部接線）

最小輸入電壓

3VDC

最大入電壓

30VDC

最小切換時間

250 ms

General

Function

Digital input for signal acquisition triggering

Processor

ARM Cortex-M3 @ 72MHz

Input channel

8 electrically insulated digital inputs

Environmental

Operating temperature range

-20 to +55 °C | -4 to 131°F

Mechanical

Housing material

Polycarbonate

Dimensions housing

71.6x89.7x54.9 mm | 2.80”x3.50”x2.13”

Mounting

35 mm DIN-rail

Weight

130g | 4.59oz

Power

Power supply

24VDC +/- 10% (uses main power supply through internal DIN-rail  connection, no external wiring is needed)

Power consumption

≈50mA

Electrical

Power reference

3VDC – 30VDC external power supply (external wiring is needed)

Minimum input voltage

3VDC

Maximum Input voltage

30VDC

Minimum switching time

250 ms
