AstroNova > 資料蒐集|暫態波形記錄器系列

攜行式8-32通道高速暫態波形記錄器

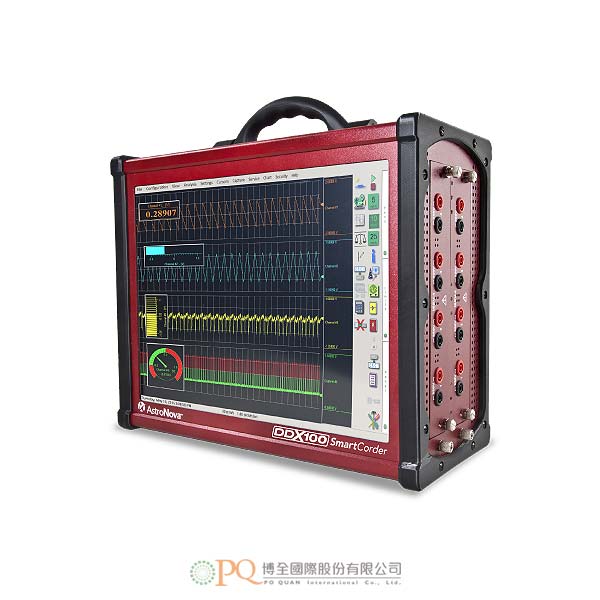

AstroNova SmartCorder® DDX-100 Portable Data Acquisition System 型號：SmartCorder® DDX-100

SmartCorder®DDX-100是一款全新的攜行式資料擷取系統，它囊括了所有您須要用於記錄、查看及分析資料的功能於單一的設備中。

加入洽詢

產品特點產品規格 Features Specifications

- SmartCorder®DDX-100是一款全新的攜行式資料擷取系統，它囊括了所有您須要用於記錄、查看及分析資料的功能於一件設備中。
- 設計小巧輕量及使用電池操作，能非常便利的用於工業環境、測試實驗室、車輛測試或現場服務應用中。
- 應用包括：航天航空、汽車、電力及公用事業、製造、軌道交通、研究發展、產品及生命週期測試。
- 提供使用者功能強大的8-32通道，為許多先前Dash產品的升級機型，改良的重點包括：
  - 更小的體積、更輕的重量及更具吸引力的價位。
  - 更多的新功能及更高階的性能。
- SmartCorder DDX-100適用於需要攜帶輕量的資料蒐集系統以隨時隨地進行資料記錄的應用，具備許多出色的功能，包括：
  - 每台8-32個通道，可選擇4個信號輸入板。
  - 信號輸入類型，例如：電壓、熱電偶、RTD及IEPE傳感器。
  - 8個0-5V分離的（TTL）輸入端。
  - 200k次取樣/秒/通道，每通道具有個別的A/D，可完全同步的記錄。
  - 包含數位濾波、計數器功能及先進的處理功能。
  - 標準配備一個500GB硬碟（可選購固態硬碟）。
  - 在一次的資料擷取中，可選擇3個不同的取樣率。
  - USB 3.0、千兆以太網路及HDMI視訊輸出。
  - 提供IRIG、CAN匯流排及GPS選購。
- SmartCorder DDX-100採用AstroNova™知名的具有操作簡易性和資料完整性的優異軟體，進行擷取、處理及將所有資料儲存在內部。對於更高通道數的應用，SmartCorder DDX-100可以結合AstroNova Daxus資料擷取系統，在完全同步之下，記錄數百個通道的資料。
- 特點：
  - 即時：在15吋觸控螢幕上檢視捲動波形型式的資料。
  - 波形模式：DSO型式的顯示，有助於詳細的檢視高速信號或當偏好一個固定波形的檢視時。內建的波形記錄功能，讓使用者既能記錄高解析的資料捕捉以找出尖波，又能將數天、數週或數月的長期趨勢記錄全都放在一個記錄中。
  - 檢視：使用此功能，可深入檢視當前正在進行記錄或已經記錄的資料，並且是設計用於分析，包括擴展、壓縮、搜尋功能、測量…等。
  - 工程單位：採用線性比例換算及設定在任何通道上，以適應不同的應用需求。資料可採用熟悉的單位檢視，例如A、PSI、RPM、Ft-lb…等。
  - 儀錶套組：提供多種儀錶形式供使用者選擇，包括量規、數值、水平或垂直桿、指針及LED讀值。顯示的螢幕資料，透過內建的儀錶套組，可以有比較容易閱讀的視覺形式。這些儀表套組，可以縮放及放置在螢幕上的任何位置。
  - 游標：簡單好用的游標，可用於立即測量，其功能例如：時間、頻率、平均值、最小/最大值及峰值-峰值斜率、RMS、總和、平方和、方差、標準差及面積。
  - 衍生的通道：以波形資料為基礎的功能強大的即時或後置擷取的數學運算通道，功能包括加、減、乘、除、平方根、對數、三角函數等。
  - 體積：高300 mm x 寬366mm W x 深168mm，僅重8.4kg。
- 選購的介面：
  - CAN匯流排：適於汽車測試及其它應用。
  - IRIG時間碼：適於航空航天應用。
  - GPS時間及定位標記：適於運輸或其它應用。

系統規格
數位I/O	8個事件、警報、可設定的I/O
操作模式	波形、檢視、即時（曲線圖）
最大的類比模組數	2個
最大的類比波形數	32個（依模組而定）
事件輸入端（TTL）	8個
彩色顯示幕
類型	主動矩陣式彩色LCD（TFT），具LED背光
檢視範圍	對角15吋
解析度	1024 x 768像素
觸控	全螢幕電阻式
資料擷取
記錄方式	內部SATA硬碟
最大取樣率	200,000次取樣/秒/通道
最小取樣率	1次取樣/分
多重取樣率	有，最多3個不同的取樣率
總容量	500GB（可選購SSD）
最大記錄	依硬碟容量而定
時間標記	時間及日期自動和資料一起儲存
標題	關於單位、範圍、取樣率等資訊，與資料一起儲存
事件	隨資料一同記錄
觸發點	前置及後置觸發量可由使用者調整
自動重新預觸	允許自動堆疊捕捉資料
快速查看	有
總體規格
最大通道數	32個（依信號輸入板而定）
工程單位	使用者以y=mx+b比例換算設定的單位
前置擷取濾波器	低通、高通、帶通、帶止、RMS
進階的數位信號處理	RMS、積分、微分
後置擷取濾波器	低通、高通、帶通、帶止、RMS
數學功能	加、減、乘、除、三角函數、統計及其它一般的數學功能
校正	半自動對外部參考

詳細的模組規格及選購，歡迎洽詢。

- The SmartCorder® DDX-100 is an all new portable data acquisition system that includes everything you need to record, review and analyze data in one piece of test equipment. Its compact size, lightweight design and battery operation make it a very convenient system for use in industrial environments, test labs, and in vehicle testing or field service applications.
- Applications:
  - Aerospace
  - Automotive
  - Power and Utilities
  - Manufacturing
  - Rail Transportation
  - Research and Development
  - Product and Life Cycle Testing
- It provides users with a powerful 8-32 channel portable data acquisition system which is the successor to many previous Dash products. These improvements include:
  - Reduced weight and size
  - Attractive pricing
  - Many more new features and capabilities
- Perfect for any application requiring a lightweight portable data acquisition system for data recording when and where it is needed; the SmartCorder DDX-100 accepts 2 signal input boards and offers a number of excellent features including:
  - 8 – 32 channels per unit with a choice of four signal input boards
  - Signal input types such as: Voltage, Thermocouple, RTD & IEPE Transducer
  - Eight 0-5 volt discrete (TTL) inputs
  - 200k samples/second/channel with individual A/Ds for synchronous recording
  - Digital filtering, counter functions and other advanced processing included
  - 500GB hard drive standard (optional solid state drives available)
  - 3 different sample rates selectable within one data capture
  - USB 3.0, Gigabit Ethernet and HDMI video output
  - IRIG, CAN Bus and GPS options available
- SmartCorder DDX-100 acquires, processes and stores all data internally with AstroNova™ superior software known for ease of use and data integrity. For higher channel count applications, the SmartCorder DDX-100 can be combined with AstroNova Daxus data acquisition systems to record hundreds of channels of data with complete synchronization.
- SMARTCORDER DDX-100 FEATURES:
  - Real Time: View data in a scrolling waveform style on the 15 inch touch panel display.
  - Scope Mode: DSO-style display is useful for viewing high speed signals in detail or where a stationary waveform view is preferred. The embedded scope capture feature enables the user to record both high resolution captures to find glitches as well as long term trending records for days, weeks or months all in one record.
  - Review: With the review capability, users can look into records that are currently being recorded. This capability allows the user to review captured data and is designed for analysis including expansion, compression, search features, measurements and much more.
  - Engineering Units: Choose to set up on any channel with linear scaling for any application. Data can be viewed in familiar terms such as Amps, PSI, RPM, Ft-lbs., etc.
  - Meter Package: Choose from various meter formats including gage, numeric, horizontal or vertical bar, and needle and LED readouts. The display screen data has an easy to read visual format with the built in meter package. These meters can be sized and placed anywhere on screen.
  - Cursors: Easy to use cursors allow immediate measurements with functions such as: Time, Frequency, Average, Min/Max & Peak-Peak Slope, RMS, Sum, Sum of Squares, Variance, Standard Deviation and Area.
  - Derived Channels: Powerful real time or post capture math calculations based on the waveform data. Functions include addition, subtraction, multiplication, division, square root, logarithmic, trigonometric and much more.
  - Dimensions: 300 mm H x 366mm W x 168mm D (11.8” H x 14.4” W x 6.6” D) and weighing just 8.4kg (18.5lbs).
- OPTIONAL INTERFACES:
  - CAN Bus for Automotive Testing and Other Applications
  - IRIG Time Code for Aerospace Applications
  - GPS Time and Location Stamping for Transportation or Other Applications

SYSTEM
Digital I/O	8 Events, alarms, programmable I/O
Operational Modes	Scope, review, real-time (strip-chart)
Maximum Analog Modules	2
Maximum Analog Waveforms	32 (module dependent)
Event Inputs (TTL)	8
COLOR DISPLAY
Type	Active Color Matrix LCD (TFT) w/ LED backlight
Viewing Area	15” diagonal
Resolution	1024 x 768
Touch	Full screen resistive
DATA ACQUISITION
Recording Method	Internal SATA disk drive
Maximum Sample Rate	200,000 samples/second/channel
Minimum Sample Rate	1 sample/minute
Multiple Sample Rates	Yes, up to 3 different rates
Total Capacity	500 GB (SSD options available)
Maximum Record	Limited to drive size
Time Stamp	Time and Date automatically saved with data
Header	Information on units, range, sample rates, etc. saved with data
Events	Recorded with data
Trigger Point	Pre and post-trigger is user adjustable
Auto Re Arm	Allows automatic stacking of captures
QuickLook	Yes
GENERAL
Maximum Channels	32
Engineering Units	User defined units with y=mx+b scaling
Pre-capture Filter	Lowpass, highpass, bandpass, bandstop, RMS
Advanced DSP	RMS, Integration, Differentiation
Post-capture Filter	Lowpass, highpass, bandpass, bandstop, RMS
Math Functions	Addition, Subtraction, Multiplication, Division, Trigonometric, Statistical and other general math functions
Calibration	Semi-automated to external reference

Please feel free to contact for detailed specifications, accessories, and options.
