桌上型碳塗佈機

DESK CARBON COATER 型號：DCR

台式碳塗佈機 - DCR 是一種緊湊型碳纖維塗層系統，適用於掃描電子顯微鏡 (SEM)、穿透式電子顯微鏡 (TEM) 和 X 射線分析 (EDX) 中的樣品製備。

加入洽詢

產品特點產品規格 Features Specifications

台式碳塗佈機 - DCR 是一種緊湊型碳纖維塗層系統，適用於掃描電子顯微鏡 (SEM)、穿透式電子顯微鏡 (TEM) 和 X 射線分析 (EDX) 中的樣品製備。
台式碳塗佈機 - DCR 的特點

用於即時厚度測量的石英晶體監測系統（精度為 1nm）。

脈衝或閃蒸碳纖維塗佈模式。

視覺式的觸控螢幕可良好控制和監控塗佈過程，並能快速輸入數據。

友善的用戶軟體介面，並可通過網路更新。

可記錄和繪製塗佈參數圖。

易於更換的試樣台（旋轉台形式為標準配置）。

符合 CE 標準。

Vac coat 產品在全球範圍內都有公共和產品責任保險，以防 Vac coat 系統造成任何財產損失或人身傷害。
脈衝碳纖維蒸鍍

台式真空碳塗佈系統 - DCR 能夠進行脈衝碳纖維蒸鍍。短脈衝可提供更有效掌控的沉積狀態，並顯著減少與傳統碳沉積相關的碎屑量。

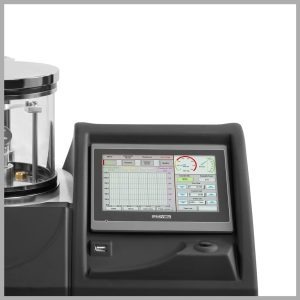

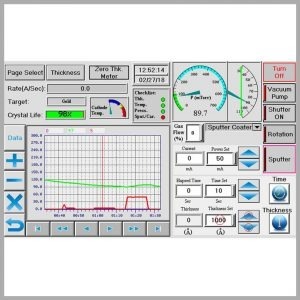

帶彩色顯示器的觸控螢幕操控

台式碳塗佈機配備了 7”彩色觸控螢幕，具有全自動控制和數據輸入功能，即使沒有經驗的用戶也能操作。真空、電流和沈積訊息可通過觸控螢幕上以數值資料或曲線的形式顯示。最後 300 次濺鍍資訊都可儲存在歷史紀錄頁上。

樣品支架

DCR 可根據用戶要求配備不同的樣品台配置。樣品台可旋轉，調整高度，更換方便。旋轉式行星樣品台是對多孔樣品進行均勻塗佈的理想選擇。
- Two-stage, direct drive 4 m3/h, rotary vane pump
- Ultimate vacuum: Less than 50 mtorr
- 170 mm OD x 140 mm pyrex cylinder chamber
- 0-25A switching pulsed DC power supply
- Dimensions: 450 x 500 x 370 mm(H x W x D)
- Utilities: 220V-240V, 50/60HZ, 10A
- Rotational sample holder with adjustable tilt and height
- Sample holder with planetary rotation (Optional)
- Electronic shutter
- Manual or full automatic control
- Precision electronic leak valve for fine control of vacuum pressure
- Real time plots of coating parameters
- Simple transfer of coating data plots via USB port to PC
- Shipping weight: 46 Kg
- Plasma Cleaning
Options and Accessories
The Carbon Coating System has following options and accessories:
- Quartz crystal sensor
- Sample Planetary Rotation System (optional)
- Spare vacuum glass cylindrical chamber
- Carbon fiber
- Sealing gaskets
Desk Carbon Coater – DCR is a compact carbon fiber coating system suitable for Sample Preparation for the use in scanning electron microscope (SEM), transmission electron microscope (TEM), and X-Ray analysis (EDX).
Features of Desk Carbon Coater – DCR

Quartz crystal monitoring system used for real time thickness measurement (1nm precision)

Pulsed or flash carbon fiber coating modes

Intuitive touch screen to control and monitor the coating process with a capability of rapid data input

User friendly software that can be updated via network

Able to record and plot coating parameters graphs

Easy-to-change specimen stages (rotation stage as standard)

Two-year warranty

CE conformity

Vac coat Products are covered worldwide by both public and product Liability Insurance in case any property damage or personal injury happens caused by the Vac Coat systems.
Pulsed Carbon Fiber Evaporation

The desk vacuum carbon coating system – DCR is able to perform pulsed carbon fiber evaporation. Short pulses provide more controlled deposition and significantly reduces the amount of debris associated with traditional carbon deposition.

Touch Screen Control with Colorful Display

Desk carbon coater is equipped with a 7” colored touch screen with full automatic control and data input that can be operated by even inexperienced users. The vacuum, current, and deposition information can be monitored as digital data or curves on the touch screen. The last 300 coatings information can be detected in the history page.

Sample Holder

The DCR can be equipped with different sample stage configurations depending on the user requirements. The sample stages are rotatable with adjustable height and can be changed easily. The rotary planetary sample stage is a good choice for uniform coating of porous specimens.
- Two-stage, direct drive 4 m3/h, rotary vane pump
- Ultimate vacuum: Less than 50 mtorr
- 170 mm OD x 140 mm pyrex cylinder chamber
- 0-25A switching pulsed DC power supply
- Dimensions: 450 x 500 x 370 mm(H x W x D)
- Utilities: 220V-240V, 50/60HZ, 10A
- Rotational sample holder with adjustable tilt and height
- Sample holder with planetary rotation (Optional)
- Electronic shutter
- Manual or full automatic control
- Precision electronic leak valve for fine control of vacuum pressure
- Real time plots of coating parameters
- Simple transfer of coating data plots via USB port to PC
- Shipping weight: 46 Kg
- Plasma Cleaning
Options and Accessories
The Carbon Coating System has following options and accessories:
- Quartz crystal sensor
- Sample Planetary Rotation System (optional)
- Spare vacuum glass cylindrical chamber
- Carbon fiber
- Sealing gaskets
