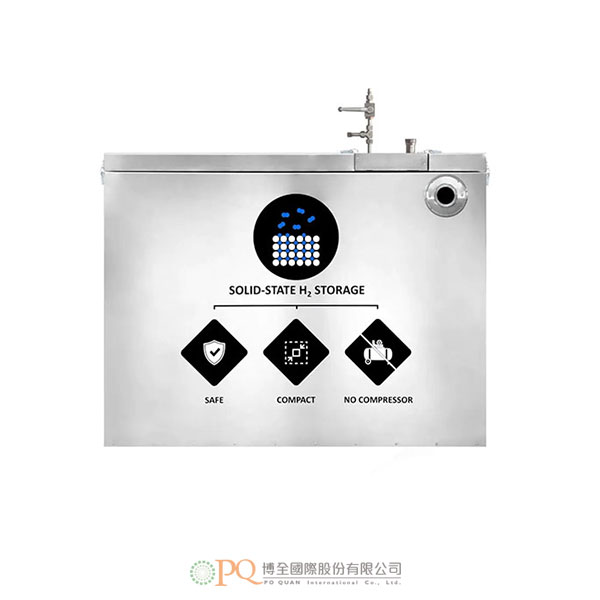

DASH 固態儲氫裝置

DASH Storage Modules 型號：DASH Storage Modules

用於密集和安全儲存氫氣的固態儲氫系統。

產品特點產品規格 Features Specifications

用於密集和安全儲存氫氣的固態儲氫系統。

固態儲氫是以金屬氫化物、化學氫化物或奈米材料等為儲氫載體，通過化學吸附和物理吸附方式實現氫的儲存。固態儲氫解決方案由一系列固態儲氫模組按照一定設計固態儲氫系統，這包括固態儲氫模組、箱體、監測元件和其它附屬裝置。同時，儲存模組採用標準化的堆疊方式，以達到任何所需的存儲容量。

Storage Capacity	12.5 kg per module
Maximum charge flow (at 20°C)	150 Nl/min (0.8 kg/h)
Maximum discharge flow (at 20°C)	150 Nl/min (0.8 kg/h)
Refuelling pressure	35 bara
Discharging pressure	1.5 bara
Required H₂ purity	99.995%
Outlet H₂ purity	> 99.995%
External cooling/heating requirements	None
Outer dimension (L x W x H)	1200 mm x 928 mm x 1292 mm
Weight	1600 kg
Operating temperature	-20°C – 50°C
Expected service life	> 30 years
Communication interface	Project-specific

Solid-state hydrogen storage systems for the dense and safe storage of hydrogen.

DASH Storage Modules are solid-state hydrogen storage systems, in which hydrogen can be stored in the solid, atomic form within a special metallic structure. They excel through excellent safety properties, a very high volumetric density, and a very long lifetime. Since no ATEX zone is induced around the storages, they facilitate the execution of projects. The storage modules are built with standardized stacks to cover any desired storage capacity.

Storage Capacity	12.5 kg per module
Maximum charge flow (at 20°C)	150 Nl/min (0.8 kg/h)
Maximum discharge flow (at 20°C)	150 Nl/min (0.8 kg/h)
Refuelling pressure	35 bara
Discharging pressure	1.5 bara
Required H₂ purity	99.995%
Outlet H₂ purity	> 99.995%
External cooling/heating requirements	None
Outer dimension (L x W x H)	1200 mm x 928 mm x 1292 mm
Weight	1600 kg
Operating temperature	-20°C – 50°C
Expected service life	> 30 years
Communication interface	Project-specific
