HTW > 玻璃碳材料
HTW_Crystal_PQ

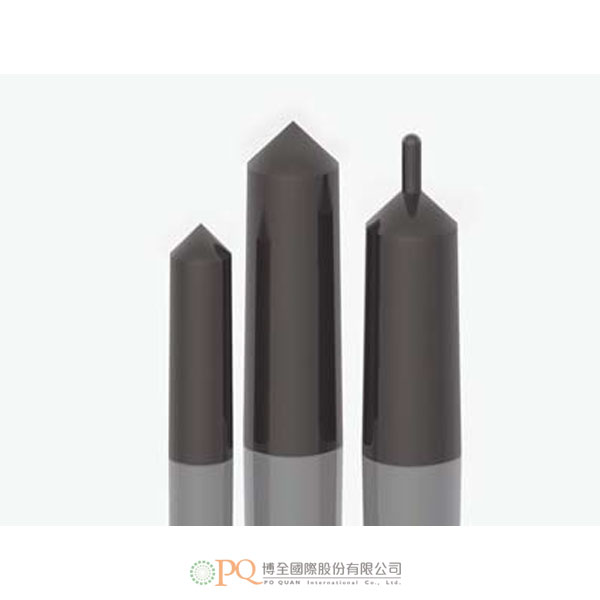

SIGRADUR G長晶坩堝

SIGRADUR G Crystal Growth Crucibles 型號：Crystal Growth Crucibles

特殊形狀玻璃碳材料

加入洽詢
產品特點 產品規格 Features Specifications

  • 特殊形狀玻璃碳材料

  • Type

    Volume ml

    d mm

    b mm

    h mm

    Angle °

    GCG 07

    7

    14

    14

    102

    90

    GCG 16

    16

    20

    18

    120

    120

    GCG 25

    25

    19

    19

    140

    60

    GCG 30

    28

    23

    19

    160

    30

    GCG 100

    95

    36

    36

    185

    30

    GCG 125

    125

    40

    38

    150

    90

    GCG 320*

    325

    62

    57

    205

    90

    GCG 400

    350

    57

    57

    197

    90

    *With seed crystal channel

  • Crucibles and boats made of glassy carbon SIGRADUR® G are available in many standard forms. Applications are crucible liners for electron beam evaporation sources, crystal growth crucibles and melting crucibles. Further we can offer to you numerous cylindrical and conical standard crucibles and custom-made products.

  • Type

    Volume ml

    d mm

    b mm

    h mm

    Angle °

    GCG 07

    7

    14

    14

    102

    90

    GCG 16

    16

    20

    18

    120

    120

    GCG 25

    25

    19

    19

    140

    60

    GCG 30

    28

    23

    19

    160

    30

    GCG 100

    95

    36

    36

    185

    30

    GCG 125

    125

    40

    38

    150

    90

    GCG 320*

    325

    62

    57

    205

    90

    GCG 400

    350

    57

    57

    197

    90

    *With seed crystal channel
