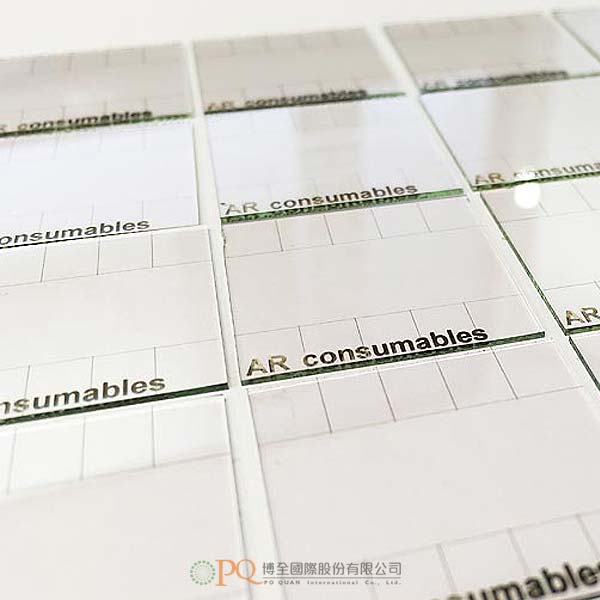

激光圖案化ITO和FTO基板

• High quality substrates for optoelectronic applications, i.e.
  • Liquid Crystal Displays (LCD) technology
  • Organic Light Emitting Diodes (OLED)
  • Organic Photovoltaics (OPV)
  • Perovskite Solar Cells
  • General Electrochemistry
  • Flat Antennas for Mobile Communictaion
  • Conducting glass/Transparent electrodes
• Customized pattern
• ITO- or FTO-coated glass
• Laser structured conductive layers with highest precision
• Substrate size up to 200×200 mm²

Transparent, conductive coatings on glass

• Electrical conductivity and optical
  transparency
• Homogeneously flat ITO/FTO coatings
• Low roughness
• Uniform transmission

Laser cut properties

Typically 10-20 μm width, no shunts,no spikes, no debris

General ITO glass properties

• OLED grade, polished, very low roughness,
  high transmission
• Standard conductivity range 7-20 Ohm/sq
• Glass thickness 0.7-1.1 mm

General FTO glass properties

• Low roughness
• Standard conductivity range: 7-13 Ohm/sq
• Glass thickness 1.8-3 mm
• >80% transmission
