完整的 XRF 實驗套件

可與新 MINI-X2 一起使用的升級版。 現在與 10W 射線管相容！

Amptek 的 EXP-2 完整的 XRF 實驗套件旨在幫助使用者通過 X射線螢光光譜儀（XRF）快速進行元素分析。 它包括 Amptek 提供的硬體和軟體。 組裝好此套件以及配置和校正好軟體后，就可以開始進行一些簡單的分析。 此套件為通用套件，並非專門為特定應用定製，但它可以用來構建定製系統。
完整的 XRF 實驗套件包含三個獨立的標正 Amptek 產品和一個獨特的機械夾具。 這些元件是：（1）X-123 光譜儀（包括探測器和 DP5 數位信號處理器）（2）10 Watt  Mini-X2 X 射線管（包括一個可安裝濾光片的准直器），（3）XRS-FP2 X 射線分析軟體，以及（4）EXP-2 機械夾具，用於提供輻射遮罩、安全聯鎖和樣品腔室。
XRF 套件可選配 Amptek SDD（25mm2）或Fast SDD®（25mm2 或 70mm2）探測器。 使用者必須準備一台具有三 （3） 個可用 USB 埠的 Windows XP SP3 或更高版本的 PC。


	完整的 XRF 系統包括 :  帶 SDD 或 Fast SDD® 探測器的 X-123 完整光譜儀 Mini-X2 USB 控制的 X 射線管 XRS-FP2 定量分析軟體 帶遮罩和樣品腔體的測試台 不鏽鋼 316（SS316）測試樣品 包含逐步組裝、操作說明的完整文件
	准直器和濾光片支架，專為 Mini-X X 射線管而設計，用於與完整的 XRF 實驗套件

如需了解更多信息，請立即聯繫我們！

Updated for use with the NEW MINI-X2.  Now comes standard with the 10W Mini-X2 X-ray tube!

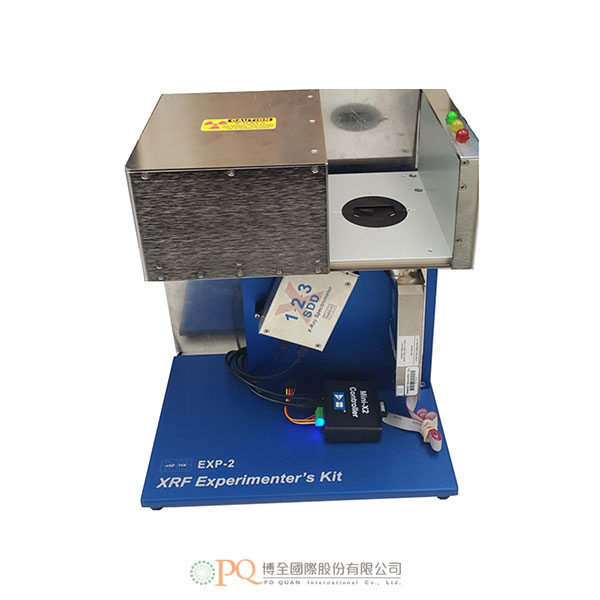

Amptek’s EXP-2 Complete Experimenter’s Kit is a package designed to help a user quickly begin doing elemental analysis via X-ray fluorescence (XRF). It includes hardware and software supplied by Amptek. Once this kit is assembled and the software configured and calibrated, one can begin doing simple analyses. This kit is general purpose, so is not tailored to a particular application, but can be the starting point for a customized system.

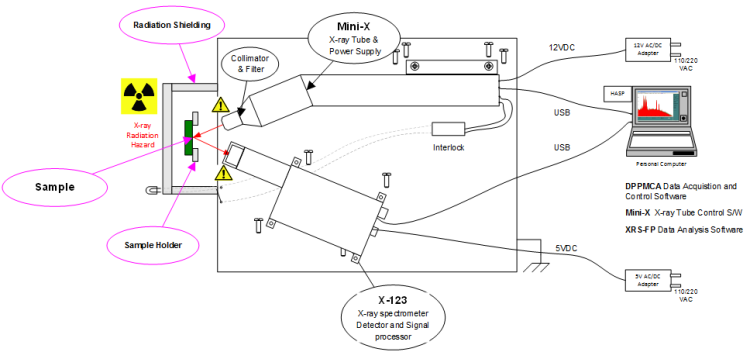

The Experimenter’s Kit combines three separate, standard Amptek products and a unique mechanical fixture. The standard components are (1) the X-123 FAST SDD spectrometer (which includes a detector and the DP5 digital signal processor), (2) the 10 Watt Mini-X2 X-ray tube (which includes a collimator with a place to mount filters), (3) XRS-FP2 X-ray analysis software, and (4) the EXP-2 mechanical fixture which provides radiation shielding, safety interlocks, and a sample chamber.

The standard XRF Kit configuration comes with the an X123 with Fast SDD® 25mm2 detector. The user must supply a modern Windows PC with three (3) available USB ports.

	Complete XRF System Includes X-123 Complete Spectrometer with Fast SDD® detector 10W Mini-X2 USB Controlled X-Ray Tube XRS-FP2 Quantitative Analysis Software Test stand with shielding and sample enclosure Stainless Steel 316 (SS316) test sample Complete documentation with step-by-step instructions

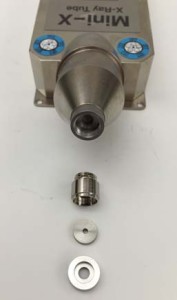

	Collimator and filter holder specifically designed for the Mini-X X-Ray tube ​​​​​​​when used with the Complete XRF Experimenter’s Kit

Contact us for more information today!
