中央單元模組 (需搭配主機 Online4US)

Online4US Module CUM/CPU (Central Unit Module) 型號：Central Unit Module

產品特點產品規格 Features Specifications

一般
功能	數據收集器和集中器
內部記憶體	4 GB （最高64 GB）
處裡器	ARM Cortex-M4/M0 Dual-Core @ 204MHz
顯示	顯示屏5英寸800x480電阻觸摸
外部端口	1 USB Host 2.0 1 RS-232 @ 38400-8-E-1 1 RS-485 @ 38400-8-E-1 1 RJ45 10/100T 乙太網
環境
操作環境溫度	-20 to +55 °C (-4 to 131F)
基本
材質	聚碳酸酯纖維
尺寸	71.6x89.7x54.9 mm (2.80”x3.50”x2.13)
安裝	35 mm DIN-rail
重量	145g\| 5.11oz)
電源
電源供應	24VDC +/- 10%
功耗	≈200mA (開啟顯示屏)
模塊支持
傳感器模塊支持	多達16個模塊（32個傳感器）
數位輸入/輸出模塊	最多支持3個模塊（8個輸入– 16個輸出）
模擬量輸入模塊	支持最多1個模塊（8個輸入）
通訊模塊支持	與工業調製解調器GSM / GPRS / EDGE / UMTS / HSPA / LTE網關兼容與工業協議轉換器網關兼容

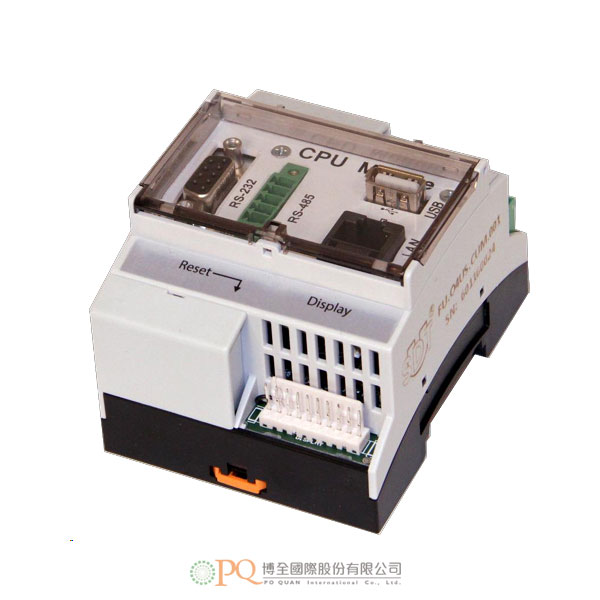

The CPU module is the heart of the hardware.
It manages the display, readings, modules, alarms and saves data.
The CPU module has a RS485, a RS232 and an ethernet connectors for alarms and data distribution to a PLC or a SCADA system (Supervisory Control and Data Acquisition).
It has an on/off switch that cuts the power of the Online4US but does not cut the power of the transformer.

General
Function	Data collector and centralizer
Internal Storage	4 GB (up to 64 GB on demand)
Processor	ARM Cortex-M4/M0 Dual-Core @ 204MHz
Display	5″ 800x480 Resistive touch
External Ports	1 USB Host 2.0 1 RS-232 @ 38400-8-E-1 1 RS-485 @ 38400-8-E-1 1 RJ45 10/100T Ethernet
Environmental
Operating temperature range	-20 to +55 °C \| -4 to 131°F
Mechanical
Housing material	Polycarbonate
Dimensions housing	71.6x89.7x54.9 mm \| 2.80”x3.50”x2.13”
Mounting	35 mm DIN-rail
Weight	145g \| 5.11oz
Power
Power supply	24VDC +/- 10%
Power consumption	≈200mA (display ON)
Modules support
Sensors module support	Up to 16 modules (32 sensors)
Digital Inputs/Outputs module support	Up to 3 modules (8 Inputs – 16 Outputs)
Analog Inputs module support	Up to 1 module (8 Inputs)
Communication module support	Compatible with industrial Modem GSM/GPRS/EDGE/UMTS/HSPA/LTE Gateway Compatible with industrial protocol converter gateway
