電錶測試儀

• Vector chart of three phase power network
• Measure of power network parameters (class 0.1 or 0.2)
• Range 0.001...10(100)(1000)(30/300/3000)A and 10...480V
• Testing of energy meters
• Voltage, current and power harmonics analysis
• Powering from measurement network

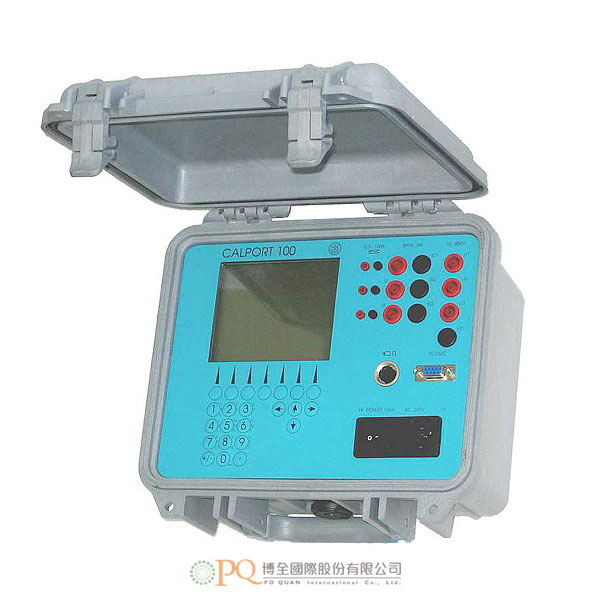

The Calport 100A set is put in the plastic case for carrying in close state and for working in open state with analyser in hard conditions on the site. Calport 100A set consists of:

• Calport 100A analyser class 0.1 or 0.2,
• power cord,
• fuse T0.25A, 250V, 5x20 (2pcs),
• set of safety voltage cables (4pcs),
• set of safety current cables up to 20A (6pcs),
• adapter with flexible Cu wire (6pcs),
• safety test clip Kleps (3pcs),
• safety crocodile test clip,
• CF100 photo head for counting LED flashing of meters and with "start/stop" button,
• user’s manual,
• guarantee certificate,
• manufacturer's calibration certificate.

Optionally the Calport 100A set may be equipped in:

• AKD100 additional accessories (handlers and terminals 42 pcs) of safety cables,
• CT100A electronic compensated clamps up to 100A (3pcs),
• CT1000A electronic compensated clamps up to 1000A (3pcs),
• Calprobe100 flexible clamps in range 30/300/3000A (3pcs) with converter,
• CF101 photo head for counting rotation of inductive meters wheel disc,
• UCF100 holder for CF100 and CF101 photo heads,
• CF102 photo head with holder for inductive meters and meters with LED,
• KAS100 transportation case for portable work,
• DR100 miniature thermal printer,
• DR200 miniature thermal printer for quick printing with accumulator,
• S0 cable,
• Calsoft 100 PC software on CD with USB-RS232 cable.
