脫氣裝置

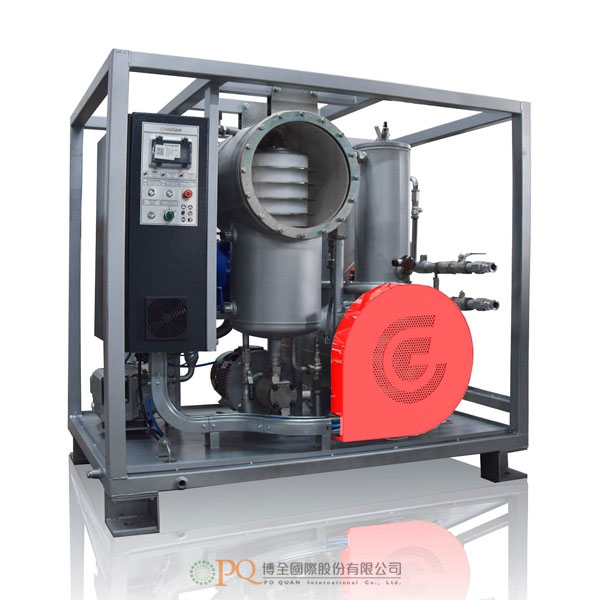

СММur-1L繼承了該系列的優良功能，同時實現了更小的體積和經濟的設計。

СММur-1L是一種精煉電氣絕緣油的設備，其粘度在50°C時為70cSt或以下，並去除水分和顆粒物。

該裝置可以用熱的變壓器油加熱充滿油的電氣設備，使空氣從真空系統中排出。

在多次通過過濾器後，該裝置保證油的淨化程度從最初的18/16級（污染物含量<0.004%）達到14/12級。

СММur-1L非常適合用於充滿油的高壓系統（如電力變壓器、高壓開關）的調試、維修和運轉。

優勢

• 體績小。可在各種交通工具中攜帶（地面、海上和空中）。
• 易於操作和維護。
• 介電強度從15 kV提高到75 kV，只需幾遍。
• 優化的加熱器設計提高了加熱率，而不需要過多的功率。
• 視鏡足夠大，便於目視監測油的處理情況。

Note: * Initial oil parameters:

• moisture below 0.005% (50 ppm);
• oil heated to +60±5ºС for 30 minutes;
• gas content below 10%.

The СММur-1L continues the excellent functionality of this series of equipment, but is designed to be more compact and economical.

The СММur-1L purifies electrical insulation oil with viscosity below 70 cSt at 50o, removing water and particulate matter.

This device can heat oil-filled electrical equipment with hot transformer oil and evacuate air from vacuum systems.

The unit ensures oil purification according to class -/14/12 from initial class -/18/16 (contaminant content by weight less than 0.004%) after multiple passes of the product through the filters.

The СММur-1L is used in the course of commissioning, repairs and operation of oil-filled high voltage systems (power transformers, high voltage switches etc).

Advantages

• compact size. The unit can be carried by various vehicles (ground, sea, air);
• simple operation and maintenance;
• increase of dielectric strength from 15 to 75 kV in several passes;
• optimized heater design with increased heating rate without excessive power requirements;
• sight glass of sufficient size for simple visual monitoring of oil processing.

Note: * Initial oil parameters:

• moisture below 0.005% (50 ppm);
• oil heated to +60±5ºС for 30 minutes;
• gas content below 10%.
