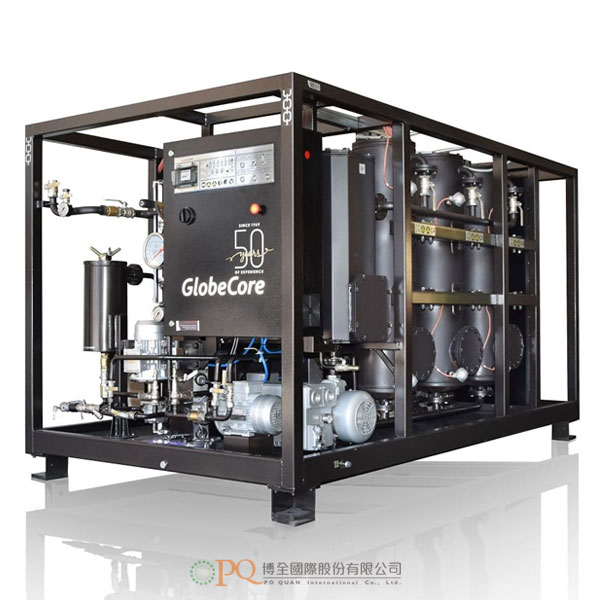

變壓器絕緣油再生裝置 CMM-6RL

CMM-6RL裝置專門設計用於變壓器絕緣油的再生。

再生過程是讓絕緣油通過六個過濾圓柱，每個過濾圓柱包含75kg漂白土 ( Fuller’s earth ) 吸附劑 - 具有微孔結構的材料。此外，所有有害的雜質和老化產物都保留在吸附劑顆粒中。渾濁棕色的絕緣油變得乾淨清澈。另外，油耐壓的程度顯著提高，酸價和介質損耗正切δ值下降。雖是過濾再生的油，但仍可恢復至於新油相當的品質，並被重新用於變壓器的絕緣和散熱。

過濾油的過程，若發生再生品質不再符合要求，該裝置就可以切換到吸收劑再活化模式。吸附劑通過燃燒被回收，隨後再次用於變壓器油的再生。

優勢

• 設計結構緊實，有效利用空間。
• 可與脫氣裝置一起使用。
• 吸附劑可再活化利用至少300-500次之間。
• 再生油除了友善地球環境之外，更有效地為您節省營運資金。

 * The unit capacity depends on the quality indicators of processed oil.

CMM-6RL unit is designed for regeneration of transformer oils.

The regeneration process is about running the oil through six columns each of which contains 75 kilograms of Fuller’s earth adsorbent — a substance with a microporous structure. Furthermore, all harmful impurities and aging products are retained in the adsorbent granules. The turbid and brown oil becomes clean and clear. The breakdown voltage increases, the acidity number and the dielectric loss tangent decrease. Owing to regeneration, used oil regains its properties to the level of new oil and is reused in a transformer for insulation and heat removal.

As soon as the oil regeneration quality ceases to meet the requirements, the unit can be switched to the sorbent reactivation mode. The sorbent is reclaimed by burning and subsequently used again for transformer oil regeneration.

advantage

• compact size;
• may be used along with degassing units;
• the adsorbent can be reactivated 300–500 times;
• money saving due to reclaiming the oil properties and reusing the oil in transformers.

 * The unit capacity depends on the quality indicators of processed oil.
