絕緣油除水裝置

CMM-1H裝置設計用於乾燥、加熱、過濾和排掉變壓器油箱中的礦物變壓器油。

該過程是基於熱和真空的應用。油被加熱並被抽到真空室。由於真空室中的壓力較低，油中的水會沸騰並蒸發掉。水蒸氣隨著真空泵的排氣被排除。

CMM-1H該裝置由機體、離心油泵（輸出）、真空泵、電控板、真空室、過濾器、油水分離器、管道、儀表板、進油口和出油口組成。

優勢

• 輸出泵是離心式的，噪音低。
• 由於沒有輸入泵，油直接進入機體，洩漏的風險很小。
• 操作簡單。
• 真空室有一個多孔的流道，可以有效地分離水分。
• 智慧型加熱系統，根據所需的處理速度改變電流，消除了電壓浪湧。
• 配有一個冷凝水收集容器。
• 配有一個獨立的變壓器排氣口。

*Note – Initial oil quality parameters:

• gas content: below 10.5 %;
• moisture content: below 0.01 % (100 ppm);
• temperature: above 0 °С.

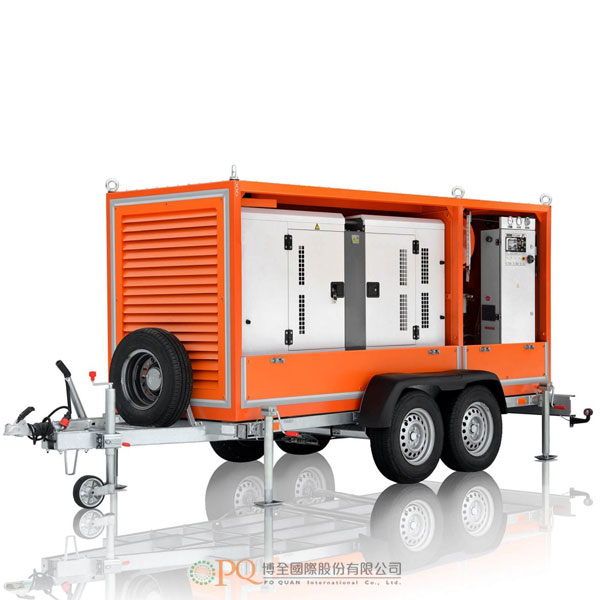

The СММ-1Н unit is designed for drying, heating and filtration of mineral transformer oil, as well as evacuation of transformer tanks.

The process is based on application of heat and vacuum. The oil is heated and pumped to the vacuum chamber. The low pressure in the chamber makes the water in the oil boil and evaporate. The water vapor is removed with vacuum pump exhaust.

The СММ-1Н unit consists of the following elements: a frame, a centrifugal oil pump (output), a vacuum pump, an electrical control cabinet, a vacuum chamber, filters, an oil trap, piping, an instrument panel, an oil inlet and an oil outlet.

Advantages

• the unit is equipped with a centrifugal output pump to reduce noise;
• the unit does not have an input pump, the oil goes directly into the unit with reduced risk of leaks;
• simple operation;
• a porous inset in the vacuum chamber facilitates efficient moisture separation;
• the smart heating system varies current for the required processing rate, eliminating voltage surges;
• a water condensate collection container is installed;
• the unit features a separate outlet for transformer evacuation.

*Note – Initial oil quality parameters:

• gas content: below 10.5 %;
• moisture content: below 0.01 % (100 ppm);
• temperature: above 0 °С.
