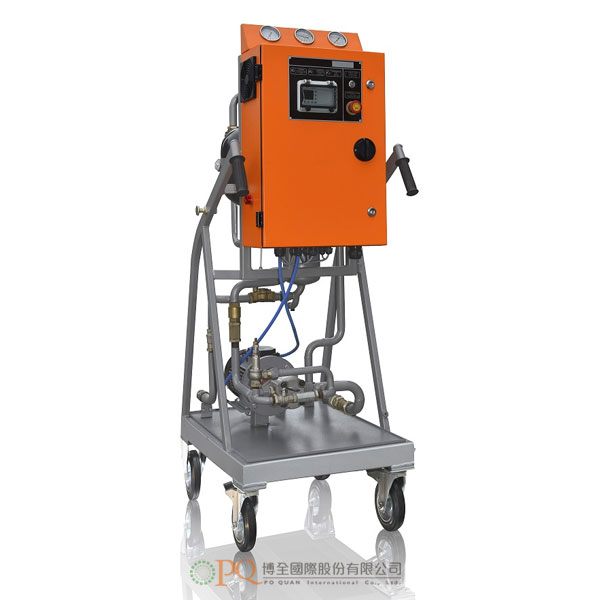

工業用油過濾系統 ( 具有自潔作用的過濾器）

CMM-1,2FR裝置設計用於清潔油基液體（油、切削液、機器和設備的液壓系統工作液）的機械雜質。該裝置確保電力企業、建築和道路設備、發動機、車床、加工設備等設備的生產、維修和保養中液體的純度。該裝置提高了液壓油系統和組件的可靠性和耐久性。

CMM-1,2FR裝置能夠處理具有以下特性的礦物油：

• 運動粘度，50°C 時 mm2/s，最大值 – 400；
• ISO6 4406 純度等級，最低 – 21/19/16。

操作原理

該裝置有三種操作模式：

重新填充液壓蓄能器，過濾液體和清洗過濾器。過濾器會自動進行自我清潔。 CMM-1,2FR自行決定每個操作模式的持續時間。

該裝置組成的組件：

1. 泵。
2. 粗（網）式過濾器。
3. 精細清潔筒式過濾器。
4. 安全閥。
5. 控制機櫃。
6. 液壓蓄能器。
7. 帶輪子的金屬框架（托盤）。
8. 管線

優勢

• 不需要更換自潔式過濾元件。
• 由於安裝了過濾元件，設備能夠不間斷地運轉。
• 體積小。
• 所有裝置是安裝在可移動輪子的平台上，方便移動。

CMM-1,2FR unit is designed to clean oil-based liquids (oils, cutting fluids, working fluids for hydraulic systems of machines and equipment) from mechanical impurities. The unit ensures the purity of liquids in the production, repair and maintenance of equipment of power enterprises, construction and road equipment, engines, machine tools, process equipment, etc. The unit increases the reliability and durability of hydraulic oil systems and assemblies.

CMM-1,2FR unit is able to process mineral oils of the following properties:

• kinematic viscosity, mm2/s at 50°C, max – 400;
• ISO6 4406 purity class, min – 21/19/16.

Principle of operation

There are three modes of the unit operation: refilling the hydraulic accumulator, filtering the liquid and cleaning the filters. The filters are self cleaning automatically. CMM-1,2Fr determines the each operating mode duration by itself.

1. The parts of the unit are:
2. Pump unit.
3. Coarse (mesh) filters.
4. Fine cleaning cartridge filters.
5. Safety valve.
6. Control cabinet.
7. Hydraulic accumulator.
8. Wheels-mounted metal frame (pallet).
9. Piping.

Advantages

• there is no need to change self-cleaning filter elements;
• the equipment is able to function non-stop due to the installed filter elements;
• compact dimensions;
• the unit is made on high mobility wheels-mounted platform.
