真空脫氣機組

CMM-0.6L設計用於加熱、用泵輸送和處理電氣絕緣和冷卻油（例如變壓器、負載分接開關、套管和高壓開關）。該過程包括去除顆粒物、氣體和水。
該機器屬於CMM類別的最小吞吐量（高達600升/小時）。

設計

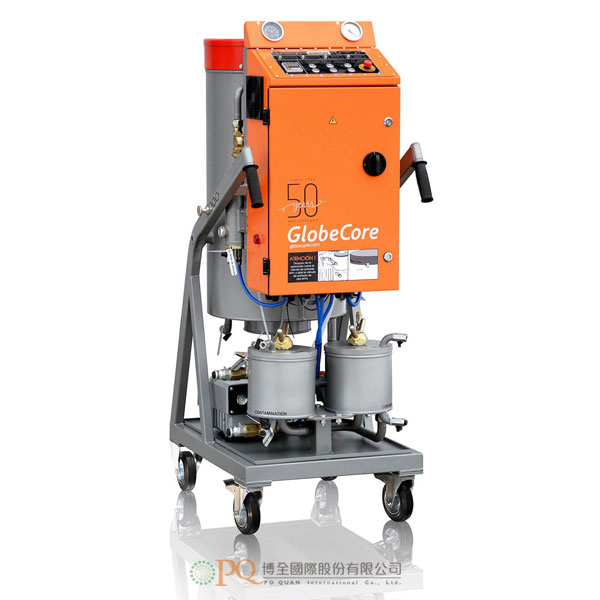

СММ-0.6L是架構在一個可移動的車上，其中，支援組件包括 :

• 輸送油的裝置（泵）。
• 提高油溫的裝置（加熱器）。
• 清除固體顆粒的裝置（粗過濾器和細過濾器）。
• 帶有特殊填充材料的圓柱形容器，排空空氣並抽真空。
• 對真空室進行抽真空的裝置（真空泵）。
• 帶有按鈕和過程參數感測器的控制系統。

所有部件都是通過管道連接。

如何操作

在CMM-0.6L中，真空對油有最重要的影響。一個真空泵將空氣從圓柱形真空室中抽出。真空將油通過一個顆粒去除裝置吸引到一個加熱器，在那裡油被加熱到所設定的溫度。然後，油被輸送到一個圓柱形的腔室，該腔室含有特殊的填充物，增加油的表面積。油向下流，真空從油中提取水和氣體。形成真空室的底部，油流進一個過濾器，通向設備的出口。

操作員的參與

操作者的參與僅限於按動控制面板上的控制按鈕。當操作者按下一個按鈕時，相關的模式就會啟動，並在沒有人為干擾的情況下運轉。控制面板還配備了各種信號裝置，指示哪些部件被投入並提供報警信號。
油的加熱溫度由操作員在電子式顯示幕上選擇，並在沒有操作員參與的狀態下保持。

安全性

CMM-0.6L操作的安全性由過程參數控制裝置和特殊保護裝置保證：

• 加熱器溫度控制（過熱保護）。
• 油位控制（如果檢測到系統中沒有油，則及時停止泵的運轉）。
• 漏油控制（在油管破裂和漏油的情況下停止機器運轉）。
• 防止發泡 。
• 電動機(馬達)和控制電路保護。

本機為誰製造

CMM-0.6L是為變壓器（和其他充滿礦物油的電氣設備）組裝、服務和維修公司設計的。

優勢

• 體積小，便於移動。
• 易於維護和操作。
• 無噪音運轉。
• 能夠透油工作間內的220電源插座供電。

* – any voltage available at customer’s request

** – provided that the processed oil has not been in use.

You can purchase the CMM-0.6 degassing unit right now by contacting one of our managers on the contact list.

In order to change the default parameters to your specific needs, the Customer must fill out a questionnaire, wherein you should include the necessary technical requirements.

The CMM-0.6L is designed for heating, pumping  and processing electrical insulation and cooling oil (in transformers, on load tap changers, bushings, high voltage switches etc). The process includes removal of particulate matter, gas and water.

This machine belongs to the lowest processing rate CMM category (up to 600 liters per hour).

Design

The СММ-0.6L is built on a cart, which supports the components:

• a device for transportation of oil (pump);
• a device to increase the temperature of the oil (heater);
• devices for the removal of solid particles (coarse and fine filters);
• a cylindrical vessel with a special filler, with the air removed to create vacuum;
• a device to evacuate the vacuum chamber (a vacuum pump);
• a control system with buttons and process parameter sensors.

The components are connected by pipes.

Operation

Vacuum is the most important influence on oil in the CMM-0.6L. The vacuum pump removes air from the cylindrical vacuum chamber, The vacuum draws the oil through the particulate matter removal devices into the heater, where the oil is heated to process temperature. Then the oil is transported into the cylindrical chamber, which contains a special filler, increasing the surface area of the oil. The oil flows down and the vacuum extracts water and gas from the oil. Form the bottom of the vacuum chamber the oil flows into the filters, and then to the outlet of the unit.

Operator involvement

The participation of the human operator is limited to pushing the control buttons on the control panel. When the operator presses a button, the the associated mode is engaged and operates without human interference. The control panel is also equipped with various signal devices indicating which components are engaged and providing alarm signals.

The process temperature of the oil is selected by the operator on an electronic display screen, and is maintained without human participation.

Safety

The safety of CMM-0.6L operation is ensured by process parameter control devices and special protections:

• heater temperature control (overheating protection);
• oil level control (prompt stop of the pumps if no oil is detected in the system);
• oil leak control (stop of the machine in case of oil hose rupture and leaks);
• foaming prevention;
• electric motor and control circuit protection.

Who this machine is built for

The CMM-0.6L is designed for transformer (and other mineral oil-filled electrical equipment) assembly, servicing and repair companies.

Advantages

compact size;
ease of maintenance and operation;
silent operation;
the ability to be powered through a conventional 220 electrical outlet.

* – any voltage available at customer’s request

** – provided that the processed oil has not been in use.

You can purchase the CMM-0.6 degassing unit right now by contacting one of our managers on the contact list.

In order to change the default parameters to your specific needs, the Customer must fill out a questionnaire, wherein you should include the necessary technical requirements.
