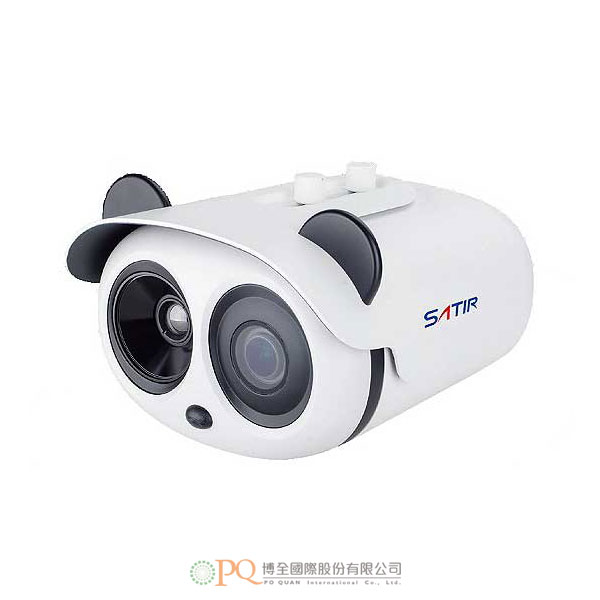

SATIR CK350-F 熱像儀

SATIR CK350-F Thermal Camera 型號：CK350-F

SATIR CK350-F 熱像儀人臉辨識發燒檢測系統。

加入洽詢

Features Specifications

The CK350-F is a fever detection system suitable to be used in areas where there are large groups of people such as airports, seaports and public places such as shopping centres. It is a fixed camera that has a powerful 384x288 IR detector which delivers 110,592 pixels to the end-user's screen. The thermal video/images have a temperature measurement range of 0°C ~ +60°C and measurement accuracy of ≤ 0.3 ℃ which makes this ideal for fever screening programmes. It also comes with a range of temperature measurement tools which includes Motion detection, Disk alarm, I/O alarm, Temperature alarm and many more. The CK350-F allows non-invasive fever detection to take place meaning there is no major distruptions to the flow of people in an area.

Key Features
- 384×288 IR Detector
- Specially designed optical system for medical diagnosis
- Powerful analysis tools
- Operation software optimised for medical diagnosis & analysis

Thermal Camera
Detector Type	Uncooled IRFPA Microbolometer
Effective Pixels	384(H) ×288(V)
Pixel Size	17μm
Thermal Sensitivity (NETD)	50mK @F1.0, 300K
Spectral Range	8~14μm
Image Setting	Polarity LUT/ DVE/ Mirror/ FCC /3D DNR/Brightness/Contrast/ ROI
Color Palettes	Black-Heat /White-Heat/Rainbow/Iron-Red up to 17 modes
Thermal Lens
Lens Type	Fixed
Focus Control	Manual Focus
Focal Length	8mm
F No.	F1.0
Angle of View	H: 46°, V:35.3°
Visible Camera
Image Sensor	1/1.9" Sony CMOS
Effective Resolution	1920(H)×1080(V)
Shutter Speed	1/50 ~ 1/64,000s
Wide Dynamic Range	True WDR 120dB
Min. Illumination	Color: 0.01Lux @(F1.2, AGC ON) B/W: 0.001Lux @(F1.2, AGC ON)
S/N Ratio	More than 55dB
Focal Length	2.7 ~ 12mm
Max Aperture	F1.6~ F2.9
Angle of View	105°~ 32°
Focus Control	Motorized
Video and Audio
Compression	H.265, H.264, MJPEG
Frame Rate	Main Stream:Thermal: D1 @25/30fps Visible: 1920×1080/1280×720 @25/30fpsSub Stream: Thermal: CIF @25/30fps Visible: D1/VGA/640×360/CIF/QCIF/QVGA @25/30fps
Bit Rate Control	CBR/VBR
Bit Rate	Thermal: 100Kbps~6Mbps Visible: main stream: 500Kbps~10Mbps; sub stream 100Kbps~6Kbps
Region of Interest	Off / On (8 Zone, Rectangle)
Digital Zoom	16x
Mirror	Support
Defog	Support
Motion Detection	Support
Privacy Masking	Off / On (4 Area, Rectangle)
DVE Image Enhance	Support
Audio Compression	G.711, AMR, RAW_PCM (Optional)
Intelligence
Intelligent Functions	Motion detection, Disk alarm, I/O alarm, Temperature alarm
IVS	Smart Body Detection, Perimeter ,Single Virtual,Fences ,Double Virtual Fences ,Object Left ,Object Removed
Temperature Detection
Detection Mode	Body temperature monitoring
Detection Preset	Max 16 goals
Temperature Alarm	Over temperature alarm, Temperature difference alarm
Accuracy	≤ 0.3 ℃ (Emission rate, distance, ambient temperature, etc..)
Response Time	≤30ms
Theory of temperature measurement range	-20 °C ~ 60 °C (-4°F ~ 140°F)
Temperature display mode	Temperature target ＞5℃, Display absolute temperature value;Temperature target ≤5℃, Display relative temperature value (temperature difference DEV = highest value - average)
Network
Ethernet	1 Ethernet (10/100 Base-T) RJ-45 Connector
Audio Interface	1ch Audio In,1ch Audio Out
Alarm	2ch Alarm In,2ch Alarm Out
RS485	Support
BNC Output	N/A
Reset Button	Support (Built-in)
General
Power Supply	DC12V/POE (IEEE 802.3af)
Power Consumption	Max 10W
Operating Temperature	-30°C~60°C(-22°F~140°F)
Storage Conditions	0~ 90% RH
Certifications	CE /FCC
Ingress Protection	IP66
Casing	Metal
Dimensions	212×182×136mm
Net Weight	2Kg
