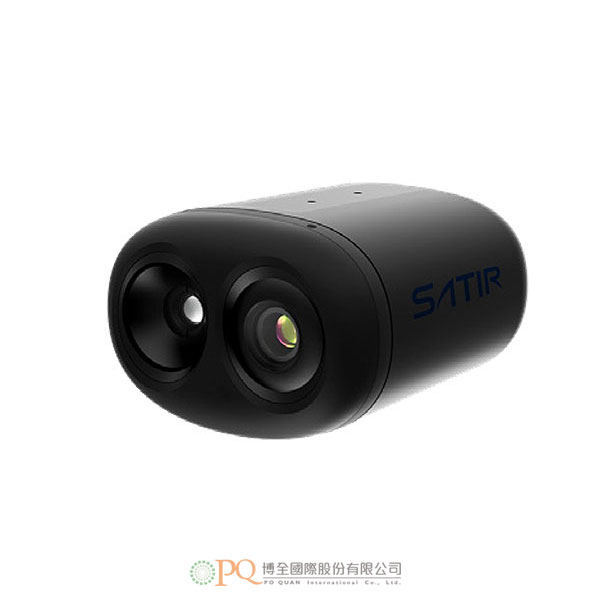

SATIR CK200-F 熱像儀

SATIR CK200-F Thermal Camera 型號：CK200-F

CK200-F人臉辨識發燒檢測系統。紅外線熱影像解析度256x192、測溫範圍0~60度C、測量精度≤±0.3℃，提供發燒檢測的精準規格，人臉辨識可以用來避免環境造成的溫度影響，量測時待測人員也無需停下腳步量測，最大可以同時偵測20個人臉，非常適合各機關的出入口體溫檢驗。軟體更包含體溫警報、口罩辨識、人員名片建立（上下班打卡或體溫記錄功能）。

加入洽詢

產品特點產品規格 Features Specifications

CK200-F人臉辨識發燒檢測系統。紅外線熱影像解析度256x192、測溫範圍0~60度C、測量精度≤±0.3℃，提供發燒檢測的精準規格，人臉辨識可以用來避免環境造成的溫度影響，量測時待測人員也無需停下腳步量測，最大可以同時偵測20個人臉，非常適合各機關的出入口體溫檢驗。軟體更包含體溫警報、口罩辨識、人員名片建立（上下班打卡或體溫記錄功能）。

Key Features
- 256×192 IR Detector
- Specially designed optical system for medical diagnosis
- Powerful analysis tools
- Operation software optimised for medical diagnosis & analysis

Thermal Camera
Detector Type	Uncooled IRFPA Microbolometer
Effective Pixels	256(H) ×192(V)
Pixel Size	20um
Thermal Sensitivity (NETD)	≤50mK @F1.0, 300K
Spectral Range	8~14um
Image Setting	Polarity LUT/ DVE/ Mirror/ FCC/ /3D DNR Brightness/Contrast/ ROI
Color Palettes	Black-Heat /White-Heat/Rainbow/Iron-Red up to 14 modes
Thermal Lens
Lens Type	Fixed
Focus Control	Fixed Focus
Focal Length	8mm
F No.	F1.0
Angle of View	H: 44°, V:33°
Visible Camera
Image Sensor	1/2.8" Sony CMOS
Effective Resolution	1920(H)×1080(V)
Shutter Speed	1/5 ~ 1/20,000s
Wide Dynamic Range	True WDR 120dB
Min. Illumination	Color: 0.1Lux @(F1.2, AGC ON) B/W: 0.01Lux @(F1.2, AGC ON)
S/N Ratio	More than 55dB
Focal Length	2.7 ~ 12mm
Max Aperture	F1.6~ F2.9
Angle of View	105°~ 32°
Focus Control	Motorized
Video and Audio
Compression	H.265, H.264, MJPEG
Frame Rate	Main Stream: Visible: 1920×1080/1280×720 @25/30fps Thermal: D1 @25/30fps Sub Stream: Visible: D1/VGA/640×360/CIF/QVGA @25/30fps Thermal: CIF @25/30fps
Bit Rate Control	CBR/VBR
Bit Rate	Main Stream: Thermal: 100Kbps~6Mbps Visible: 100Kbps~12Mbps Sub Stream: Thermal: 10Kbps~1.5Mbps Visible: 10Kbps~6Mbps
Region of Interest	Off / On (8 Zone, Rectangle)
Digital Zoom	16x
Mirror	Support
Defog	Support
Motion Detection	Support
Privacy Masking	Off / On (4 Area, Rectangle)
DVE Image Enhance	Support
Audio Compression	G.711, RAW_PCM

Intelligence
Intelligent Functions	Motion detection, Disk alarm, I/O alarm, Temperature alarm
IVS	Smart Body Detection, Perimeter, Single Virtual Fences, Double Virtual Fences, Object Left ,Object Removed
Temperature Detection
Detection Mode	Body temperature monitoring
Detection Preset	Max 8 goals
Temperature Alarm	Over temperature alarm
Accuracy	± 0.3 ℃ (Emission rate, distance, ambient temperature, etc.) with blackbody , Environment temperature: 5°C ~ 40 °C (41°F ~ 104°F) Detection Distance: 0.3~4m (2,3m recommended), Working Environment: Avoid the interference of wind, sunshine, high temperature and reflective objects, indoor is recommended
Response Time	≤50ms
Temperature Range	0 °C ~ 60 °C (32°F ~ 140°F)
Network
Ethernet	RJ-45 (10/100Base-T)
Protocols:	IPv4/IPv6, HTTP, RTSP/RTP/RTCP, TCP/UDP, DHCP, DNS, PPPOE, SMTP, SIP ,802.1x
Interoperability	ONVIF, CGI, SDK
Streaming Method	Unicast
Max. User Access	10 Users
Edge Storage	Local PC for instant recording
Web Viewer
Web Language	17 language
Interface
Ethernet	1 Ethernet (10/100 Base-T) RJ-45 Connector
Audio Interface	1ch Audio In,1ch Audio Out
Alarm	2ch Alarm In,2ch Alarm Out
RS485	Support
BNC Output	N/A
Reset Button	Support (Built-in)
General
Power Supply	DC12V/POE (IEEE 802.3af)
Power Consumption	Max 10W
Operating Temperature	-30°C~60°C(-22°F~140°F)
Storage Conditions	0~ 90% RH
Certifications	CE /FCC
Ingress Protection	IP66
Casing	Metal
Dimensions	210×173×120mm
Net Weight	2Kg

The CK200-F is a fever detection system suitable to be used in areas where there are large groups of people such as airports, seaports and public places such as shopping centres. It is a fixed camera that has a powerful 256x192 IR detector which delivers 110,592 pixels to the end-user's screen. The thermal video/images have a temperature measurement range of 0°C ~ +60°C and measurement accuracy of ≤ 0.3 ℃ which makes this ideal for fever screening programmes. It also comes with a range of temperature measurement tools which includes Motion detection, Disk alarm, I/O alarm, Temperature alarm and many more. The CK200-F allows non-invasive fever detection to take place meaning there is no major distruptions to the flow of people in an area.

Key Features
- 256x192 IR Detector
- Specially designed optical system for medical diagnosis
- Powerful analysis tools
- Operation software optimised for medical diagnosis & analysis

Thermal Camera
Detector Type	Uncooled IRFPA Microbolometer
Effective Pixels	256(H) ×192(V)
Pixel Size	20um
Thermal Sensitivity (NETD)	≤50mK @F1.0, 300K
Spectral Range	8~14um
Image Setting	Polarity LUT/ DVE/ Mirror/ FCC/ /3D DNR Brightness/Contrast/ ROI
Color Palettes	Black-Heat /White-Heat/Rainbow/Iron-Red up to 14 modes
Thermal Lens
Lens Type	Fixed
Focus Control	Fixed Focus
Focal Length	8mm
F No.	F1.0
Angle of View	H: 44°, V:33°
Visible Camera
Image Sensor	1/2.8" Sony CMOS
Effective Resolution	1920(H)×1080(V)
Shutter Speed	1/5 ~ 1/20,000s
Wide Dynamic Range	True WDR 120dB
Min. Illumination	Color: 0.1Lux @(F1.2, AGC ON) B/W: 0.01Lux @(F1.2, AGC ON)
S/N Ratio	More than 55dB
Focal Length	2.7 ~ 12mm
Max Aperture	F1.6~ F2.9
Angle of View	105°~ 32°
Focus Control	Motorized
Video and Audio
Compression	H.265, H.264, MJPEG
Frame Rate	Main Stream: Visible: 1920×1080/1280×720 @25/30fps Thermal: D1 @25/30fps Sub Stream: Visible: D1/VGA/640×360/CIF/QVGA @25/30fps Thermal: CIF @25/30fps
Bit Rate Control	CBR/VBR
Bit Rate	Main Stream: Thermal: 100Kbps~6Mbps Visible: 100Kbps~12Mbps Sub Stream: Thermal: 10Kbps~1.5Mbps Visible: 10Kbps~6Mbps
Region of Interest	Off / On (8 Zone, Rectangle)
Digital Zoom	16x
Mirror	Support
Defog	Support
Motion Detection	Support
Privacy Masking	Off / On (4 Area, Rectangle)
DVE Image Enhance	Support
Audio Compression	G.711, RAW_PCM

Intelligence
Intelligent Functions	Motion detection, Disk alarm, I/O alarm, Temperature alarm
IVS	Smart Body Detection, Perimeter, Single Virtual Fences, Double Virtual Fences, Object Left ,Object Removed
Temperature Detection
Detection Mode	Body temperature monitoring
Detection Preset	Max 8 goals
Temperature Alarm	Over temperature alarm
Accuracy	± 0.3 ℃ (Emission rate, distance, ambient temperature, etc.) with blackbody , Environment temperature: 5°C ~ 40 °C (41°F ~ 104°F) Detection Distance: 0.3~4m (2,3m recommended), Working Environment: Avoid the interference of wind, sunshine, high temperature and reflective objects, indoor is recommended
Response Time	≤50ms
Temperature Range	0 °C ~ 60 °C (32°F ~ 140°F)
Network
Ethernet	RJ-45 (10/100Base-T)
Protocols:	IPv4/IPv6, HTTP, RTSP/RTP/RTCP, TCP/UDP, DHCP, DNS, PPPOE, SMTP, SIP ,802.1x
Interoperability	ONVIF, CGI, SDK
Streaming Method	Unicast
Max. User Access	10 Users
Edge Storage	Local PC for instant recording
Web Viewer
Web Language	17 language
Interface
Ethernet	1 Ethernet (10/100 Base-T) RJ-45 Connector
Audio Interface	1ch Audio In,1ch Audio Out
Alarm	2ch Alarm In,2ch Alarm Out
RS485	Support
BNC Output	N/A
Reset Button	Support (Built-in)
General
Power Supply	DC12V/POE (IEEE 802.3af)
Power Consumption	Max 10W
Operating Temperature	-30°C~60°C(-22°F~140°F)
Storage Conditions	0~ 90% RH
Certifications	CE /FCC
Ingress Protection	IP66
Casing	Metal
Dimensions	210×173×120mm
Net Weight	2Kg
