現場精密記錄多功能校正器

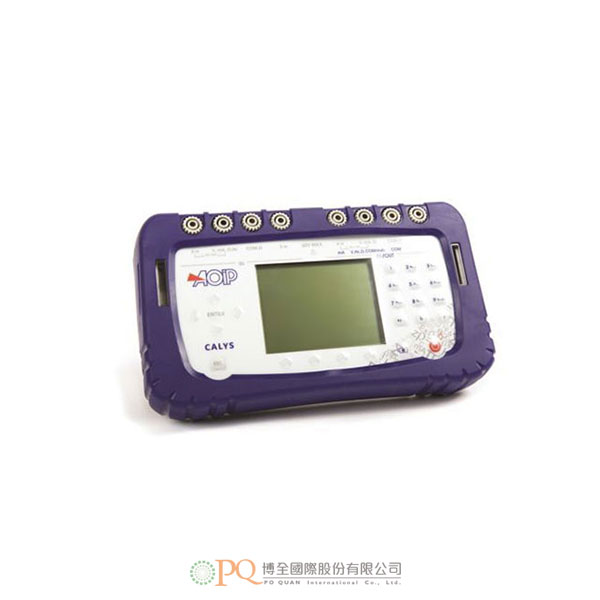

CALYS 100 是一款現場記錄型多功能校準器，在 CALYS 範圍內具有很高的精度。 它是所有行業先進製程維護和測試台使用的完美工具。 它適用於所有現場和實驗室測量，可透過兩個隔離通道同時測量和產生溫度、電阻、製程、壓力和頻率等各種訊號。

CALYS 100 提供擴充功能（溫度模擬、縮放、步驟、合成器、統計功能…），讓進階資料開發和完整資料可追溯性變得更加容易，並透過選單快速存取功能。

該儀器可同時測量和模擬 :

• 溫度 高達 0,012% RDG。
• 電阻： 高達 0,010% RDG，4 KΩ 範圍。
• 電流 高達 0.012% RDG，50 mA 量程 + 24 V 迴路供電。
• 電壓 高達 0,010% RDG，50 V 範圍。
• 頻率 高達 0,005% RDG，20 KHz 範圍（類比中為 10 KHz）。
• 壓力：與外部壓力模組（參考 ACL433）一起使用時，CALYS 100 可以測量並模擬壓力（與壓力幫浦進行比較校準）。

使用這種用戶友好型儀器，可在整個過程鏈中快速執行校正任務。 900 克記錄式製程校正器可在一週內攜帶到現場，設備中儲存有 10 個校正程序。 將探頭連接到儀器（Easy connect system®）後執行程序，並儲存結果，以便在現場進行簡單快速的校正。 回到辦公室後，您可以將資料上傳到電腦上，以便使用專用校正軟體 DATACAL 簽發客製化校正證書。

CALYS 100 的防護等級為 IP 54，由防潮橡膠皮套提供全面保護，結合了 "易連接 "連接端子和寬背光顯示幕，在任何惡劣或黑暗條件下都能輕鬆使用。

易於連接的系統

只需按下端子頂部並插入最大直徑為3 mm或10 AWG的電線和補償熱電偶連接器即可連接探頭。

導線緊固在兩塊黃銅板之間，確保熱穩定性，並為熱電偶提供非常好的冷端補償。

該系統還可以在終端頂部連接4 mm香蕉插頭和安全連接器。

溫度@ 23°C±5°C時的規格和性能
不確定度以讀數百分比（CALYS 100顯示）+固定值給出。

電阻探針：測量和類比

2線，3線或4線電阻探頭測量：自動識別連接線數，螢幕顯示。
4線安裝探頭的精確度考慮所用。
溫度感測器的特殊誤差和實施條件。
溫度係數：<10%精度/°C。
測量電流：0.25 mA（測量）或0.1至1 mA（發射）。
電流建立時間：<5 ms。

熱電偶：測量和類比

準確度為@ 0°C時的參考值。
使用內部參考結（B雙除外）時，在0°C時額外增加0.2°C的不確定度。
可以通過程式設計冷端定位來選擇（熱電偶B除外）：外部溫度為0°C，內部（儀器端子的溫度補償）或手動輸入。
溫度係數：<10%精度/°C。
顯示單位：°C和F。
熱電偶：D和G，有關規格，請參閱說明書。

壓力規格和性能@ 23°C±5°C>

壓力：通過外部數位感測器測量

提供相對壓力，絕對壓力和差壓。
接頭： ¼ 氣壓。
解析度：0.02%FS。
精度：
- 0.05%FS，10至40°C。
- 0.1%FS，-10至+ 10°C，40至80°C。
該數位壓力模組ACL433通過RS485串行電纜連接到CALYS 100，連接到數位輸入連接器。 所有數據都是數位的。 通過在工廠中硬體中實現的多項式校正來對測量值進行補償。
在23°C±5°C的溫度範圍內進行性能和技術規範
直流電流：測量
有無迴圈供應

溫度係數：<10 ppm /°C超出參考範圍。
迴路電源：24 V±10%。
HART®相容性：輸入阻抗Rin =280Ω。
帶線性或二次刻度的顯示。

直流電流：發射
有無迴路供電

溫度係數<10 ppm /°C超出參考範圍。
建立時間：<5 ms。
CALYS配置的規格如下：
- 主動模式（+ 24V ON）1被動模式（+24 V OFF）。
- 被動模式（+24 V） OFF）1電位有效模式（+24 V ON）。
預程式設計步驟 :

直流電壓：測量​

雜訊：3 ppm（0.1 Hz至10 Hz）和5 ppm（10 Hz至100 Hz）。
溫度係數：<7 ppm /°C 超出參考範圍。
建立時間：<5 ms。

頻率和計數：測量

溫度係數<5 ppm /°C超出參考範圍。
刻度單位：脈衝/分鐘和Hz。
觸發電位：1 V。
頻率信號或乾接點測量。
計數將在規定的時間或無限時間內進行。
溫度係數：<5 ppm /°C超出參考範圍

頻率和計數：發射

刻度單位：脈衝/分鐘和Hz。
脈衝和乾接點的發射。
信號最大振幅：20 V（用戶可選）。
溫度係數：<5 ppm /°C超出參考範圍。
電阻：測量

2線，3線或4線電阻測量：自動識別連接線數，螢幕顯示。
4線安裝探頭的精確度。
溫度係數：<7 ppm /°C超出參考範圍。
開路端子電壓： < 10 V。
連續性測試： R > 1000 Ω 時為開路，R < 1000 Ω 時為閉路。
測量電流：0.25 mA。

阻抗：發射

溫度係數：<5 ppm /°C超出參考範圍。
電流建立時間：<1 ms。
Iext：校正器接收的電流。

CALYS 100 is a field precision documenting multifunction calibrator within CALYS range. It is the perfect tool for advanced process maintenance and use on test bench in all industries. Suitable for all field and lab measurements, it can simultaneously measure and generate over two isolated channels various signals of temperature, resistance, process, pressure and frequency in one single instrument.

Providing extended functionalities (temperature simulation, scaling, steps, synthesizer, statistical functions…), CALYS 100 makes advanced data exploitation and full data traceability easier, as well as quick access to functions by menus.

The instrument simultaneously measures and simulates:

• Temperature: Up to 0,012% RDG
• Resistance: Up to 0,010% RDG, 4 KΩ range
• Current: Up to 0,012% RDG, 50 mA range + 24 V loop supply
• Voltage: Up to 0,010% RDG, 50 V range
• Frequency: Up to 0,005% RDG, 20 KHz range (10 KHz in simulation)
• Pressure: When used with an external pressure module (ref. ACL433), CALYS 100 can measure and simulate pressure (comparison calibration with a pressure pump).

Using this user-friendly instrument, calibration tasks can be quickly carried out over the whole process chain. Take the 900 g documenting process calibrator to the field with you during the whole week with 10 calibration procedures stored in the device. Run the procedure after connecting the probes to the instrument (Easy connect system®) and save the results for onsite easy and quick calibration.

Back to the office, you can then upload the data on a computer in order to issue customized calibration certificates with dedicated calibration software DATACAL.

IP 54, fully protected by an antichoc rubber holster, CALYS 100 integrates "easyconnect" terminals and a wide backlite display that makes it easy to use in any severe or dark conditions.

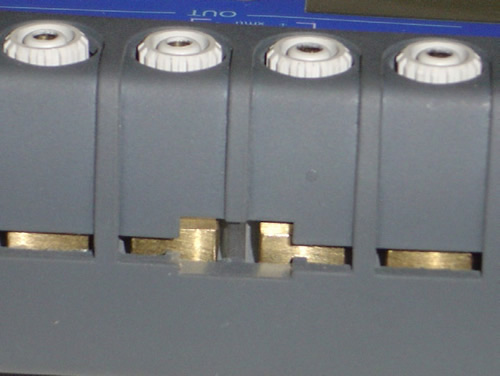

Easy connection system®

Connect your probes by simply pushing on the terminal top and insert wires of up to 3 mm or 10 AWG diameter and compensated thermocouple connectors.

Wires are held tight between two brass plates ensuring thermal stability and a very good cold junction compensation for thermocouples. This system also enables 4 mm banana plugs and security connectors to be connected on the terminal top.

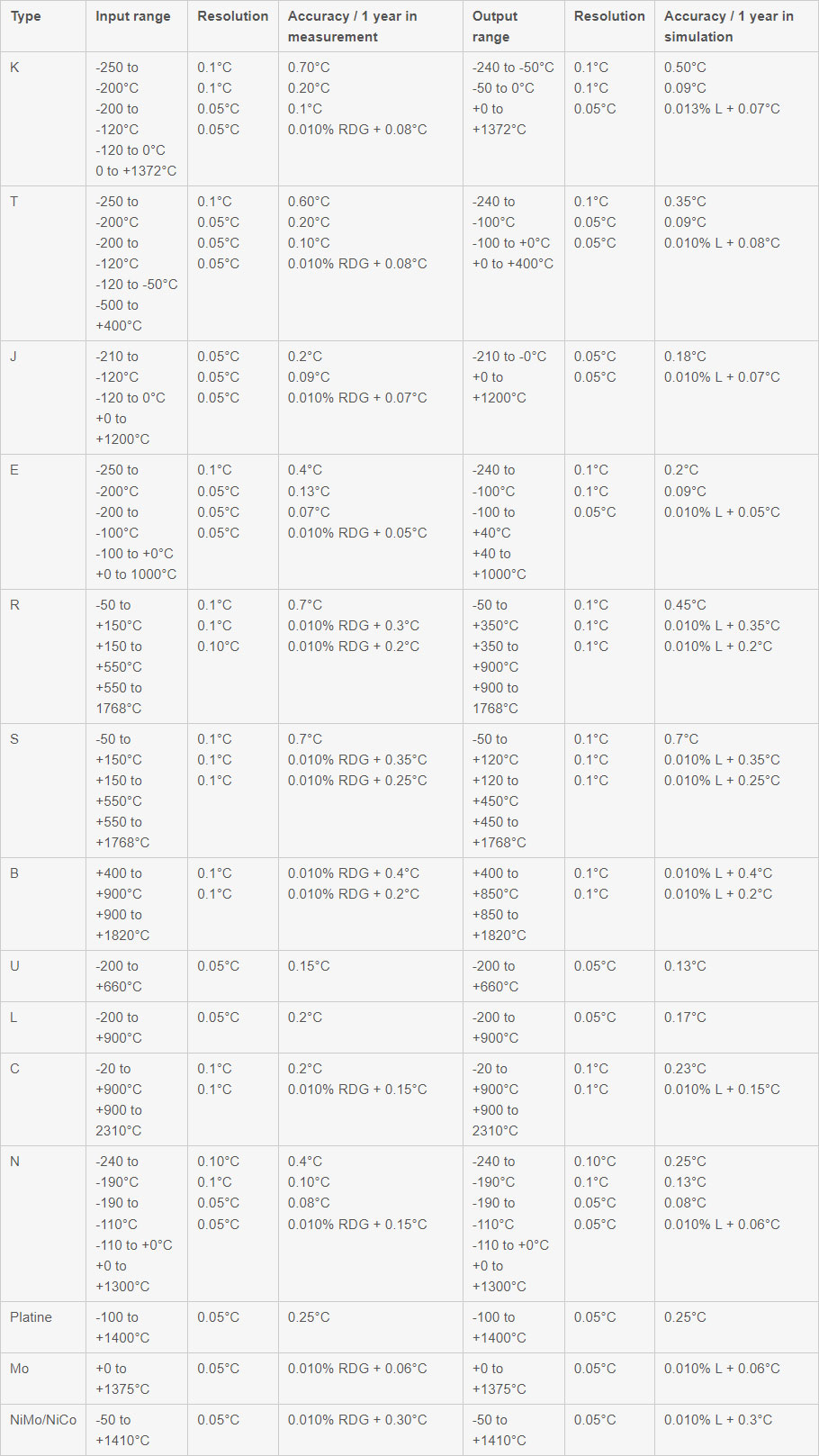

Specifications and performances in temperature @23°C ±5°C
Uncertainty is given in % of reading (CALYS 100 display) + fixed value.

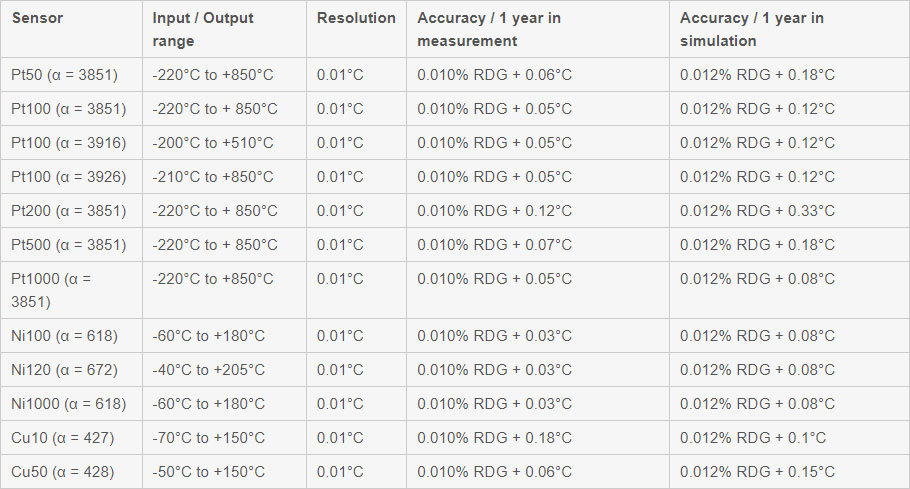

Resistive probes: Measurement and simulation

Resistive probes measurements in 2, 3 or 4 wires: automatic recognition of number of connected wires, with indication on screen
Accuracies are given for 4-wire mounted probes
Take into account particular error of temperature sensor used and implementation conditions
Temperature coefficient: < 10% of accuracy /°C
Measuring current: 0.25 mA (Measurement) or from 0.1 to 1 mA (Emission)
Current settling time: < 5 ms

Thermocouples: Measurement and simulation

Accuracy is given for reference @ 0°C.
When using the internal reference junction (except couple B) add an additional uncertainty of 0.2 °C at 0 °C.
It is possible (thermocouple B excepted) to choose by programming the cold junction localization: External at 0°C, internal (temperature compensation of instrument’s terminals) or manually entered.
Temperature coefficient: <10% of accuracy /°C
Display unit: °C and F
Thermocouples: D and G, for specifications, refer to instruction manual

Specifications and performances in pressure @23°C ±5°C>

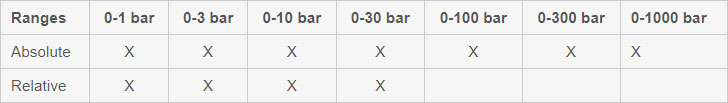

Pressure: Measurement by external digital sensor

Available in relative, absolute and differential pressure.
Connector: ¼ gas
Resolution: 0.02% FS
Accuracy:
- 0.05% FS from 10 to 40°C
- 0.1% FS from -10 to +10°C and from 40 to 80°C

This digital pressure module ACL433 is connected to CALYS 100 through RS485 serial cable to the digital input connector. All data are digital. Measurements are compensated in temperature by a polynomial correction implemented into the firmware at factory.

Specifications and performances in process @23°C ±5°C

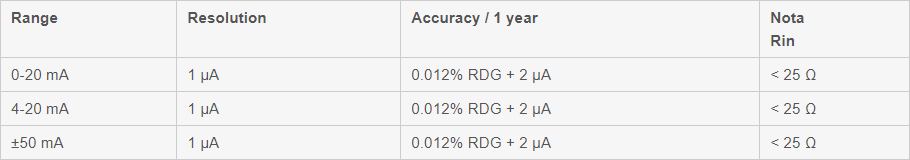

DC current: Measurement
With or without loop supply

Temperature coefficient: < 10 ppm/°C beyond reference domain
Loop supply: 24 V ±10%
HART® compatibility: Input impedance Rin = 280 Ω
Display with linear or quadratic scaling

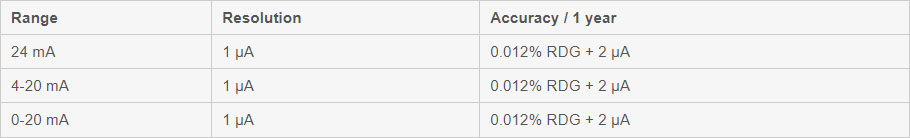

DC current: Emission
With or without loop supply

Temperature Coefficient < 10 ppm/°C beyond reference domain
Settling time: < 5 ms
Specifications given for CALYS configurations in:
- Active mode (+24V ON) 1  Meter in passive mode (+24 V OFF)
- Passive mode (+24 V OFF) 1 Meter in active mode (+24 V ON)
Pre-programmed steps

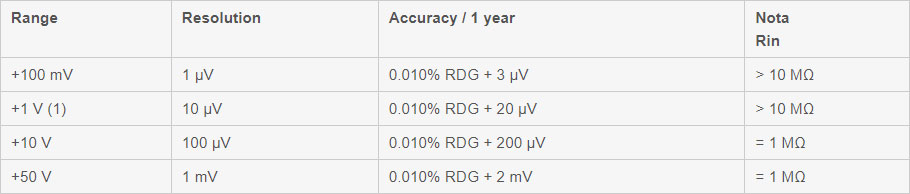

DC voltage: Measurement

(1) Range specified: -0.8 V to +1 V
Temperature coefficient: < 7 ppm/°C beyond reference domain

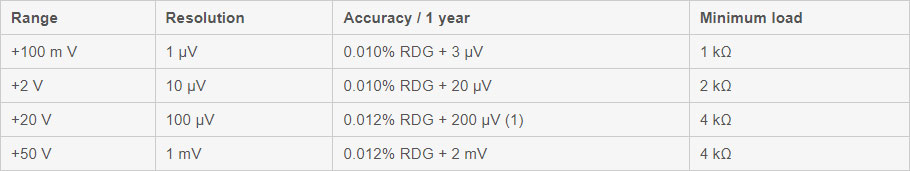

DC voltage: Emission

(1) Noise: 3 ppm (for 0.1 Hz to 10 Hz) and 5 ppm (for 10 Hz to 100 Hz)
Temperature coefficient: < 7 ppm/°C beyond reference domain
Settling time: < 5 ms

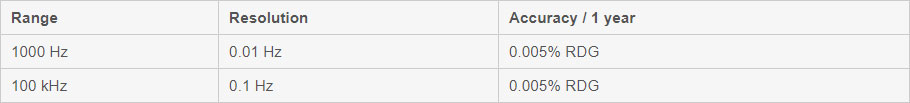

Frequency and counting: Measurement

Scale unit: Pulse / min and Hz
Trigger level: 1 V
Measurement on frequency signals or dry contacts
Counting will be performed on defined time or infinite time.
Temperature coefficient: < 5 ppm/°C beyond reference domain

Frequency and counting: Emission

Scale unit: Pulse / min and Hz
Emission of pulses and dry contacts
Signal maximum amplitude: 20 V (user selectable)
Temperature coefficient: < 5 ppm/°C beyond reference domain

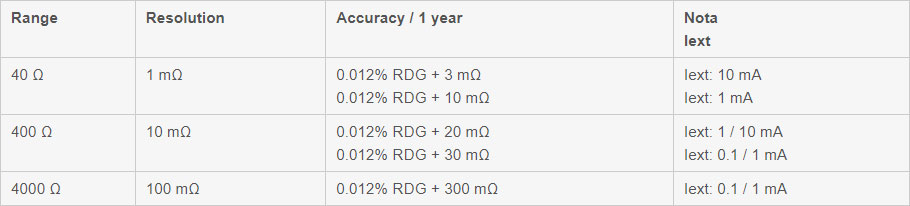

Resistance: Measurement

Resistance measurement in 2, 3 or 4 wires: automatic recognition of number of connected wires, with indication on screen
Accuracies are given for 4-wire mounted probes
Open circuit terminal voltage: < 10 V
Continuity test: Open circuit for R > 1000 Ω and closed circuit for R < 1000 Ω
Temperature coefficient: < 7 ppm/°C beyond reference domain
Measurement current: 0.25 mA

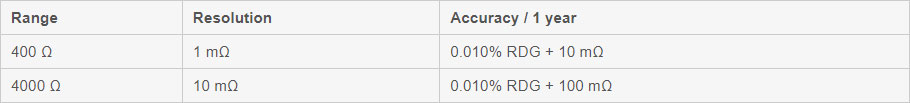

Resistance: Emission

Temperature coefficient: < 7 ppm/°C beyond reference domain
Current settling time: < 1 ms
Iext : Current received by the calibrator
