BZY 陶瓷燃料電池

BZY disk samples 型號：BZY disk samples

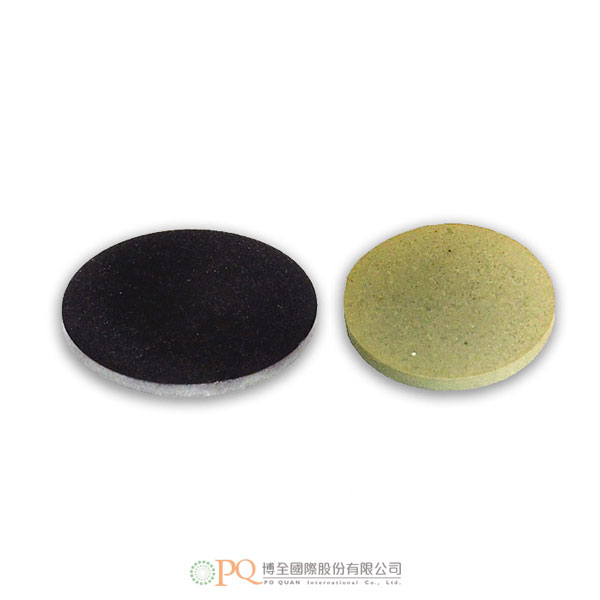

Dense Button Cells - BZY15, BZY15-Ni, and BZCY81-Ni

BZY is considered to be one of the candidate materials for proton ceramic fuel cells (PCFCs) and electrolyzer cells (PCECs) due to its high proton conductivity and chemical stability towards H2O and CO2 containing atmospheres.

Suitable for studies of proton conduction, impedance electroscopy of bulk, grain boundary, and electrodes.

Standard electrolyte for testing of electrodes for PCFCs and PCECs.

加入洽詢

產品特點產品規格

Dense Button Cells - BZY15, BZY15-Ni, and BZCY81-Ni

BZY is considered to be one of the candidate materials for proton ceramic fuel cells (PCFCs) and electrolyzer cells (PCECs) due to its high proton conductivity and chemical stability towards H2O and CO2 containing atmospheres.

Suitable for studies of proton conduction, impedance electroscopy of bulk, grain boundary, and electrodes.

Standard electrolyte for testing of electrodes for PCFCs and PCECs.

Short name	BZY15	BZY15-Ni	BZCY81-Ni
Formula	BaZr0.85Y0.15O3	BaZr0.85Y0.15O3	BaZr0.8Ce0.1Y0.1O3
Ni content	0	1 wt% NiO	1 wt% NiO
Diameter (mm)	19	18	17
Thickness (mm)	1-2	1-2	1-2
Grain size (µm)	˜2-3	3-5	-
Estimated density (%)	90-95	99	99
