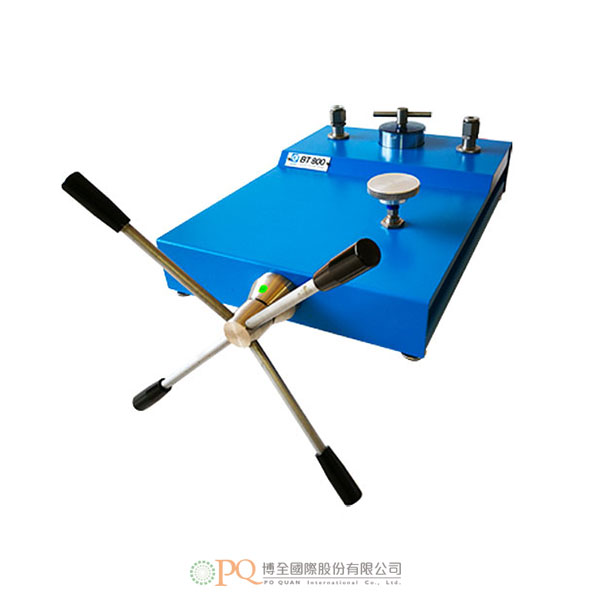

COMPARISON PUMPS

The pumps of the BT series make it possible to generate hydraulic pressures up to 800 bar necessary for the comparison calibration of manometers, pressure switches and transducers with standard gauges.
Their sturdiness and compactness make them easy to use both in the work shop and in the field.
Their installation and maintenance have been simplified as much as possible so that they may be used immediately.

GENERAL CHARACTERISTICS COMMON TO BOTH MODELS

1. Structurein2mmthickmetalsheetsdesignedtosimplifycarrying.
2. The pumps made be fitted onto a work bench by means of their 4 adjustable feet or they may be attached to a surface by means of the holes on the base.
3. High pressure unit made in one piece with a brass rod.
4. Bronzetrapezoidalscrewsandnutscrewswithstainlesssteelbearing.
5. Triple-spokehand-wheeltiltedtowardsoperator.
6. Socketsfor1/2"GasmanometerswithrotatingscrewnutandORseal.
7. Stainlesssteelbuilt-intankwithhand-wheeloperatedheadvalve.
8. Hydraulicliquidused:waterandoil.

1. Range of use from 0 to 800 bar (80 Mpa)
2. Interception needle valve used to pre-load the circuit
3. Totalcapacity:30cm 3
4. Displacement/turn=0,7cm 3~
5. Piston with plunger stem and high pressure unit made in stainless steel
6. Total screwstroke:160mm
7. Operative stress at 100 bar: approx. 1 Kgm
8. Testpressure:1000 bar
9. Gaskets in nitril rubber with anti-extrusion ring
10. Measurements:650x360x330mm
11. Weight 18 Kg
