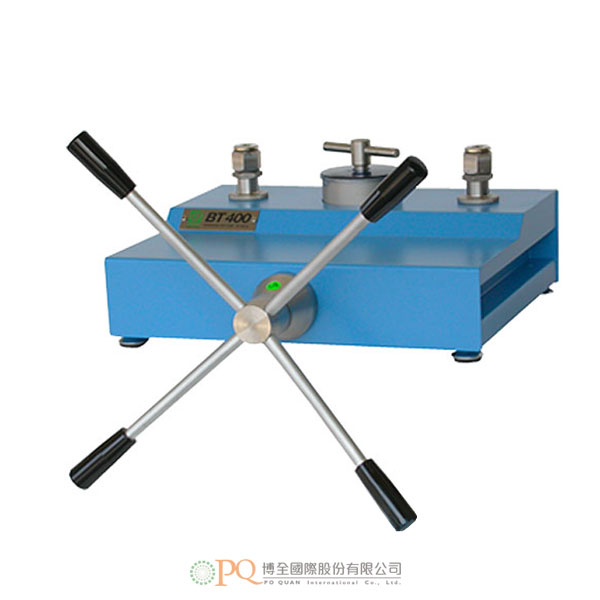

COMPARISON PUMPS

The pumps of the BT series make it possible to generate hydraulic pressures up to 800 bar necessary for the comparison calibration of manometers, pressure switches and transducers with standard gauges.
Their sturdiness and compactness make them easy to use both in the work shop and in the field.
Their installation and maintenance have been simplified as much as possible so that they may be used immediately.

GENERAL CHARACTERISTICS COMMON TO BOTH MODELS

1. Structurein2mmthickmetalsheetsdesignedtosimplifycarrying.
2. The pumps made be fitted onto a work bench by means of their 4 adjustable feet or they may be attached to a surface by means of the holes on the base.
3. High pressure unit made in one piece with a brass rod.
4. Bronzetrapezoidalscrewsandnutscrewswithstainlesssteelbearing.
5. Triple-spokehand-wheeltiltedtowardsoperator.
6. Socketsfor1/2"GasmanometerswithrotatingscrewnutandORseal.
7. Stainlesssteelbuilt-intankwithhand-wheeloperatedheadvalve.
8. Hydraulicliquidused:waterandoil.

1. Range of use from 0 to 400 bar (40 MPa)
2. It may be used in depression within the limits established by the suction volume.
3. Totalcapacity:76cm 3
4. Displacement/turn=2cm 3~
5. Highresistancestainlesssteelcylinder.
6. Bronze piston with Buna gaskets, Teflon anti-extrusion ring and guide in acetate resin.
7. Totalscrewstroke:160mm
8. Operative stress at 50 bar: 1 Kgm
9. Test pressure: 600 bar
10. Measurements:450x360x300mm
11. Weight: 14 Kg
