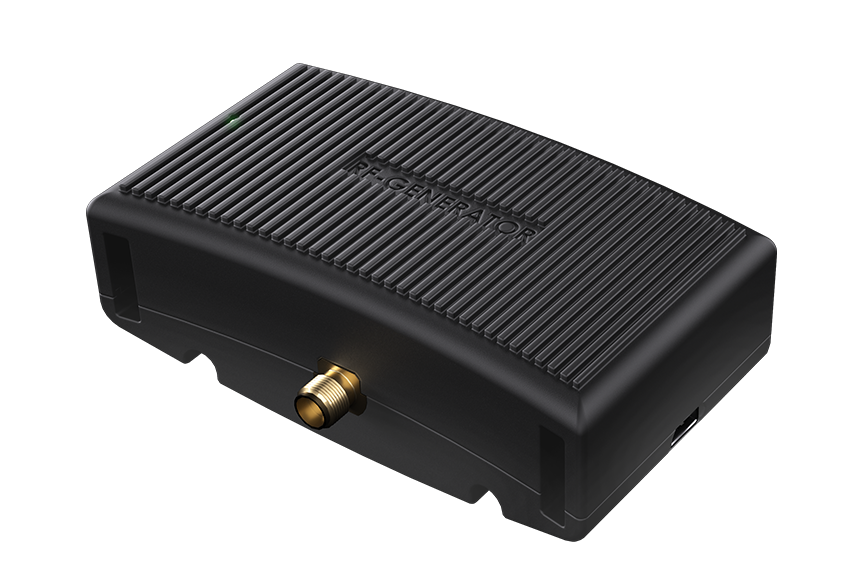

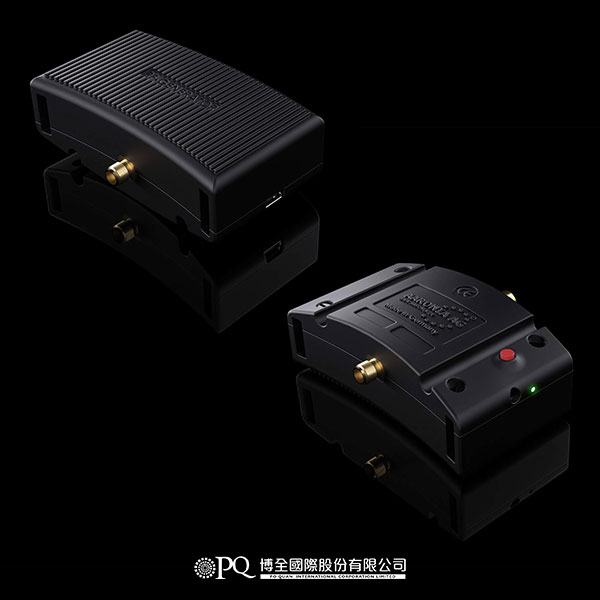

USB訊號產生器

BPSG 系列極為輕巧的訊號產生器在效能、功能和設計方面提供了同價位產品中前所未有的組合。 高達 +18 dBm 的超高輸出電功率以及高達 63 dB 的動態範圍是這些設備的優勢所在。


產品描述

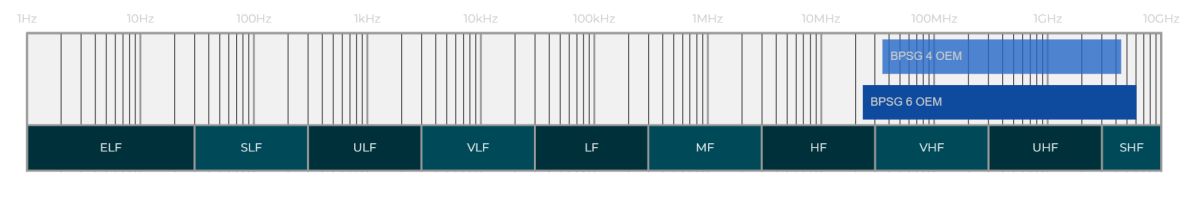

BPSG 產生器可產生射頻訊號、測試屏蔽效應和射頻/電磁干擾測試。 訊號產生器有 4 種不同型號，頻率範圍從 23.5 MHz 到 6 GHz。BPSG 系列尺寸非常輕巧，僅 80 x 50 x 30 mm，重量僅 150 g，適合移動使用，可放入任何口袋。BPSG 外型小巧，是全球最小的電池供電射頻產生器，頻率可達 6 GHz。只需幾個簡單的步驟，就能將許多 Aaronia 天線與 BPSG 一起組成為主動場強產生器。在單機模式下，訊號產生器可以執行簡單或非常複雜的批次程序，這些程序會在通電後自動啟動。此功能可產生固定頻率和電功率，或開始預先定義的掃描、複雜的頻率清單、調變等。BPSG 的最大輸出功率為 +18 dBm，動態範圍高達 65dB，為電池供電訊號產生器定義了新標準。得益於內部 TCXO 時基，BPSG 可產生高達 6 GHz 的穩定且精確的射頻頻率。BPSG 也可連接外部參考原子鐘，以同步測量系統。 此外，還可以透過這種方式（使用 OCXO、銣原子時鐘基準等）來實現更高的精度。

功能特點

• 頻率範圍：  23.5 MHz 至 6 GHz。
• 輸出功率高達 18 dBm（SMA 公頭）。
• 最低功率等級： -45 dBm。
• 高達 63 dB 的動態範圍。
• 頻率精度：1Hz (<600 MHz) 以及 2 0Hz (>600 MHz)。
• 調製：AM、FM、PM。
• 機載 TCXO ，可實現最高頻率精度。
• 可透過 SMA 連接器（母頭）連接外部參考原子鐘，以獲得更高精度。
• 用於智慧型「自運行」設定檔的機載 CPU 和記憶體。
• 獨立操作（無需 PC 或 USB 連接）。
• 電池工作時間長達 4 小時。
• 用於即時 PC 控制或儲存程序的 USB 埠。
• 隨附 12V 充電器，便於隨時充電。
• 亦可透由汽車點煙器上的 12V 轉接器（選配）充電。
• 外型非常小巧，僅 80x50x30 mm。
• 重量輕，包括電池僅 150 g

The extremely compact signal generators of the BPSG series offer an unprecedented mix of performance, functionality and design in their price category. The extremely high output level of up to +18 dBm for the design as well as the dynamic range of up to 63 dB are among the strengths of these devices.


Description

The BPSG generators allow the generation of RF signals, test of shielding measures and RF/EMC tests. Available in 4 different versions, the generators cover a frequency range from 23.5 MHz to 6 GHz. With very compact dimensions of only 80 x 50 x 30 mm and a weight of only 150 grams, the BPSG series is predestined for mobile use and fits in any pocket. The compact form factor makes the BPSG the world's smallest battery powered RF generator up to 6 GHz. Many Aaronia antennas can be expanded together with the BPSG into an active field strength generator in a few simple steps. In standalone mode, the generator can run simple or very complex batch programs that start automatically after power-on. This function allows the generation of a fixed frequency and level or the start of a predefined sweep, complex frequency lists, modulations, etc. With a maximum output of +18 dBm and a dynamic range of up to 65dB, the BPSG sets new standards for battery-powered signal generators. Thanks to the internal TCXO time base, the BPSG generates a stable and accurate RF frequency up to 6 GHz. The BPSG can also be connected to an external reference clock to synchronize a measurement system. In addition, even higher accuracy can be achieved this way (use of an OCXO, rubidium time base, etc.).


Features

• Frequency range: 23.5 MHz to 6 GHz
• Up to 18 dBm output power (SMA male)
• Lowest power level: -45 dBm
• Up to 63 dB dynamic range
• Frequency accuracy: 1Hz (<600 MHz) as well as 2 0Hz (>600 MHz)
• Modulations: AM, FM, PM
• Onboard TCXO for highest frequency accuracy
• Can be connected to external reference clock for even higher accuracy via SMA connector (female)
• Onboard CPU and memory for intelligent "self-running" profiles
• Stand-alone operation (no PC or USB connection required)
• Battery operation up to 4 hours
• USB port for real-time PC control or to store programs
• 12V charger included for unlimited operation
• Can be charged via 12V adapter (optional) at car cigarette lighter
• Very small form factor, only 80x50x30 mm
• Very light, only 150 g incl. battery
