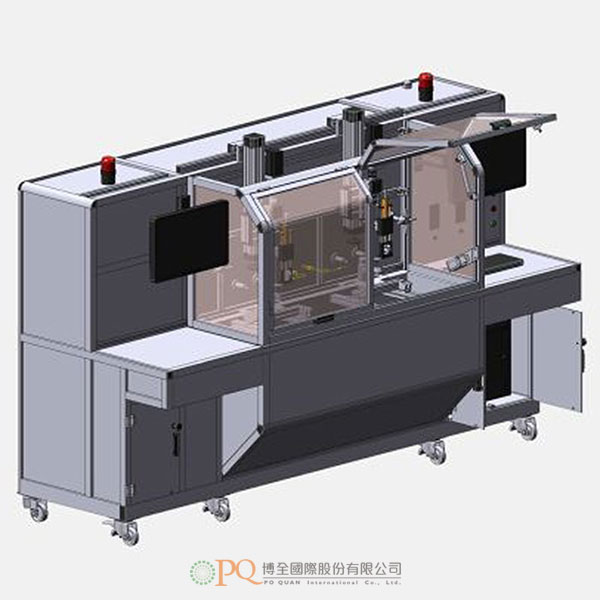

ENDURANCE TEST BENCHES

Test benches for endurance tests on single lever mixers, swivel spouts, thermostatic mixers, single taps, diverters and shower mechanism.

The test benches are equipped with linear motor and rotary motor in order to verify the mechanical resistance and the endurance of many type of component under test.
All the parameters (number of cycles, temperature, pressure, flow-rate, force, torque, angular speed and linear speed) are controlled according the main International standards. All the benches are equipped with a dedicate Aq2tb software for the automatic execution of the tests.

• Flow-rate:47+47 L/min
• Adjustable flowing pressure:0,1 - 10 bar
• Maximum static pressure:48 bar
• Force:1 - 44 N
• Torque:1 - 10 Nm
