FLOW RATE TEST BENCHES

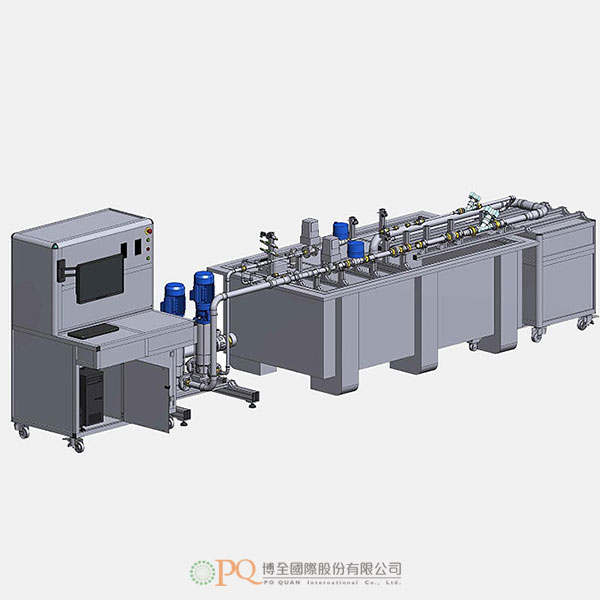

Hydraulic test bench for flow-rate tests with open drain and Kv coefficient calculation.

The BPF-Q series hydraulic benches are suitable to perform differential pressure tests for the calculation of Kv coefficient: the hydraulic plant is designed according to the Standard and a dedicated software permits to measure the pressure drop due to the components under tests subtracting the contribution of the test rig.

It is also possible to perform flow-rate tests with open drain with automatic linear increase of pressure.

• Flow-rate range: 1,5-295 L/min
• Maximum pressure at 300 L/min: 4 bar
• DN25 and DN10 measurement lines
