落球撞擊試驗機

• 關鍵組件具備防鏽蝕設計。
• 獨特的球軌設計。
• 下落高度達 100 公分（40 吋）。
• 撞擊能量範圍廣，從 67 mJ 到 5329 mJ。

• AOP 7 Ed.2; 201.01.002。
• MIL-STD 1751A,Method 1016

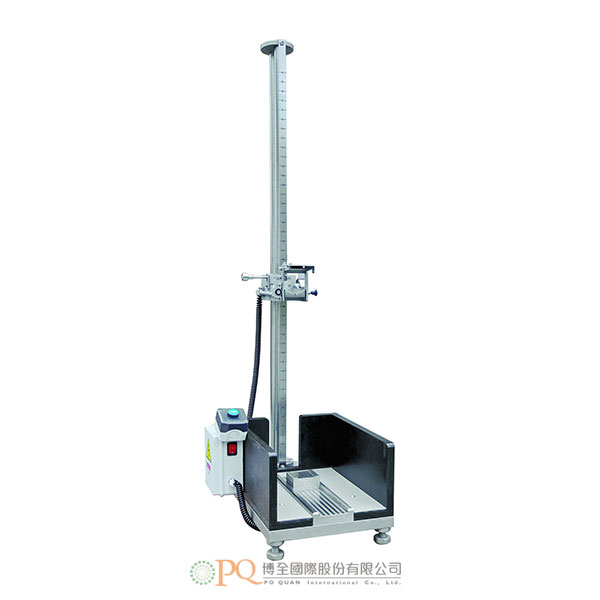

The Ball Drop Impact Test BIT 132 is designed to determine the impact sensitivity of various types of energetic materials ranging from the most sensitive primary explosives to less-sensitive high explosives and pyrotechnic mixtures. It uses steel balls with diameters from 0.5 inch (8.35 grams) to 2 inches (534.7 grams) as the drop weights.

ADVANTAGES & FEATURES

• Entire corrosion-proof design
• Unique design of the ball track
• rop height up to 100 cm (40 inch)
• Wide range of impact energies from 67 mJ to 5329 mJ
• Wide range of accessories

COMPLIANCE

• AOP 7 Ed.2; 201.01.002
• MIL-STD 1751A, Method 1016
