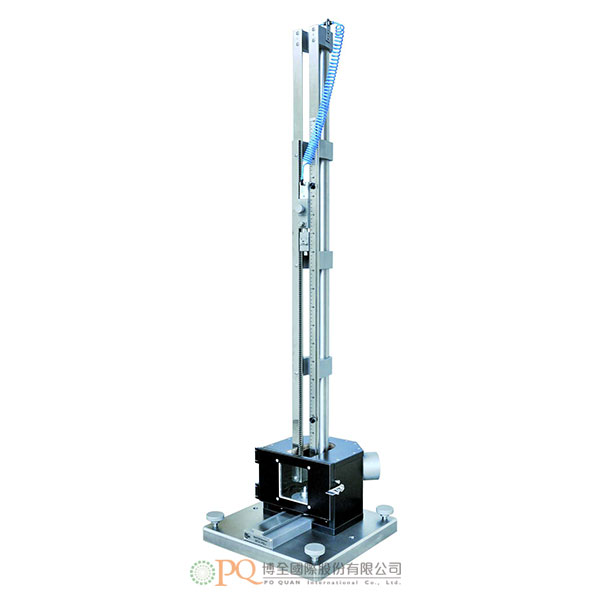

高敏感材料撞擊靈敏度測試儀

BFH PEx 專為依照 BAM 程序測試高敏感材料（如一級炸藥和煙火）的撞擊敏感度而設計。

應用

縮小尺寸的 BAM 落錘機型 - BFH PEx 特別適用於測試最敏感的高能量材料，這些材料的衝擊靈敏度超出了標準 BAM 落錘的範圍。同時，BFH PEx 在設計時特別強調要最大限度地保障操作者的安全。

優勢和特點

• 關鍵組件具備防鏽蝕設計。
• 撞擊能量範圍廣，從 0.025 焦耳到 20 焦耳不等。
• 落錘重量套件組 - 從 25 克到 2,000 克不等的六種落錘。
• 電磁或氣動釋放裝置，可從指定的高度自由落下，保證測試結果的準確性和代表性。
• 無電鍍鎳的導軌，可有效減少滑動摩擦。
• 保護罩為標準配件。
• 高品質的耗材，價格實惠。

符合
AOP 7 Ed.2; 201.01.005。

The BFH PEx is designed especially for determination of impact sensitivity of highly sensitive materials such as primary explosives and pyrotechnics in accordance with the BAM procedure.

APPLICATIONS

Reduced-size BAM Fall Hammer BFH PEx is especially suitable for testing the most sensitive energetic materials whose impact sensitivity is out of the range of the standard BAM Fall Hammer.
The BFH PEx has been designed with special emphasis to the maximum operator’s safety.

ADVANTAGES & FEATURES

Entire corrosion-proof design
Wide range of impact energies from 0.025 J to 20 J
Six Drop Weights spanning from 25 grams to 2,000 grams
Electromagnetic or Pneumatic Releasing Device for the remotely controlled release of the drop weight
Electro-less nickel-plated guide rails to reduce sliding friction
Protective Housing as a standard accessory
Wide range of accessories
Premium quality consumables at affordable prices.

COMPLIANCE
AOP 7 Ed.2; 201.01.005
