高壓炸彈量熱儀

BCA® 500 是市面上唯一一款用於高能量材料燃燒（爆燃）量熱的單一儀器解決方案。它具有極高的解析度、電子校正、高壓測量、計量溯源、半自動操作、耐用結構、簡單易用的設計理念以及帶有整合式冷水機組的一體式設計。

應用

BCA 500 非常適合對高能量炸藥或推進劑的研究、開發、製造和使用監控過程中的燃燒熱特性進行進一步計算，也可用於對各種燃料（煤炭、木材等）進行性能鑑定。

BCA 500 的精度和性能使其能夠以最高標準用於品質控制系統和研發應用。BCA 500 通常是煤礦、發電廠和炸藥生產廠不可或缺的設備。
BCA 500 配件和耗材的客製化設計為任何應用（尤其是燃料和高能量材料產業）提供了出色的解決方案； 但是，請注意 BCA 500 並非設計用於在爆炸狀態下測試材料。


	優勢和特點 溫度測量系統具有出色的解析度。 可選配電子校正系統。 結果再現性低至 0.1%。 BCA 500 無需持續供水，所有製程用水都儲存在內膽中。 具備兩個水箱進行不間斷測試，可縮短操作時間。 整合式冷水機組的先進水管理，可提供精確的劑量和調節。 易於操作的介面，帶有液晶觸控螢幕。 全自動資料蒐集、評估和管理。 操作直觀，無特殊人員要求。
BCA 500 EX 和 DC 炸彈型裝置分別用於低壓和高壓燃燒

符合

• AS 1038.5
• ASTM D240
• ASTM D4809
• ASTM D5468
• ASTM D5865
• ASTM E711
• CSN EN 14918
• DIN 51 900
• IS 1350-2
• ISO 1928
• JIS M 8814
• MIL-STD-286C

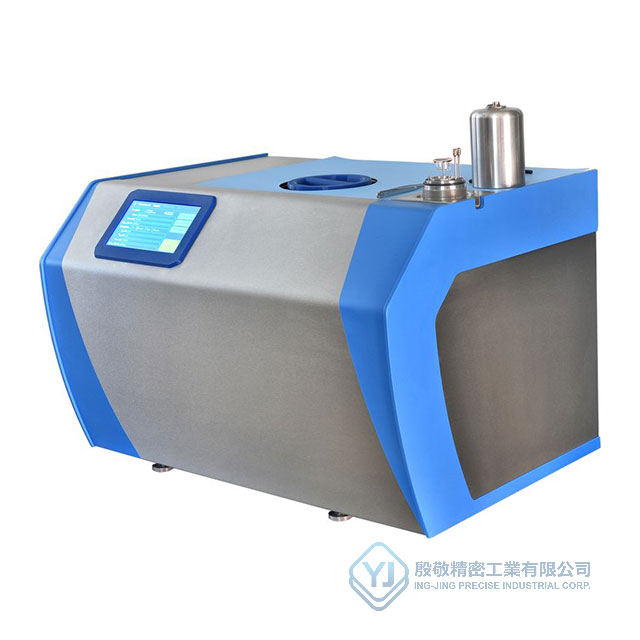

The BCA® 500 is the only single-instrument solution for the combustion (deflagration) calorimetry of energetic materials on the market. It offers superb resolution, electronic calibration, high pressure measurement, metrological traceability, semi-automatic operation, durable construction, easy to use concept and one-box design with an integrated water cooler.

APPLICATIONS

The BCA 500 is well suited for the combustion heat characterization needed for further performance calculations of high explosives or propellants in their research, development, manufacture and in-service surveillance and as well can be used for performance characterization of various fuels (coal, wood etc.).
The BCA 500’s precision and performance allow it to be used in quality control systems and in research and development applications with the highest criterion. Typically, coal mines, power plants and explosive production plants find the BCA 500 indispensable.
The tailored design of the BCA 500’s accessories and consumables provide an excellent solution for any application especially in the industries of fuels and energetic materials; however, please note the BCA 500 is not designed for the testing of materials in a detonation regime.


ADVANTAGES & FEATURES Superb resolution of temperature measurement system Optional electronic calibration system Results reproducibility as low as 0.1 % The BCA 500 needs no continuous water supply – all process water is stored inside inner tanks Two tanks allow for non-stop testing thereby reducing the operation time Advanced water management with integrated chillers provides precise dosing and conditioning Easy to operate interface with LCD touch screen Fully automated data acquisition, evaluation and management. Intuitive operation with no special personnel requirements

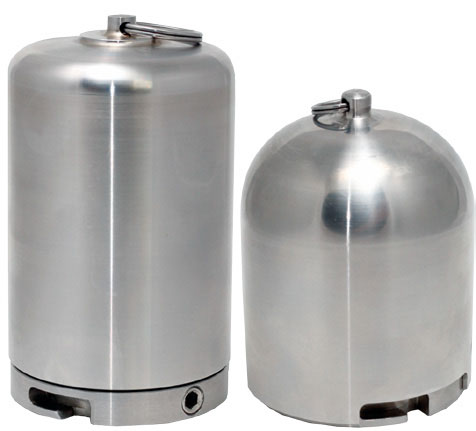

BCA 500 EX and DC bombs for low and high pressure combustion respectively

 COMPLIANCE

• AS 1038.5
• ASTM D240
• ASTM D4809
• ASTM D5468
• ASTM D5865
• ASTM E711
• CSN EN 14918
• DIN 51 900
• IS 1350-2
• ISO 1928
• JIS M 8814
• MIL-STD-286C
