平衡應用程式

BALANCER APP 型號：BALANCER APP

基本的轉子平衡，也就是所謂的原位平衡，現在可以讓更多人使用。
要使用應用程式執行平衡，您最好擁有一些振動計（例如 Adash 的 A4900 Vibrio）。但是如果您沒有也不用擔心。您只需使用智慧型手機即可進行平衡！免費下載應用程式並開始使用。

加入洽詢

產品特點 Features

平衡應用程式
免費平衡應用程式

旋轉設備上的轉子、風扇、葉輪等的平衡對於工廠的可靠運作非常重要。平衡是基於振動診斷的機器狀態監測和預測性維護的重要組成部分。

什麼是不平衡？平衡器應用程式

想像一下您的洗衣機在脫水時的情形。如果衣物僅位於洗衣機滾筒的一部分，則會產生離心力。這會導致洗衣機滾筒不平衡，從而引起高振動。同樣的問題也發生在風扇、鼓風機等工業機器上。這類機械的不平衡是個大問題，因為高振動會縮短其壽命。不平衡會導致機械損壞、意外故障以及生產成本的損失。平衡是機械維護的重要部分，而 Adash Balancer App 即使使用簡單的振動計也能執行平衡。

您的問題真的是不平衡嗎？
平衡器應用程式

在平衡之前，您需要檢查您的機器是否真的有不平衡的問題。不平衡的特徵是在速度頻率上有較高的振幅。進行 FFT 測量。這是Vibrio 裝置的第三個測量畫面。如上圖所示，您應該只在速度頻率上看到一個高的峰值。其他頻率上應該沒有任何峰值。如果在其他頻率上有峰值，則機器的問題並非不平衡。

更多應用影片

BALANCER APP
Free Balancing Application

Basic rotor balancing so called in-situ balancing is now accessible to wider public. To perform balancing with the app you should ideally have some vibration meter (such as A4900 Vibrio from Adash). But don't worry if you don't have it. You can perform balancing just with your smart phone! Download the app for free and get started.

Balanced rotor, fan, impeller etc. on rotating equipment is very important for reliable factory operation. Balancing is important part of machine condition monitoring and predictive maintenance based on vibration diagnostics.

WHAT IS UNBALANCE?
Balancer App

Imagine your washing machine during clothes spinning. Centrifugal force exists if the clothes are situated just on one part of the washing machine drum. This leads to unbalance of the drum which causes high vibrations. The same problem occur on industrial machines such as fans, blowers etc. Unbalance of such machinery is a big trouble because high vibrations shortens its life time. Unbalance leads to mechanical damages, unexpected break downs and lost of money on production. Balancing is important part of machinery maintenance and Adash Balancer App is able to perform balancing even with simple vibration meter.

Is your problem really the unbalance?
Balancer App

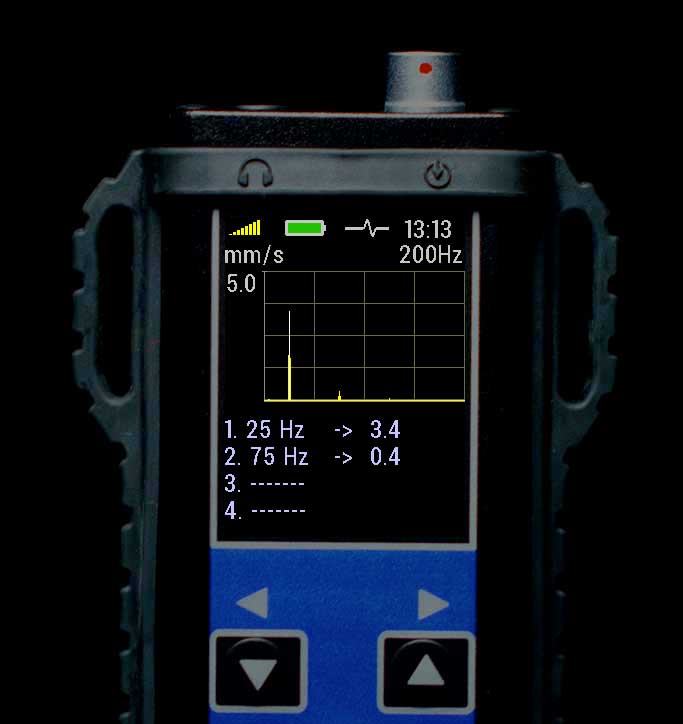

Before balancing you need to check if the problem of your machine is really unbalance. Unbalance is characterized by high vibration amplitude on the speed frequency. Take the measurement of FFT. It is third measurement screen in the Vibrio device. You should see only one high peak on the speed frequency as per picture above. There should not be any peaks on other frequencies. Problem of the machine is not unbalance if there are peaks on other frequencies. Balancing of machines with other problems would not give you satisfying result.
